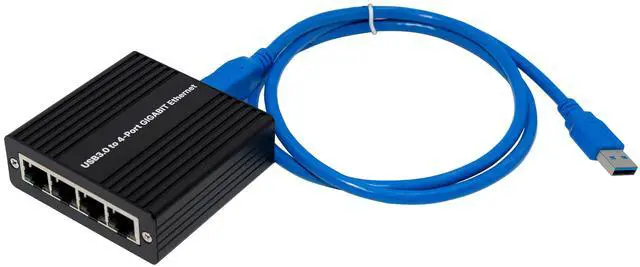

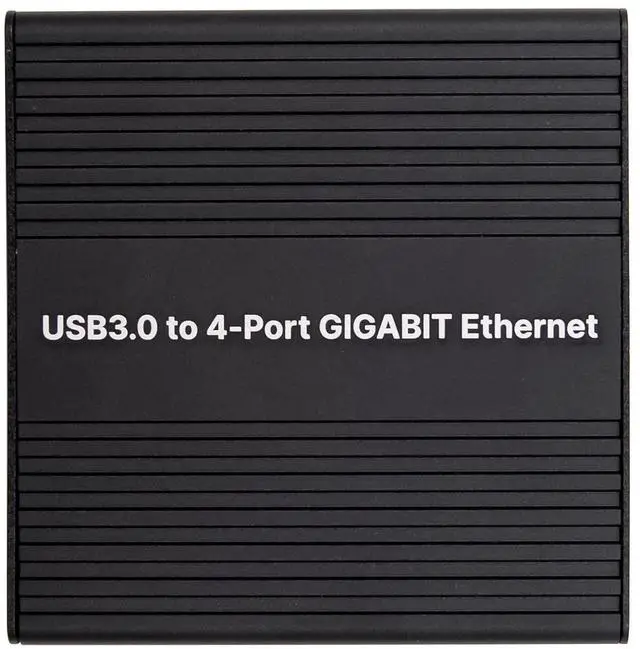

JVFYI USB3.0 RTL8153 Quad-Port Gigabit Network Adapter

Integrates on-chip USB3.0 PHY and controller compliant to USB Spec 3.0,2.0 and 1.1

Supports USB Super/High/Full Speed modes with Self-Power device auto-detect capability

Support Quad port Gigabit ethernet

Supports IEEE802.3az (Energy Efficient Ethernet)

IEEE802.3, IEEE802.3u, and IEEE802.3ab compatible

Integrates 10/100/1000Mbps Gigabit Ethernet PHY

Supports crossover detection and auto-correction

Supports power down/link down power saving

Microsoft NDIS5,NDIS6 Checksum Offload (IPv4,IPv6,TCP,UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support

Supports TCP Large Send Offload V1

Supports full duplex operation with IEEE802.3x flow control

Supports IEEE802.1P Layer 2 Priority Encoding and Decoding.

Supports IEEE802.1Q VLAN tagging

Supports IEEE1588V1,V2 and compliant with IEEE802.1AS

IEEE1588 clock synchronization

Supports jumbo frame to 9K bytes

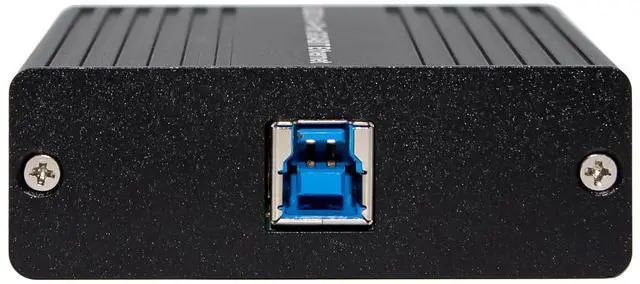

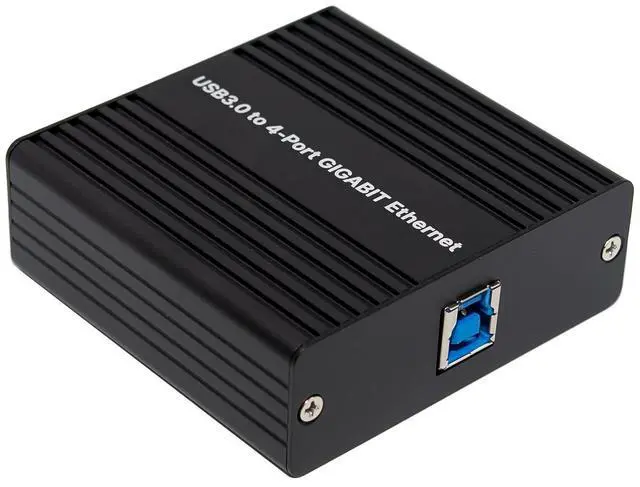

Upstream port: USB3.0 type B

Chipset: Realtek RTL8153B & VL820

Supports Operating systems: Linux 2.6.x~4.x,Mac OS 10.6 and above, Windows CE/XP/Win7/Win8/Win8.1/Win10/Win11 and etc

Function Table

Product Name USB3.0 RTL8153 Quad-Port Gigabit Network Adapter

Upstream type USB3.0 TYPE B

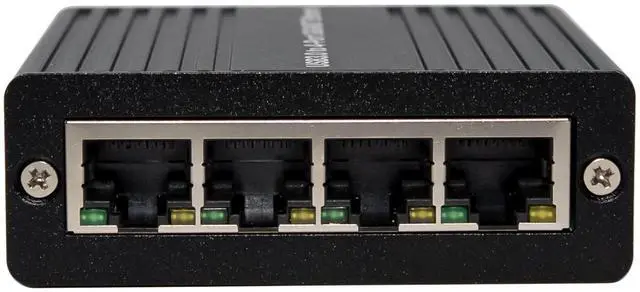

Downstream type 4-RJ45

USB3.0 Transmission speed 5Gb/s

USB compatible USB3.0/USB2.0/USB1.1

Network transmission speed 1000M/100M/10Mbps

Network protocol IEEE802.3az, IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.1P Layer 2, IEEE802.1Q, IEEE802.3x, IEEE1588v1, IEEE1588v2, IEEE802.1as,

LED indicator support

Power Consumption Max 5W

Operation temperature 0~70

Storage temperature -55~125

Hardware size 73*70*25mm

Operation system Linux 2.6.x and above

Windows Client : XP/Win7/Win8 /Win8.1/Server2012/Win10/Win11

Windows Server: Server2008 R2/Server2012/server2016/server2019/ server2022

MAC OS 10.6 ~10.13

Package content

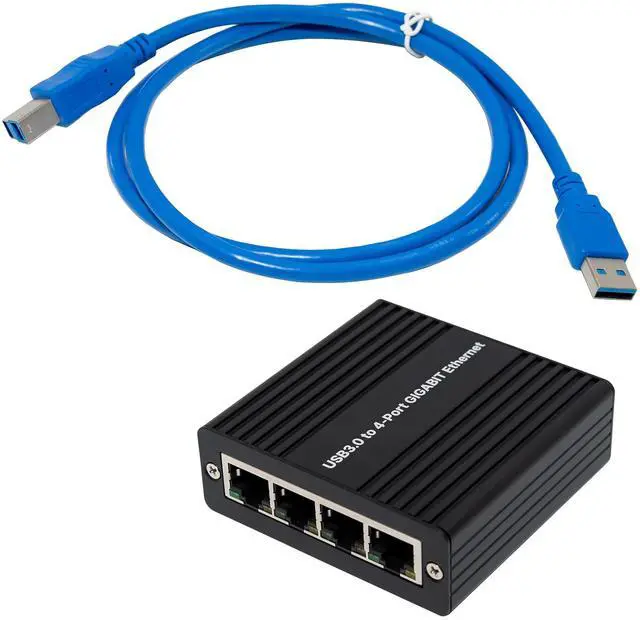

1 x USB3.0 RTL8153 Quad-Port Gigabit Network Adapter

1 x Users Manual

1 x CD

1 x USB3.0 type-B cable

System Requirements

Linux 2.6.x and above

WindowsClient :XP/Win7/Win8 /Win8.1/Server2012/Win10/Win11

WindowsServer:Server2008 R2/Server2012/server2016/server2019/ server2022

MAC OS 10.9 and above

One available USB3.0 TYPE A slot

Hardware installation

1.Turn on the computer and get it into the system

2.Plug the USB3.0 adapter into your computers USB port

3.Insert the network cable into the RJ45 port

Install Drivers and software

Windows Operating Systems

For Windows XP/Vista/Win7/Win8/Win8.1/Win10

Please plug the USB3.0 network adapter into your computers USB port, at the same time the computer system will recognize a new drive disk, Double-click the drive disk, and the system will start and finish the driver installation automatically(if the driver does not installed, please right-click open to Brower drive disk file, and double-click RTK_NIC_DRIVER_INSTALLER,sfx.exe). The drive disk will disappear after the driver is installed successfully.

Note:*If the driver still installed failure, please follow below process to complete install:

1.Please place the product CD drivers into the drive

2.Find the driver files corresponding to the system

3.Double click Setup.exe to begin installing

4.Follow the steps prompted by the program until the installation is complete

To Verify Windows® Driver Installation

Click on the Device Manager tab in System Properties, which you access from the Windows Control Panel. If you has installed successfully, you should see Realtek USB GbE Family Controllerinstalled under Network Adapter item.
