JVFYI PCIe ASM1061 mSATA NGFF 6Gbps Expansion Card

Meets PCI Express Base Specification

One lane PCI Express for 2.5 and 5Ghz signaling

Two ports Serial ATA PHY for 1.5,3.0 and 6Gbps

Drivers support for LinuxbaseOS ,MAC 10.8-10.9,WinXP/Server2003/Vista/Win7/ Server2008/Win8/ Win8.1 /win10, 32 or 64bit

PCI Express Interface:

PCI Express Base Specification Rev.2.0

One lane PCI Express for 2.5 and 5Ghz signaling

Maximum payload up to 128 bytes

SATA interface:

Serial ATA AHCI spec,Rev.1.3

Serial ATA Revision 3.0

Serial ATA Data transfer rates up to 6Gbps

Downstream SATAII.SATAI

Support Gen1m and Gen2m SATA PHY

Support Native Command Queue(NCQ)

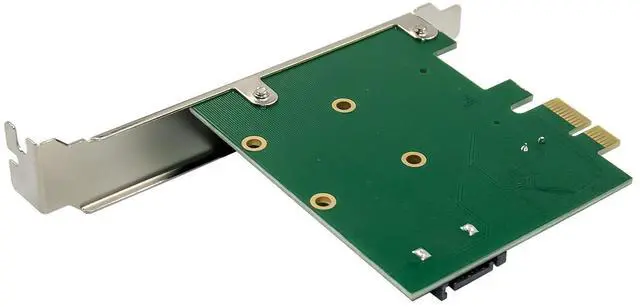

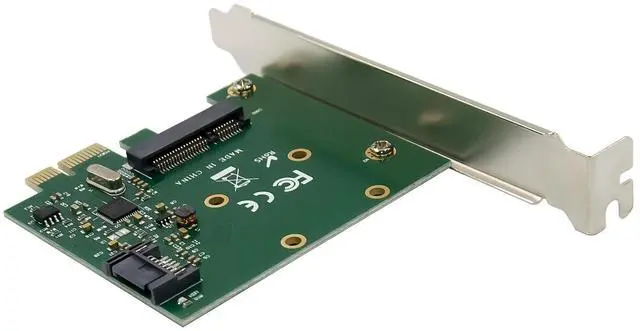

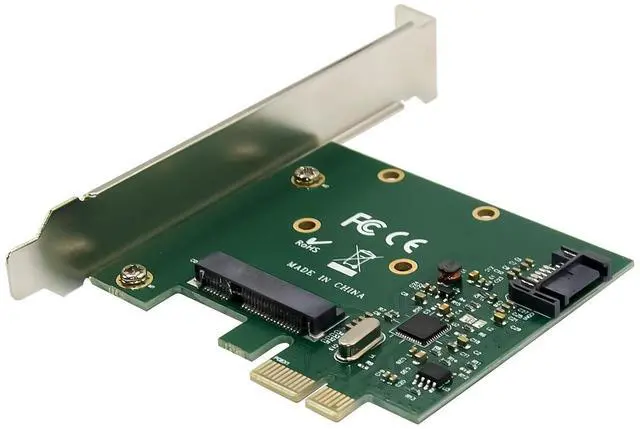

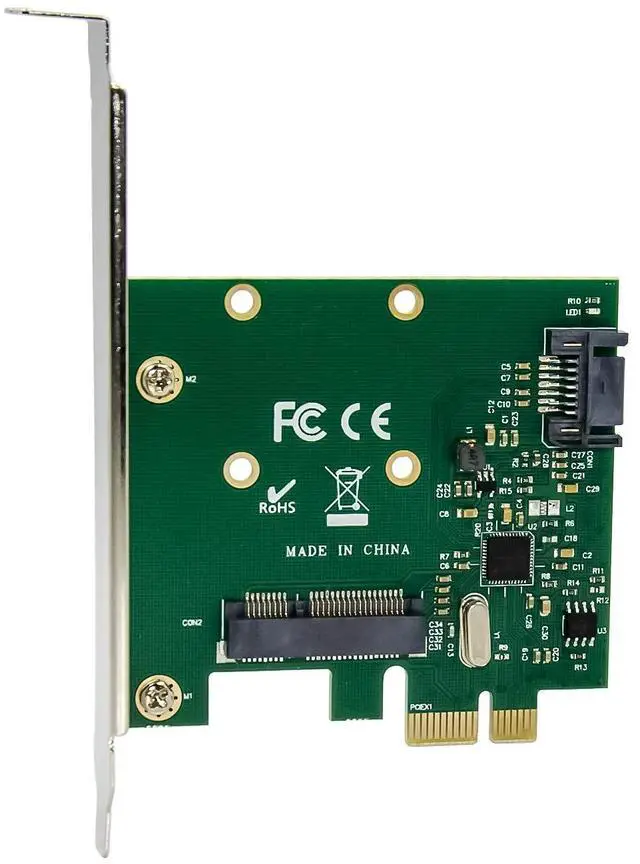

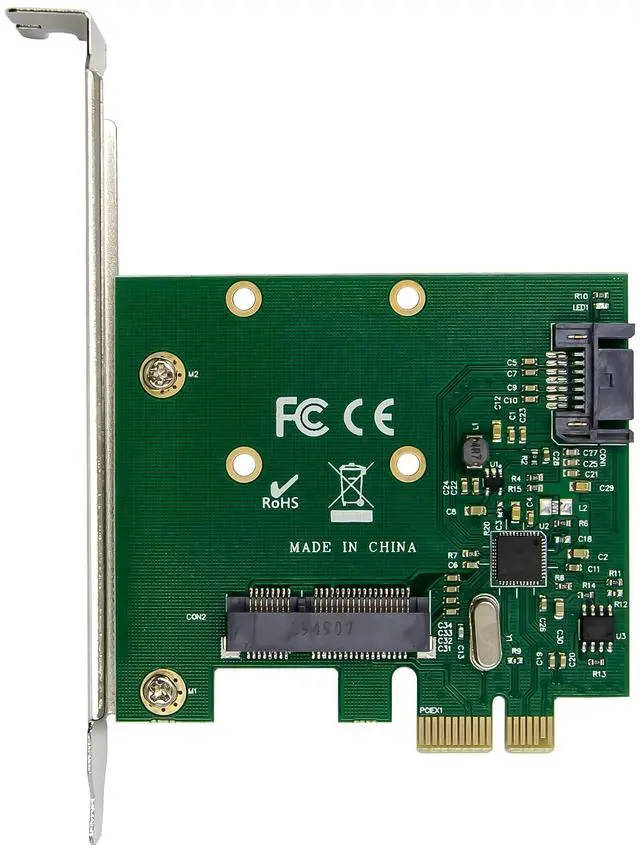

1 x7pin SATA port, 1 x mSATA half/full size port

Chipset: ASMedia/ASM1061

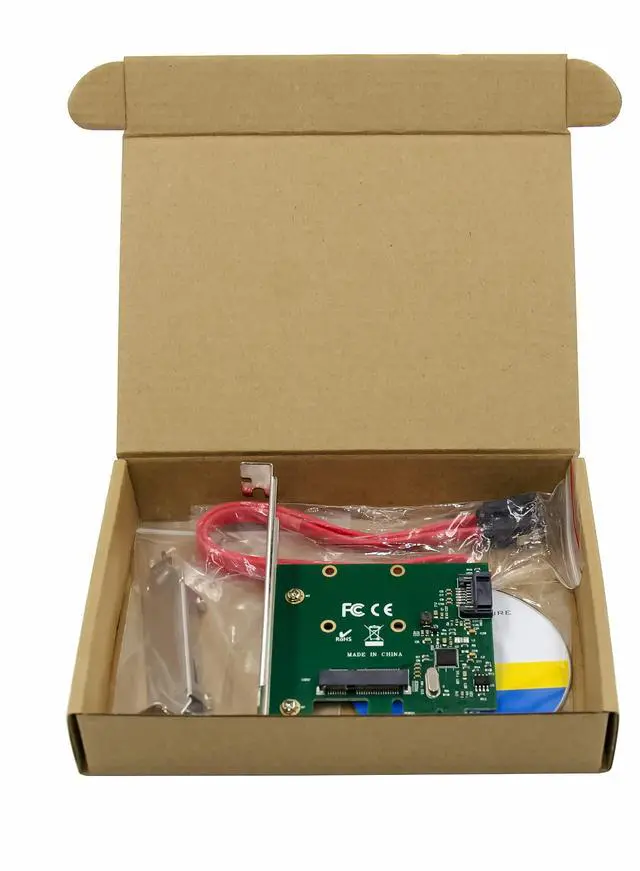

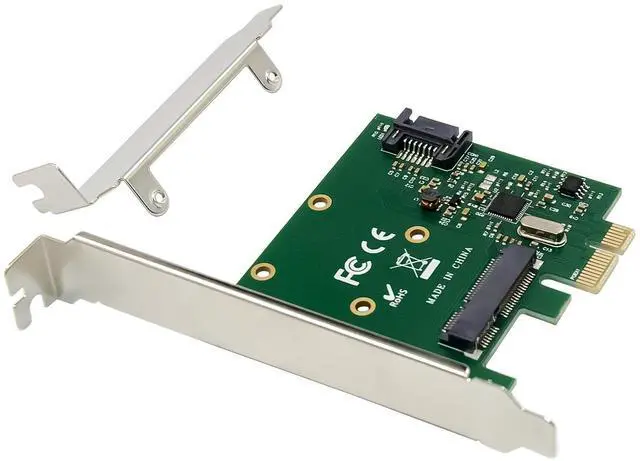

Package content

1 x PCIe ASM1061 mSATA &SATA 6Gbps Expansion card

1 x Users Manual

1 x SATA cable

1 x driver CD

System Requirements

LinuxbaseOS,MAC 10.8-10.9,WinXP/Server2003/Vista/Win7/ Server2008/Win8/ Win8.1 /win10, 32 or 64bit

One available PCI Express x1/x4/x8/x16 slot

Hardware Description:

Hardware installation

1.Turn off the power to your computer.

2.Unplug the power cord and remove your computers cover.

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis.

4.To install the Msata SSD, Rotate module to 25. Insert it until the board surface reaches the ramp figure2,3

5.Rotate the board to horizontal position, see figure 4.

6.Fix the board by screw, see figure5

7.Attach your internal device to the SATAIII controller card

8.Replace the computer cover and reconnect the power cord

Install Drivers and software

Windows Operating Systems

For Windows XP,SERVER2003,Vista,SERVER2008,Win7 System Operating.

1.Install the Product into your computer.

2.Please insert the CD driver bound into your CD-ROM Drive.

3.Open WINDOWS explorer and double-click the CD drive to find the driver for the corresponding product.

4.Type D:\ ASM1061 \Setup.exe, click OK. (Change D: to match your CD-ROM drive letter)

5.Follow the on-screen instructions to complete the installation.

For Windows Win8,Win8.1,Win10 System Operating.

Just used windows box driver to auto installed, no need any other drivers
