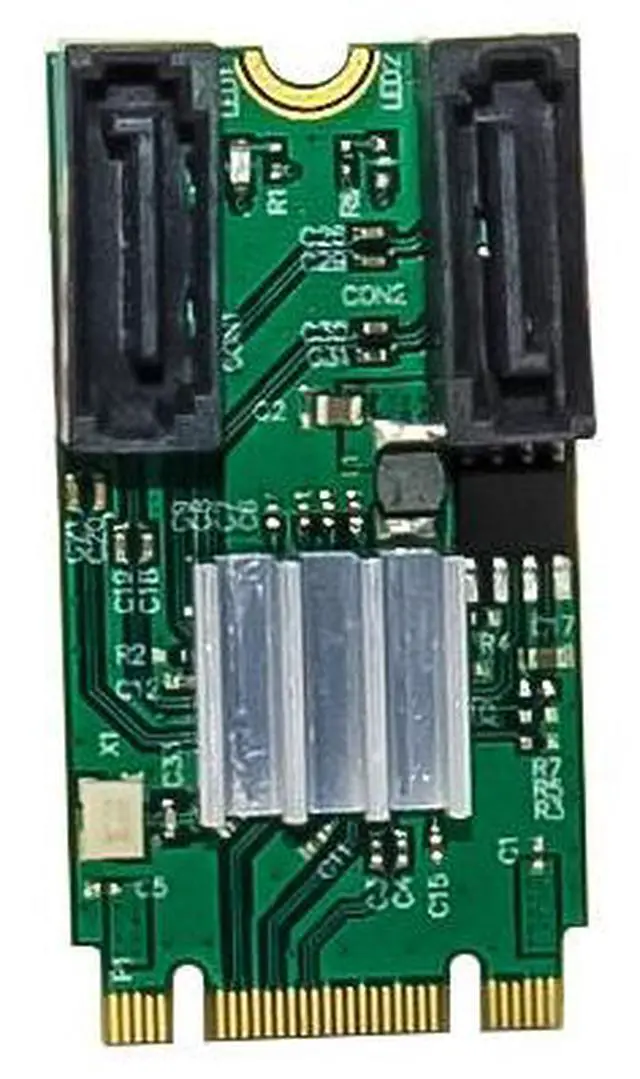

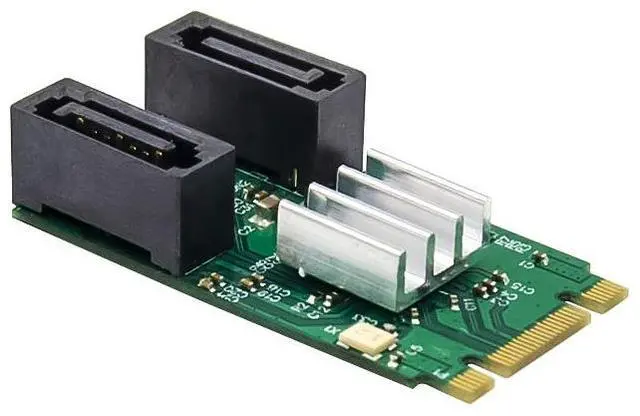

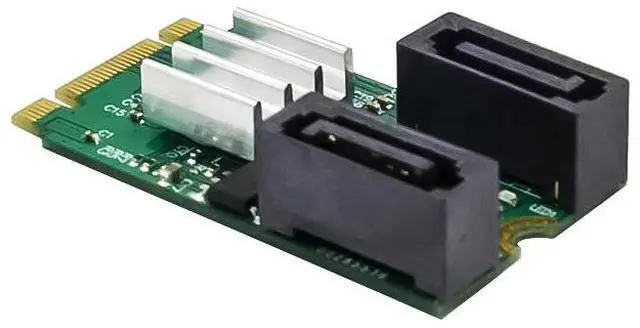

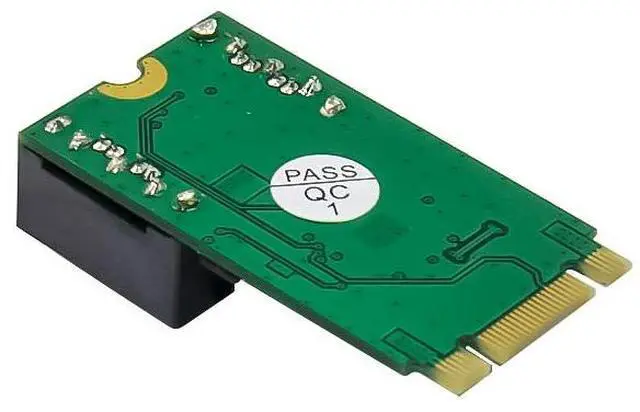

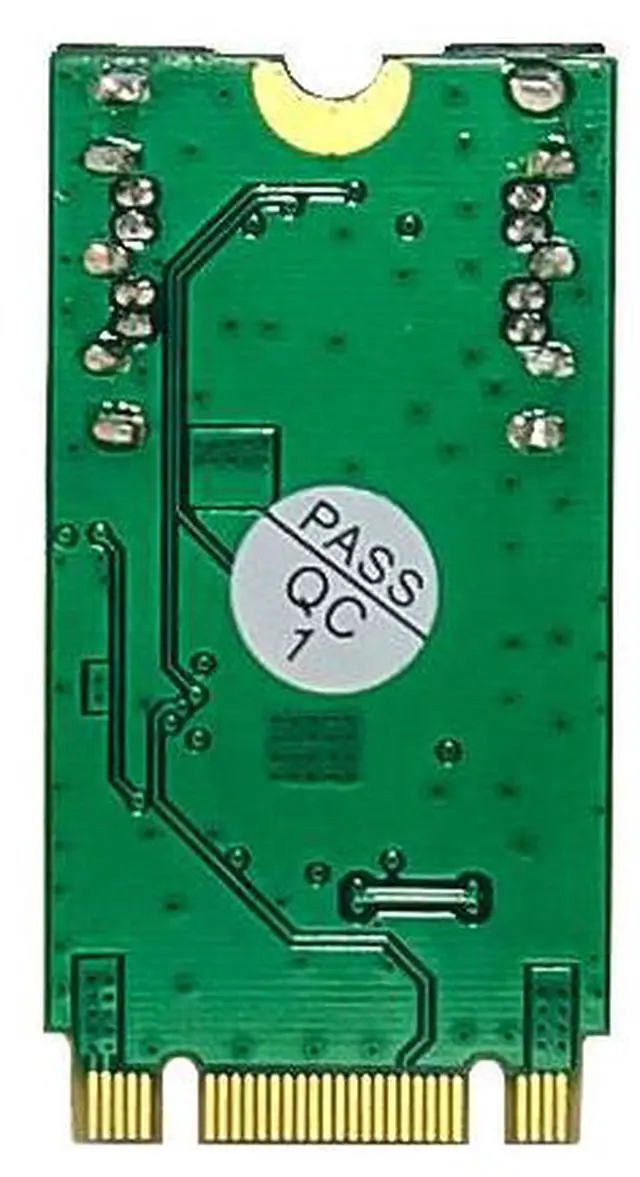

JVFYI M.2 B+M ASM1061 2-Port SATA 6G Expansion Card

M.2 B+M KEY

Compliant with PCI Express Specification V2.0 and backward compatible with PCI Express 1.x

Compliant with Serial ATA Specification v3.0

Supports four SATAIII port

Supports communication speeds of 6Gbps,3Gbps, and 1.5Gbps

Hot Plug and Hot Swap

Support Native Command Queue (NCQ)

Support Port Multiplier, not supported RAID function

Compatible with SATA6G,3G and 1.5G hard drives

Drivers support for Linux, Windows XP/Server 2003/Vista/Win7/server2008/ Win8/Win8.1/ win10

Package content

1 x M.2 2-Port SATA 6G Expansion card

1 x Users Manual

1 x CD

1 x Low profile bracket

System Requirements

Linux-based OS 2.6.20 and above

Win7/Vista/Win8/Win8.1/Win10 32/64bit

Win Server2003,2008,2012,2016

Mac OS 10.3 or later version

An available M.2 B/M KEY Slot

Hardware installation

1.Turn off the power to your computer

2.Unplug the power cord and remove your computers cover

3.Locate to an empty M.2 B/M KEY slot on the motherboard, Move the board against the housing chamber, see figure 1

4.To install the board, Rotate module to 25. Insert it until the board surface reaches the ramp figure2,3

5.Rotate the board to horizontal position, see figure 4.

6.Fix the board by screw, see figure5

7.Attach your internal device to the SATAIII controller card

8.Replace the computer cover and reconnect the power cord

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with M.2 ASM1061 SATAIII 2-Channel expansion card driver into your CD-ROM drive:

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.locate the folder where the driver is located

4.double click setup.exe to run install program.

5.Follow the instructions in the install wizard to complete the driver installation.
