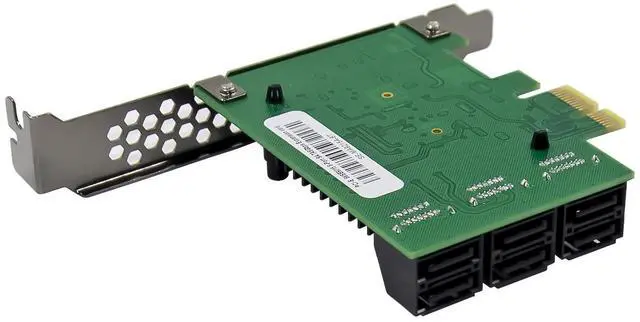

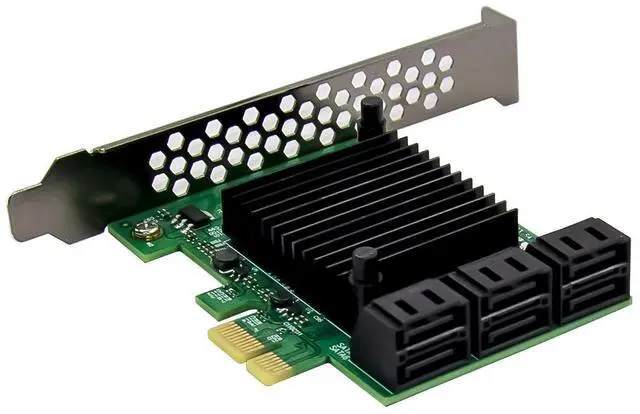

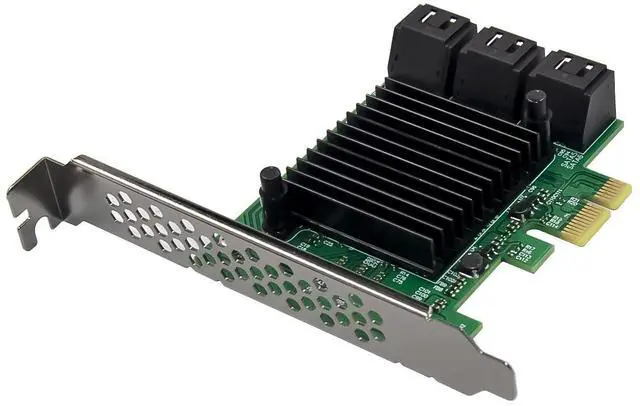

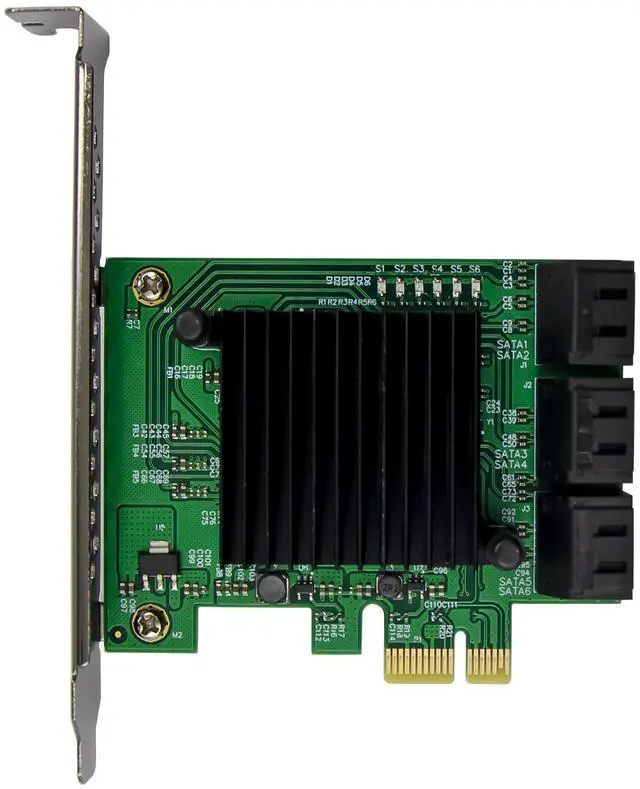

JVFYI PCIe 88SE9215 6-Port SATA 6Gbps Expansion CARD

Compliant with PCI-Express Specification V2.0 and backward Compatible with PCI-Express 1.x

Compliant with Serial ATA Specification 3.0

PCI Express x1 interface and compatible with PCI Express x1X4, X8 and X16 slots

Supports communication speeds of 6Gbps,3Gbps,1.5Gbps

Hot plug and Hot Swap

Support Native Command Queue (NCQ)

Support Port Multiplier FIS based switching or command-based switching

Compatible with SATA6G,3G and 1.5G hard drives

Chipsets: 88SE9215 + ASM1093

Drivers support for Window XP/VISTA/Win7/Win8/Server2003/server2008 R2,Linux2.6.x and above

Note: it required installed 88SE9215 driver to enable multi-port functionality

Package content

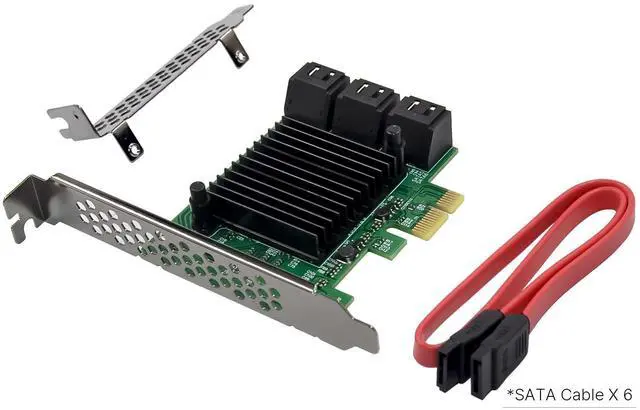

1 x PCIe Marvell 88SE9215 6-SATA 6Gbps expansion CARD

1 x Users Manual

6 x SATA Cable

1 x CD Driver

1 x Low profile bracket

Accessories

System Requirements

Supports windows xp /Vista/Win7/Win8/Server2003/Server2008 R2.Linux2.6.x and above

One available PCI Express x1/x4/x8/x16 slot

Hardware installation

1.Turn off the power to your computer

2.Unplug the power cord and remove your computers cover

3.Locate TO an empty PCI Express x1/x4/x8/x16 slot on the motherboard.

4.To install the board, carefully align the cards bus connector with the selected PCI-E slot on the motherboard. Push the board down firmly

5.Attach your internal device to the SATAIII PCI-E controller card

6.Replace the Slot brackets holding screw to secure the card

7.Replace the computer cover and reconnect the power cord

Driver installation

For Windows Vista, Server 2008, Win7, Win8, server 2008 R2 Operating Systems:

1.Start windows and insert the driver CD into the CD-ROM drive, assume drive A.

2.Windows will automatically detect the SATA card, Right-click Marvell console ATA Device with yellow mark in the Other Devices and select Update Driver Software.

3.Select Browse my computer for driver software

4.Browse to the following folder on the driver CD according to your operating system:

-windows vista, server2008, windows7, windows 8 32-bit:

A:\2010A2\Marvell\92xx\windows vista_2008_7_8\i386

-windows vista, server 2008, windows7, windows8 64-bit and server 2008 R2:

A: \2010A2\Marvell\92xx\windows vista_2008_7_8\amd64

5.Follow the on-screen instruction to install the driver.

6.After successful installation, the device is list in the Device Manager as Marvell unify configuration (under system devices)

For Windows XP, SERVER 2003 operation system:

1.Start windows and insert driver CD into the CD-ROM drive, assume drive A

2.Windows will automatically detect the SATA card, select No, not this time and click the NEXT button to continue

3.Select install from a list or specific location (Advance) and click on the Next button.

4.Browse to the following folder on the driver CD according to your operating system:

-Windows XP 32-bit and Server 2003 32-bit

A:\2010A2\Marvell\92XX\Windows2003_XP\i386

-Windows XP64-bit and server2003 64-bit:

A:\2010A2\Marvell\92XX\Windows2003_XP\amd64

5.Follow the on-screen instruction to install the driver.

6.After successful installation, The SATA controller is listed in the Device Manager as Marvell 92xx SATA 6G controller (under SCSI and RAID controllers)

7. For this controller an additional device Marvell Console SCSI Processer device is detected, select "No, not this time" and click the next button to continue

8. Select "install form a list or specific location (Advance)" and click on the Next button.

9. Browse to the following folder on the driver CD according to your operating system:

-Windows XP 32-bit and Server 2003 32-bit:

A:\2010A2\Marvell\92xx\Windows2003_xp\i386

-Windows xp 64-bit and server2003 64-bit:

A:\2010A2\Marvell\92xx\Windows2003_xp\amd64

10.follow the on-screen instruction to install the driver.

11. After successful installation, the device is listed in the Device Manager as Marvell Unify configuration (under system devices)

12.Once driver installation is completed, you can now connect your external devices to the SATA card. To install the driver for the external devices, please refer to the external device users manuals.

For Linux OS

Linux distributions contain Inbox drivers for AHCI devices. The drivers are installed automatically during the Linux OS installation
