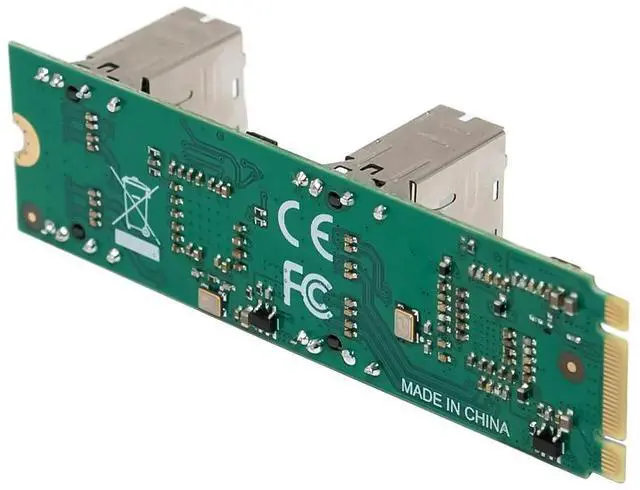

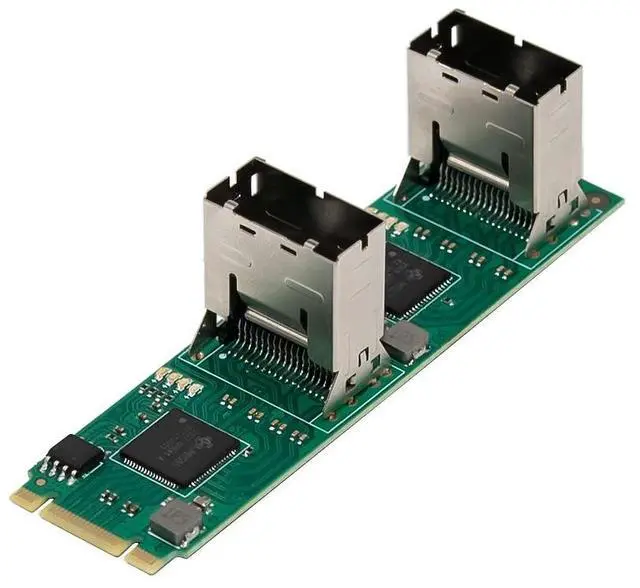

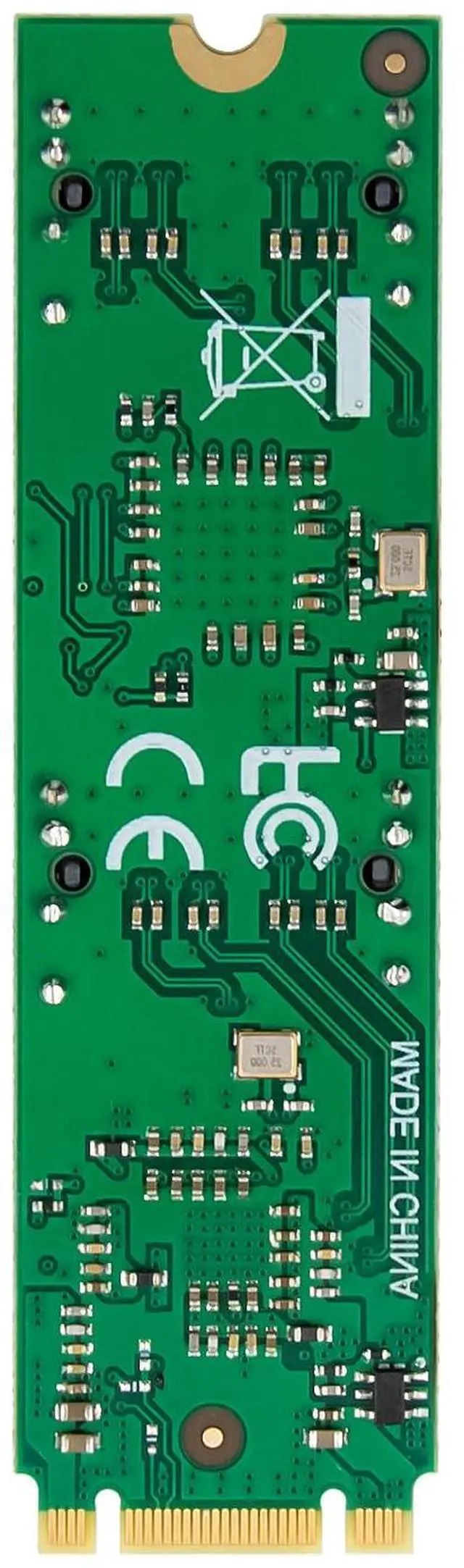

JVFYI M.2 Key B+M 2-SAS 36pin to 8-Port SATA 6Gb/s Expansion Card
Limited time offer, ends 01/12 By BRIGHTOR
- The M.2 Key B+M 2-SAS(36pin) to 8-Port SATA 6Gb/s Expansion card used new JMB585 chip solution, high speed and stable performance, it is committed to solving users demand for massive data space, the high-speed expansion card achieves PCI Express Gen 3x2 line bandwidth, with eight SATA ports extending from the PC host to the M.2 Key B+M slot, each port with a transmission speed up to 6Gbps.it can be widely applied to personal computers and other big data storage devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification
Compliant with M.2 Key B+M standard
Downstream : SAS 36PIN
Transfer protocol: PCIe x2
Supports up to two lane of PCI Express
Complies with PCI Express Base Specification Revision 3.1a
Supports PCIe Link layer power saving mode
Support NVMe M.2 Key B+M SSD including 2242 drives
Supports 8-SATA Port
Each SATA Port transmit speeds up to 6Gbps
Support command-based and FIS-based of Port Multiplier
Complies with SATA Specification Revision 3.2
Supports AHCI mode and IDE programming interface
Supports Native Command Queue(NCQ)
Supports SATA Link Power saving mode(partial and slumber)
Supports SATA plug-in detection capable
Supports drive power control and staggered spin-up
Supports SATA Partial/Slumber power management state
Plug-and-Play Supported, no additional software installation or settings required

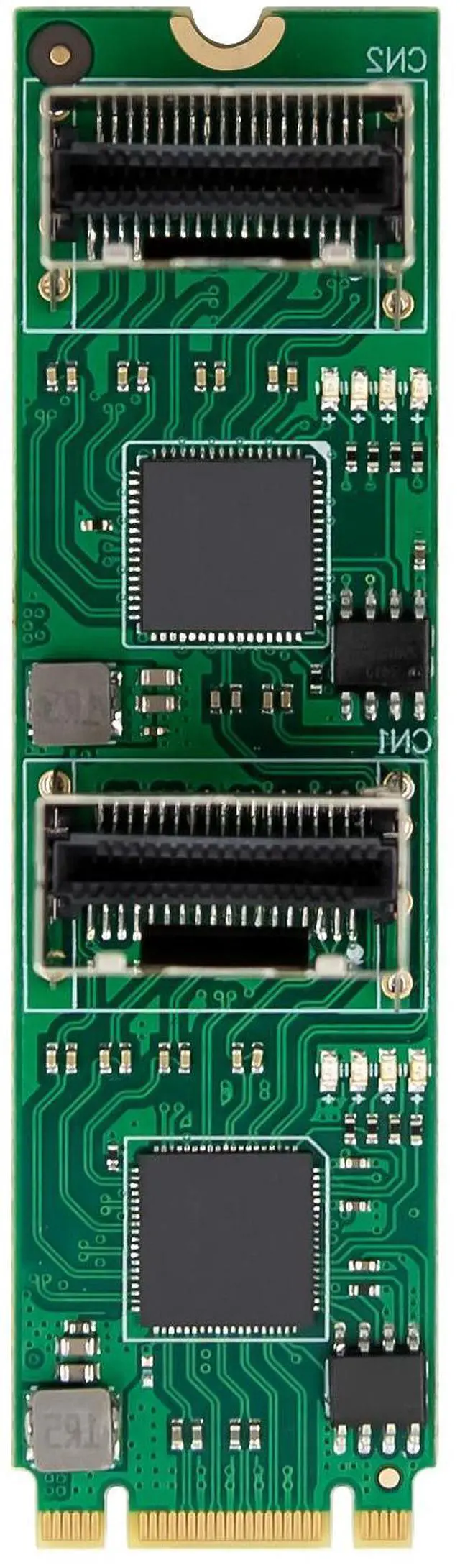

Chipset: JMB585*2
Drivers support for Linux , Win7/ Win8/Win8.1 /win10, 32 or 64bit

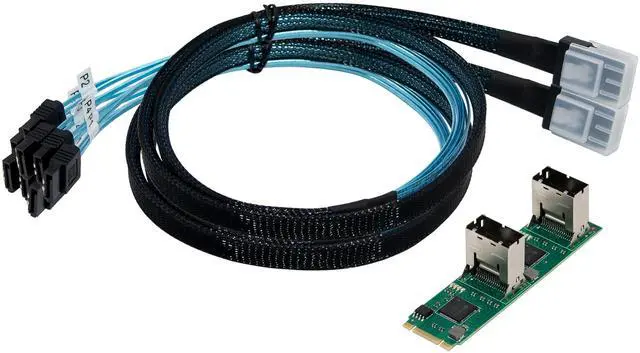

Package content
1 x M.2 Key B+M 2-SAS 36pin to 8-SATA3.0 Expansion card
1 x Users Manual
2 x SAS(36pin) to 4-Port SATA Cable
System Requirements
Linux base OS, Win7/ Win8/Win8.1 /win10, 32 or 64bit
Available M.2 Key B+M slot
Hardware installation
1.Turn off the power to your computer
2.Unplug the power cord and remove your computers cover
3.Locate to an empty M.2 slot on the motherboard, Move the board against the housing chamber, see figure 1
4.To install the board, Rotate module to 25. Insert it until the board surface reaches the ramp figure2,3
5.Rotate the board to horizontal position, see figure 4.
6.Fix the board by screw, see figure5
7.Attach your internal device to the SATAIII controller card
8.Replace the computer cover and reconnect the power cord
Install Drivers and software
Windows Operating Systems
For Windows 7,8,8.1,10 System Operating.
No need other driver, Using Windows In-box drivers to install the JMB585 adapter.
Support
More information and settings, please refer to the User Guides or you can contact us.
