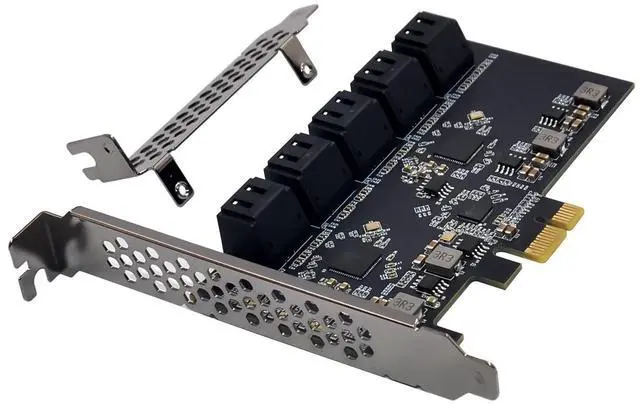

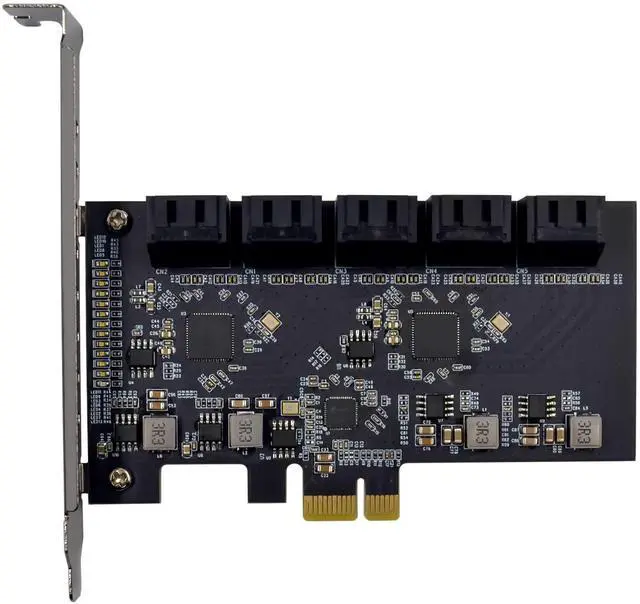

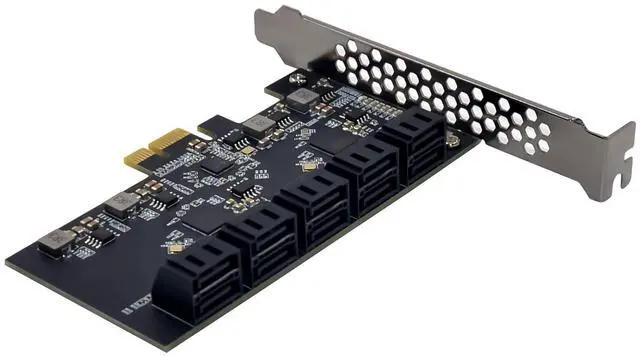

JVFYI PCIe 10-Port SATAIII 6Gbps Expansion Card
Limited time offer, ends 01/12 By BRIGHTOR
- The PCIe 10-Port SATAIII 6Gbps Expansion card is used a combination high performance chips JMB582&JMB575 to extend 10 SATA Ports, its upstream port provides a PCIe which data transmission rate for PCIe Gen3x1 specification. Meanwhile, it supported 10 SATA3.0 Ports, and all the downstream port can connect to SATA/AHCI storage devices, such as a solid-state drive, the data speed of each port for the SATA port can arrive at 6Gb/s, it can be applied on PC, Servers, IPC to extend the storage devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification
Complies with PCI Express Specification Revision 3.1a
Supports on lane of PCI Express
Supports PCIe link layer power saving mode
Supports 10 SATA port

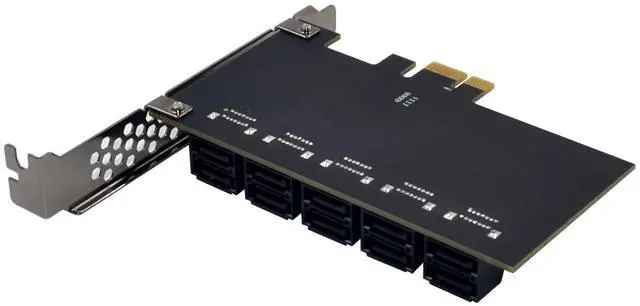

On-board with LED read/write indicator
Supports command-based and FIS-based for port Multiplier, not supported RAID
Complies with SATA Specification Revision 3.2
Supports Serial ATA 3.0 transfer rate up to 6Gbps
Supports communication speed of 6Gbps,3Gbps,1.5Gbps
Supports Gen1m and Gen2m SATA PHY
Supports AHCI mode and IDE programming interface
Support Native Command Queue(NCQ)
Supports SATA link power saving mode (partial and slumber)
Supports SATA plug-in detection capable
Supports drive power control and staggered spin-up
Supports SATA partial/slumber power management state
Supports Windows7,Windows8,Windows10 and Linux-base OS

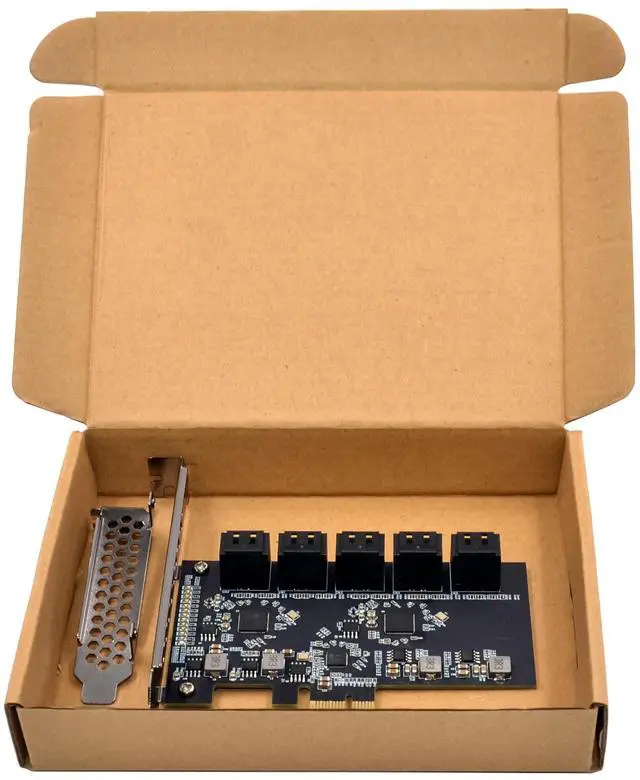

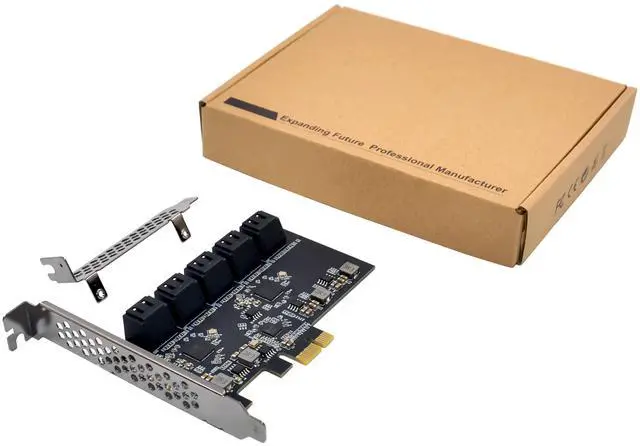

Package content
1 x PCIe 10-Port SATAIII 6Gbps Expansion card
1 x Users Manual
1 x CD
System Requirements
Linux-based OS 2.6.20 and above
Win7/Win8/Win8.1/Win10 32/64bit
Win Server2003,2008,2012,2016
Mac OS 10.3 or later version
An available PCI Express x1/x4/x8/x16 slot
Hardware installation
1.Turn off the computer and unplug the power cord
2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter
3.Insert the adapter edge connector into the slot and secure the bracket to the chassis
4.Replace the computer cover, then plug in the power cord
5.Power on the computer
Drivers installation
1.Start windows and insert the driver CD into the CD-ROM drive, assume drive A.
2.Windows will automatically detect the SATA card, right-click standard AHCI controller in the IDE ATA/ATAPI controller and select Update Driver Software.
3.Select Browse my computer for driver software
4.Browse to the following folder on the driver CD according to your operating system:
-Windows vista, server2008. windows7, windows8.windows8.1, windows10 32bit
A:\JMB582_JMB585_PM_Driver\v0.0.0.5\i386
-Windows vista, server2008.windows7, windows8.windows8.1, windows10 64bit
A:\JMB582_JMB585_PM_Driver\v0.0.0.5\amd64
5.follow the on-screen instruction to install the driver.
6.After successful installation, the device is list the Device Manager as JMicron JMB585 controller (under Storage Controller)
