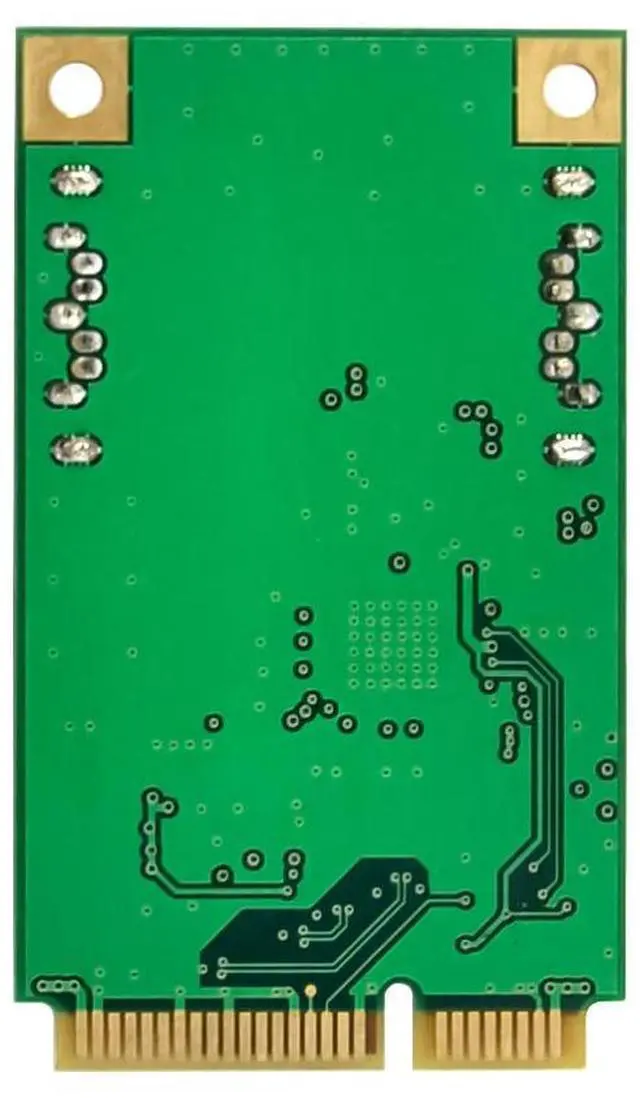

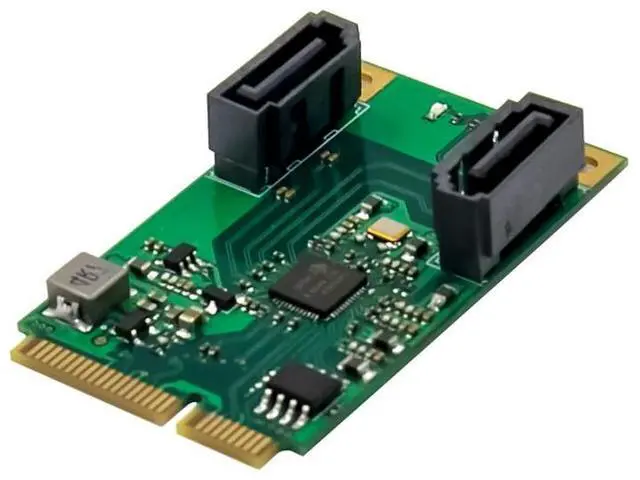

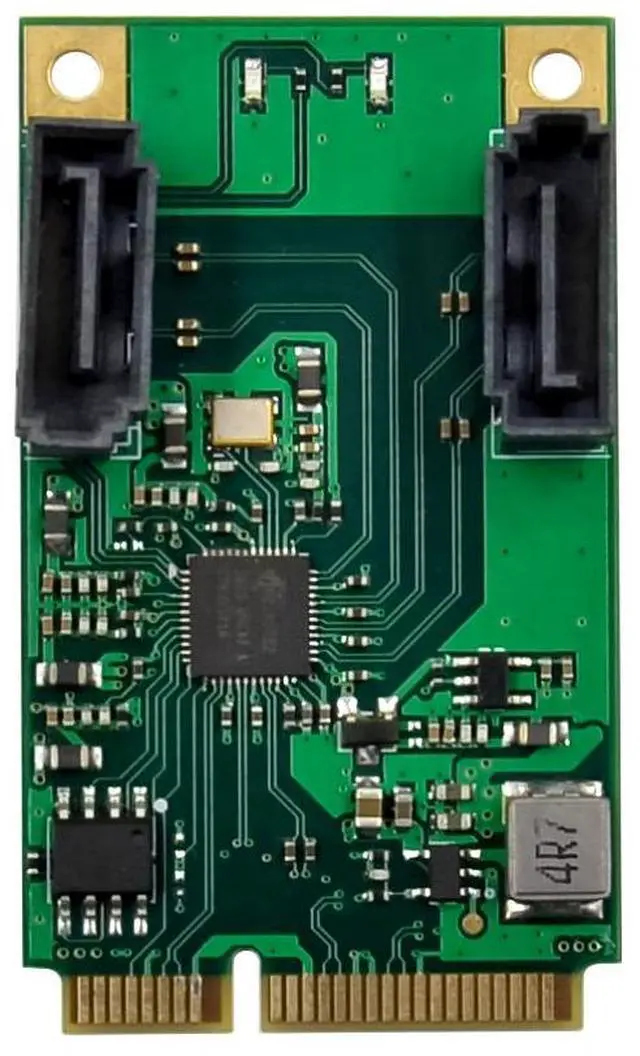

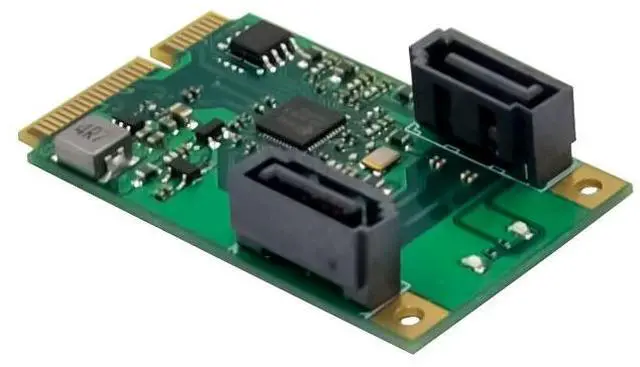

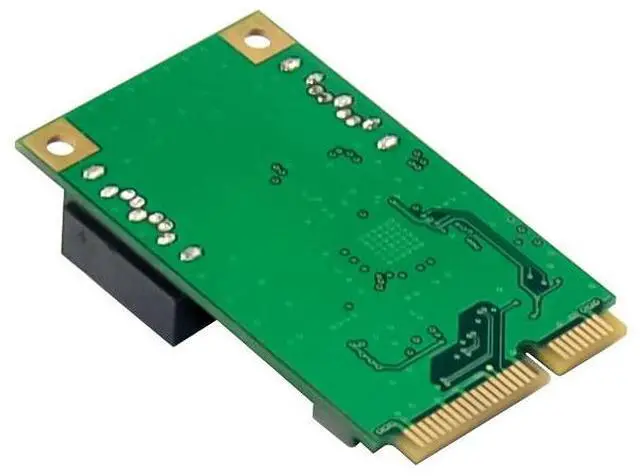

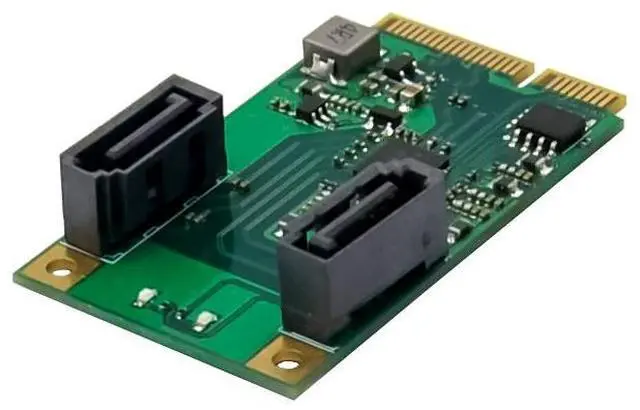

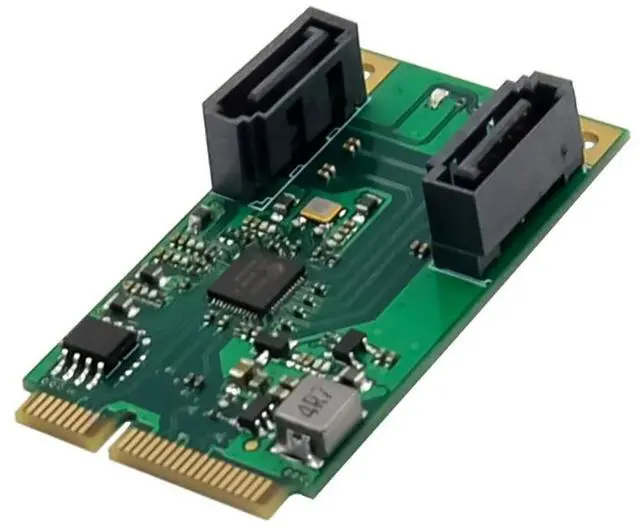

JVFYI MICIPCIe JMB582 2-Port SATA 6G Expansion Card
- The MINIPCIE JMB582 2-Port SATA 6G Expansion card is a bridge controller between the PCIe host and the storage devices with SATA/AHCI interface, its upstream port provides a PCIe which data transmission rate for PCIe Gen 3x1 specification. Meanwhile, its downstream port can connect to SATA/AHCI storage devices, such as a solid-state drive, the data speed of each port for the SATA port can arrive at 6Gb/s, it can be applied on PC, Servers, IPC to extend the storage devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Compatible with PCI-E MINI Card Electromechanical specification revision1.2
Compatible with Full/Half size MINI card type form factor
Complies with PCI Express Specification Revision 3.1a
Supports PCIe link layer power saving mode
Supports 2 SATA port
On-board with LED read/write indicator
Supports command-based and FIS-based for port Multiplier, not supported RAID
Complies with SATA Specification Revision 3.2
Supports Serial ATA 3.0 transfer rate up to 6Gbps
Supports communication speed of 6Gbps,3Gbps,1.5Gbps
Supports Gen1m and Gen2m SATA PHY
Supports AHCI mode and IDE programming interface
Support Native Command Queue (NCQ)
Supports SATA link power saving mode (partial and slumber)
Supports SATA plug-in detection capable
Supports drive power control and staggered spin-up
Supports SATA partial/slumber power management state
Supports Windows7, Windows8, Windows10 and Linux-base OS
Package content
1 x MINIPCIE JMB582 2-Port SATA 6G Expansion card
1 x Users Manual
2 x SATA cable
System Requirements
Linux-based OS 2.6.20 and above
Win7/Win8/Win8.1/Win10 32/64bit
Win Server2003,2008,2012,2016
Mac OS 10.3 or later version
An available MINIPCIE slot
Hardware installation
1.Turn off the computer and all external devices connected to it
2.Open the computer case, Refer to your computer user manual for more details
3.Find an available MINIPCIE slot and remove the slot bracket, save the bracket screw for later use.
4.Insert the MINIPCIE SATA card to the MINIPCIE slot firmly and evenly, take care not to force it into the slot. Once you have properly positioned the MINIPCIE SATA card into the slot. secure it with the bracket screw you have just saved
5.Connect the SATA devices with SATA cable to the MINIPCIE SATA card.
6.Secure the computer case and switch on your computer.
