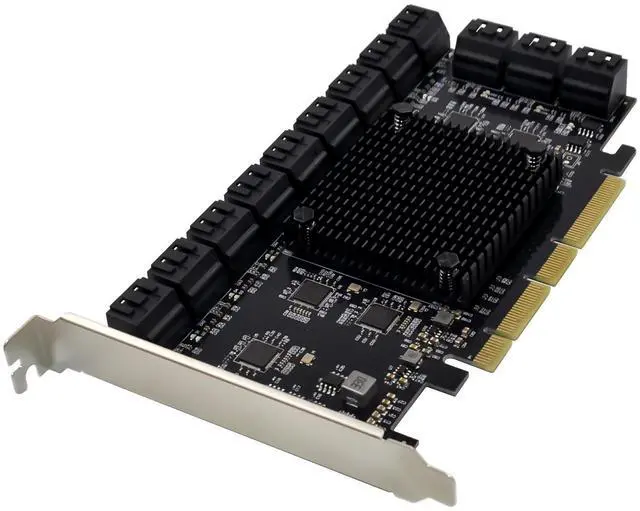

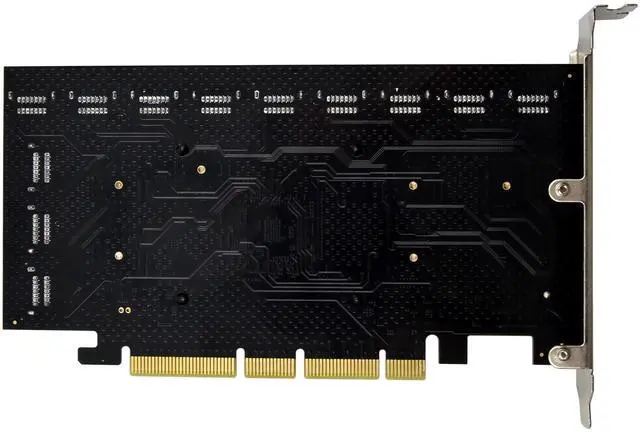

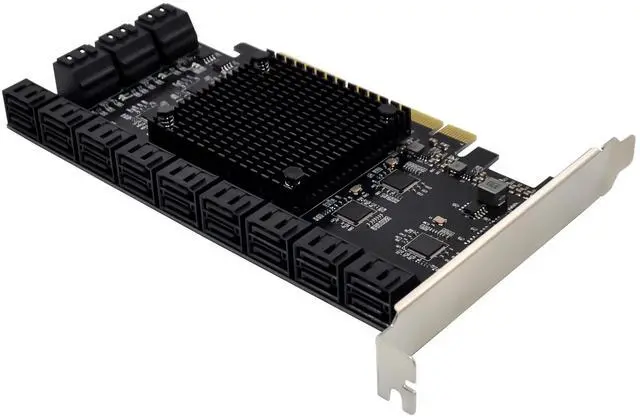

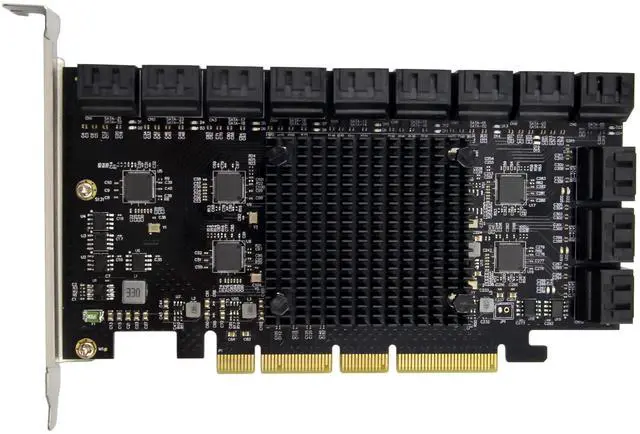

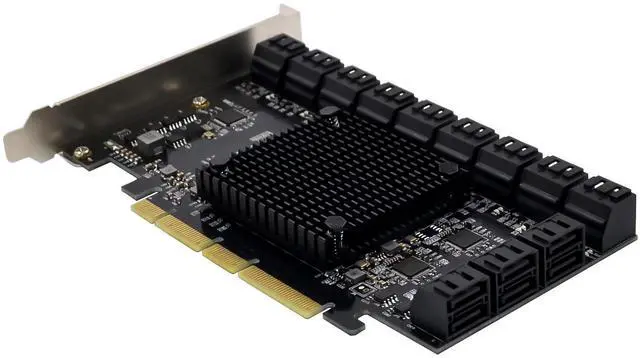

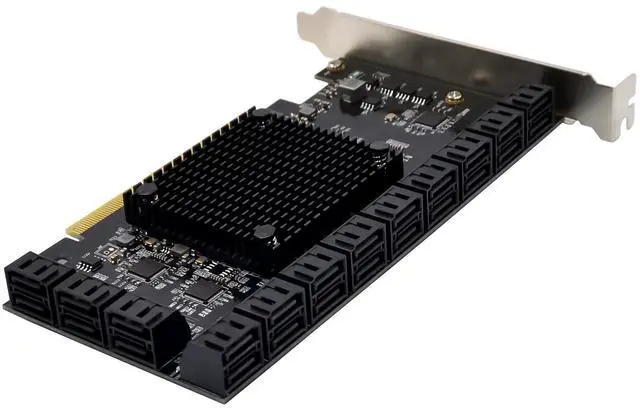

JVFYI PCIe ASM1064 SATAIII 24-Port Expansion card
Limited time offer, ends 01/09 By BRIGHTOR
- PCIe ASM1064 SATAIII 24-Port Expansion card is used a combination of Asmedia high performance chips ASM1812&ASM1064 to extend 24 SATA Ports. With upstream PCIe Gen2x4 and downstream 24 SATA Gen3 port, its a low latency, low cost and low power AHCI controller, Each Serial ATA port support transmission speeds up to 6Gbps, and backward compatibility to legacy SATA1.5Gbps or 3Gbps drives. besides, it is widely used in various high speed IO systems, including server, high-capacity system storage or surveillance platforms and etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Compliant with PCI Express Specification V2.0 and backward compatible with PCI Express 1.x
PCI Express interface:x4/x8/x16 multiple interface adaptations
Supporting transfer rate of 2.5Gb(250MB/S), 5Gb(500MB/S) per lane, maximum transmission speeds up to 20Gbps
Support L0s/L1/L2/L3 Power saving states
Compliant with Serial ATA Specification v3.0
AHCI SPEC Rev 1.4
Supports 24 SATAIII port
Supports communication speeds of 6Gbps,3Gbps, and 1.5Gbps
Hot Plug and Hot Swap
Support Native Command Queue (NCQ)
Support Port Multiplier
Support Device Sleep power management
Support partial/slumber power management
Compatible with SATA6G,3G and 1.5G hard drives
Drivers support for Linux, WindowsWin7/server2008/ Win8/Win8.1/ win10
Package content
1 x PCIe ASM1064 SATAIII 24-Port Expansion card
1 x Users Manual
1 x CD Driver
Accessories
System Requirements
Linux, WindowsServer2003/Vista/Win7/server2008/ Win8/Win8.1/server2012/ win10/Win11/
One available PCI Express x4/x8/x16 slot
Hardware installation
1.Turn off the computer and unplug the power cord
2.Remove the computer cover and the card slot cover from the slot that matches your adapter
3.Insert the card edge connector into the slot and secure the bracket to the chassis
4.Replace the computer cover, then plug in the power cord
5.Power on the computer
Install Drivers and software
Windows Operating Systems
You must have administrative rights to the operating system to install the drivers.
1.insert the CD driver bound with ASM106X driver into your CD-ROM drive:
2.if the Found New Hardware Wizard screen is displayed, click Cancel
3.locate the folder where the driver is located
4.double click setup.exe to run install program.
5.Follow the instructions in the install wizard to complete the driver installation.
Support
More information and settings, please refer to the Adapter User Guides or you can contact us.
