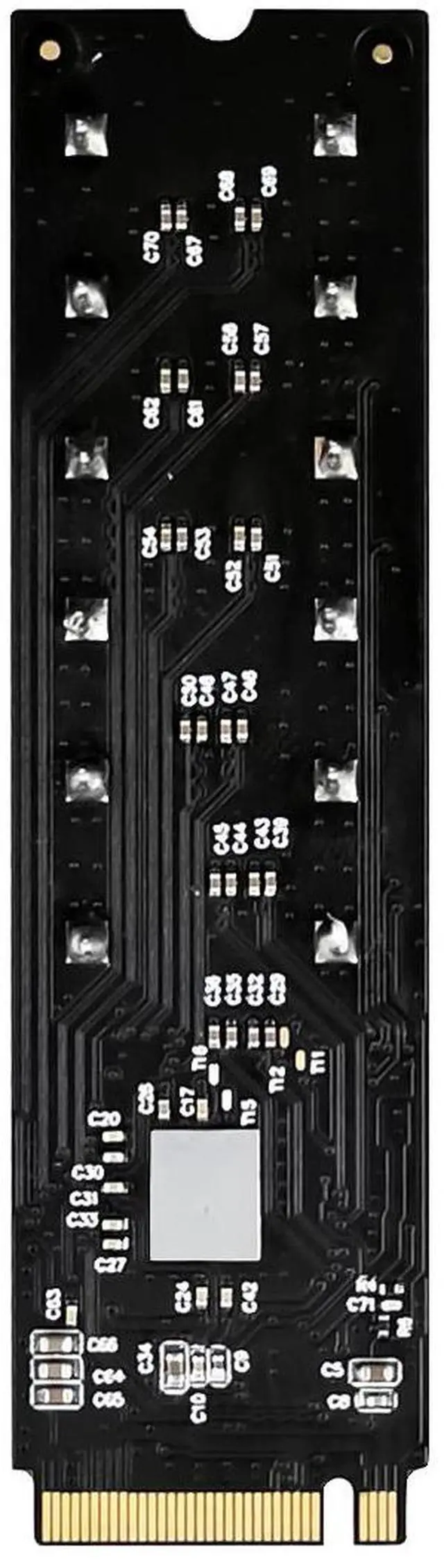

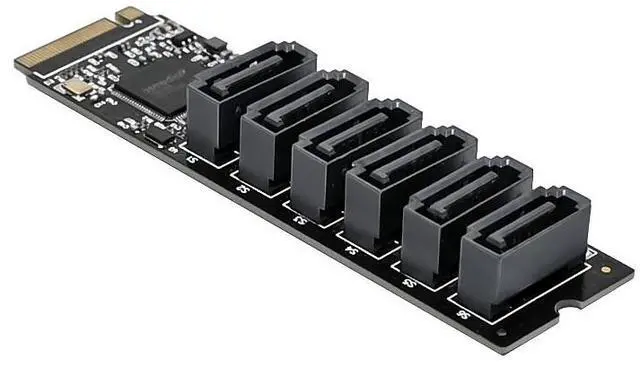

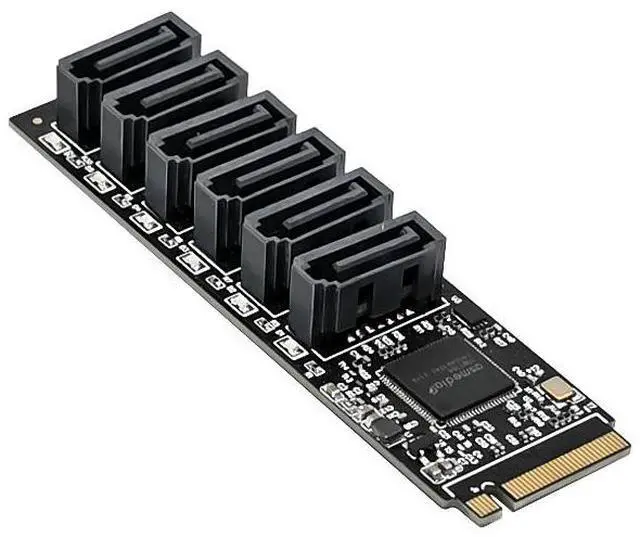

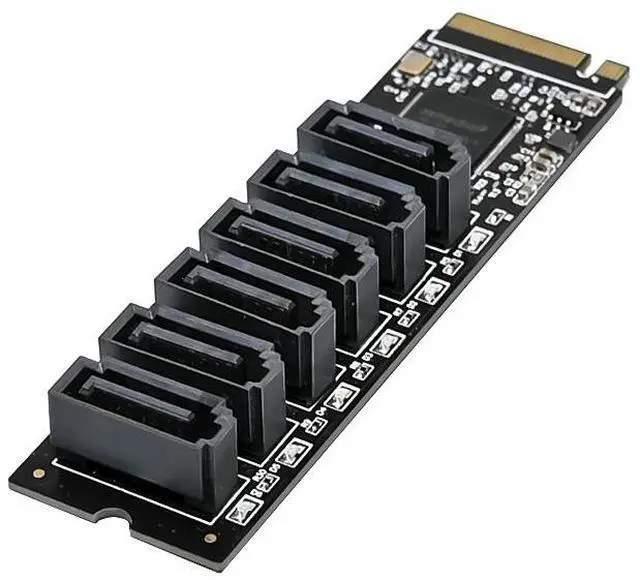

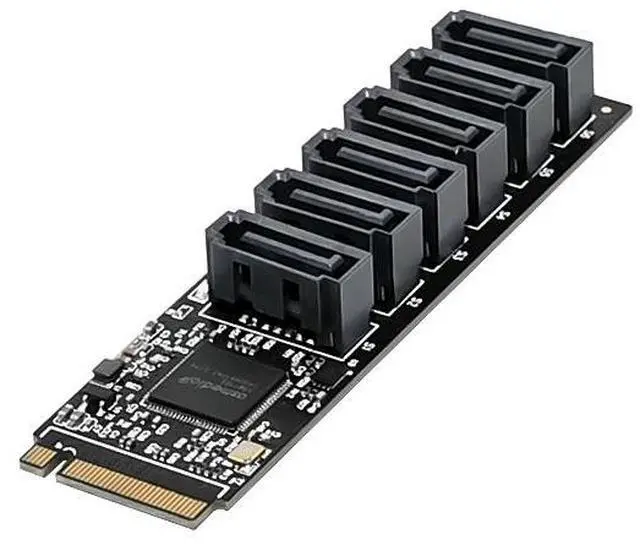

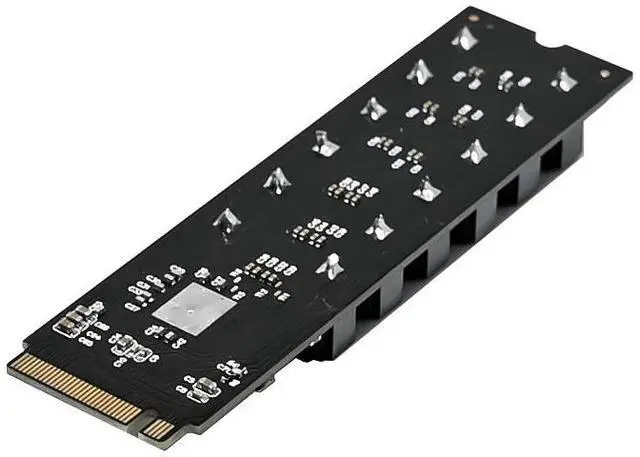

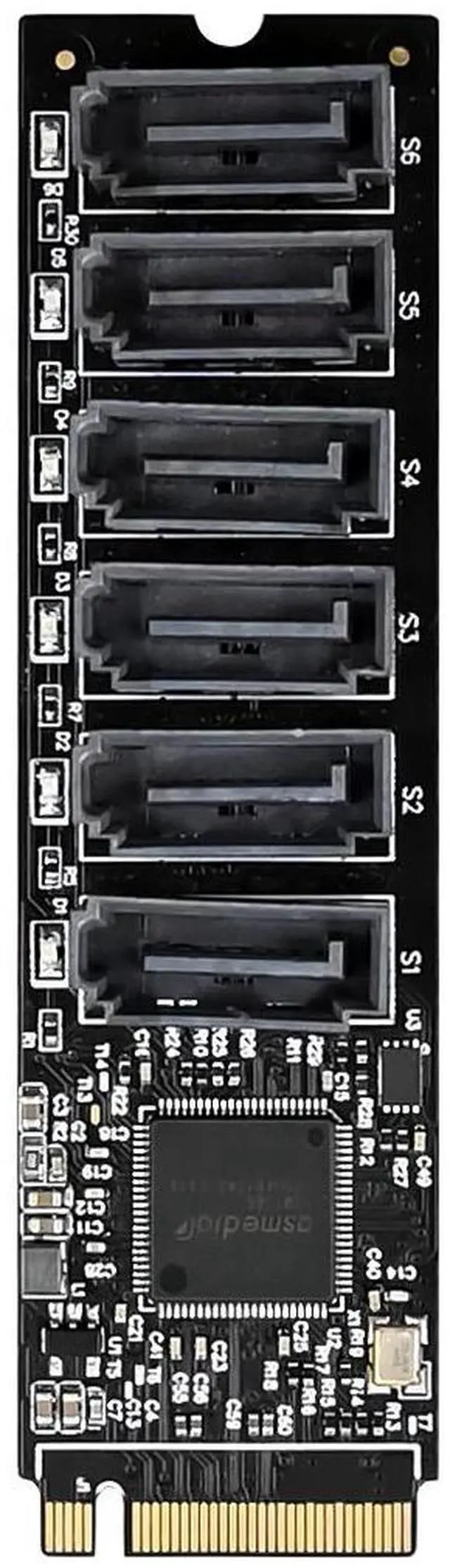

JVFYI M.2 ASM1166 SATAIII 6-Channel Expansion card

Upstream interface: M.2 M KEY

Compliant with PCI Express Specification V3.0 and backward compatible with PCI Express 1.x

2-lane PCIe connecting with root port

Supporting transfer rate of 2.5Gb(250MB/S), 5Gb(500MB/S) or 8Gb (1GB/S) per lane

Support L0s/L1/L2/L3 Power saving states

Compliant with Serial ATA Specification v3.0

AHCI SPEC Rev 1.4

Supports Six SATAIII port

Supports communication speeds of 6Gbps,3Gbps, and 1.5Gbps

Hot Plug and Hot Swap

Support Native Command Queue (NCQ)

Support Port Multiplier

Support Device Sleep power management

Support partial/slumber power management

Compatible with SATA6G,3G and 1.5G hard drives

Drivers support for Linux, WindowsWin7/server2008/ Win8/Win8.1/ win10

Package content

1 x M.2 ASM1166 SATAIII 6-Channel Expansion card

1 x Users Manual

1 x CD Driver

4 x SATA cables

Accessories

System Requirements

Linux, WindowsServer2003/Vista/Win7/server2008/ Win8/Win8.1/server2012/ win10/Win11/

One available M.2 M KEY slot

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the card slot cover from the slot that matches your adapter

3.Insert the card edge connector into the slot and secure the M.2 SATA card to the motherboard

4.Connect the SATA devices with SATA cable to the M.2 SATA card

5.Replace the computer cover, then plug in the power cord

6.Power on the computer

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with ASM106X driver into your CD-ROM drive:

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.locate the folder where the driver is located

4.double click setup.exe to run install program.

5.Follow the instructions in the install wizard to complete the driver installation.

Support

More information and settings, please refer to the Adapter User Guides or you can contact us.
