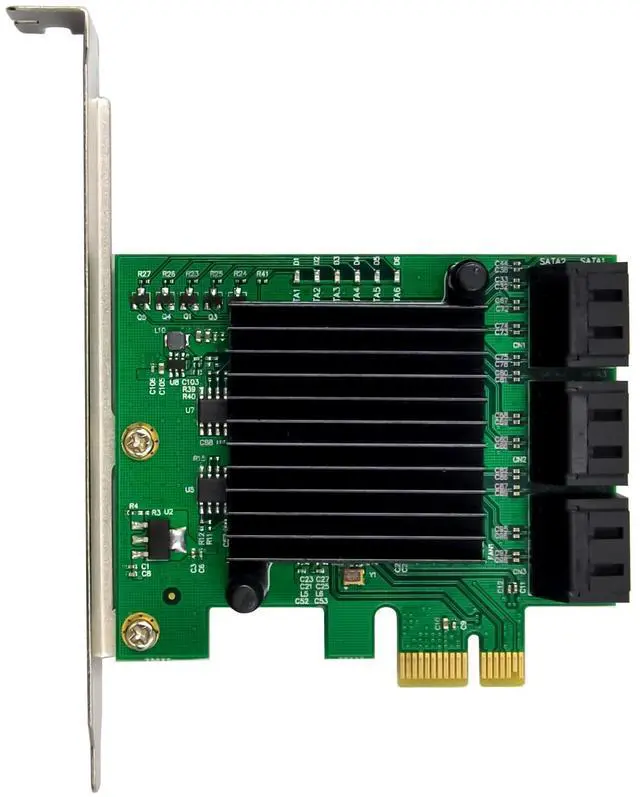

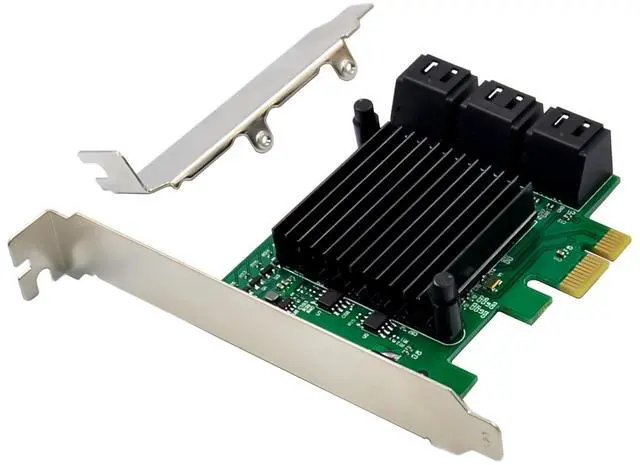

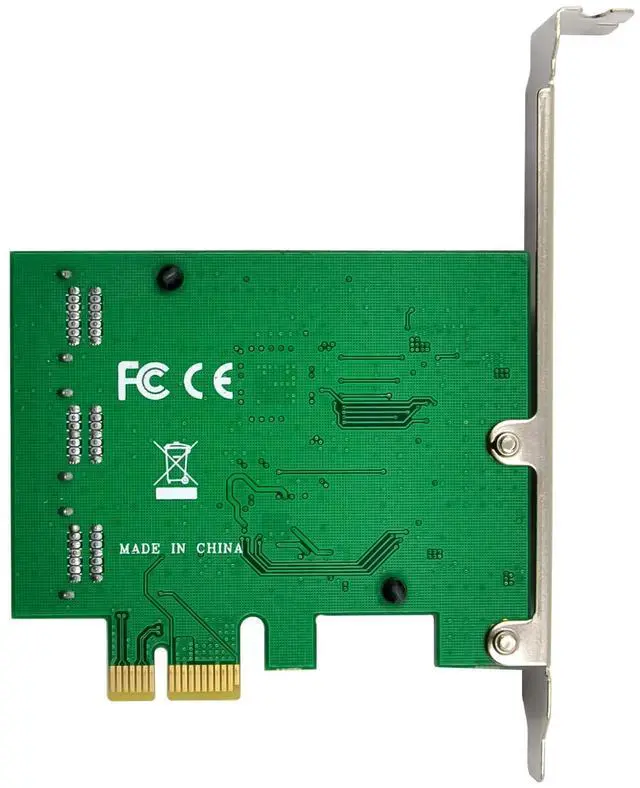

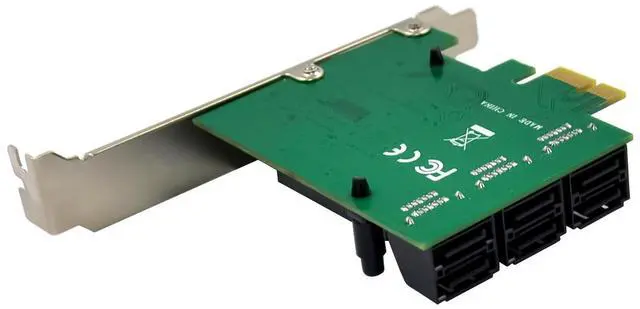

JVFYI PCIe ASM1061&JMB575 SATAIII 6-Port Expansion card

Specification

Compliant with PCI Express Specification V2.0 and backward compatible with PCI Express 1.x

Compliant with Serial ATA Specification v3.0

Supports six SATAIII port

Supports communication speeds of 6Gbps,3Gbps, and 1.5Gbps

Hot Plug and Hot Swap

Support Native Command Queue (NCQ)

Support Port Multiplier

Compatible with SATA6G,3G and 1.5G hard drives

Chipsets:ASM1061&JMB575

Drivers support for Linux, Windows XP/Server 2003/Vista/Win7/server2008/ Win8/Win8.1/ win10

Note: it required install ASM1061 driver to achieve the 6-port function.

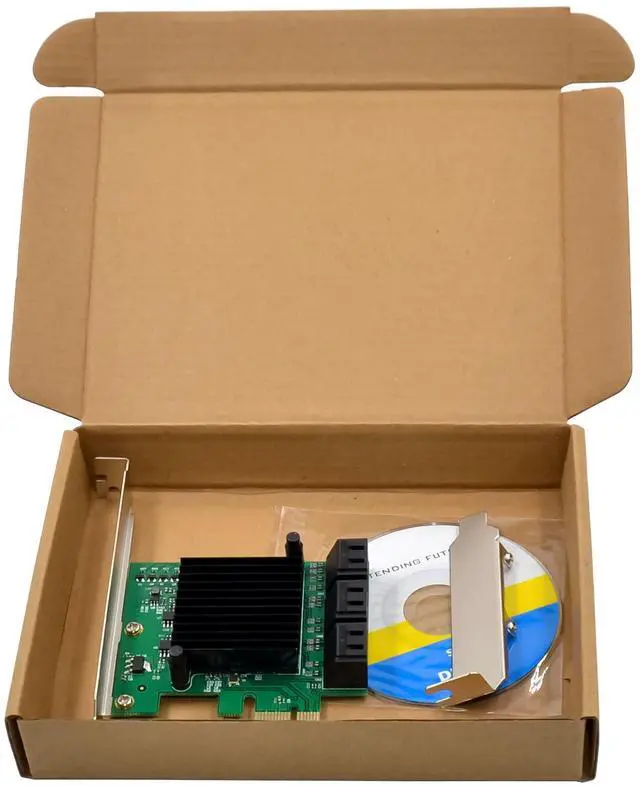

Package content

1 x PCIe ASM1061&JMB575 SATAIII 6-Port Expansion card

1 x Users Manual

1 x CD Driver

1 x Low profile bracket

6 x SATA cables

Accessories

System Requirements

Linux, Windows XP/Server 2003/Vista/Win7/server2008/ Win8/Win8.1/ win10

One available PCI Express x1/x4/x8/x16 slot

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the card slot cover from the slot that matches your adapter

3.Insert the card edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover, then plug in the power cord

5.Power on the computer

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with PCIe asm1061 SATAIII expansion card driver into your CD-ROM drive:

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.locate the folder where the driver is located

4.double click setup.exe to run install program.

5.Follow the instructions in the install wizard to complete the driver installation.

Support

More information and settings, please refer to the Adapter User Guides or you can contact us.
