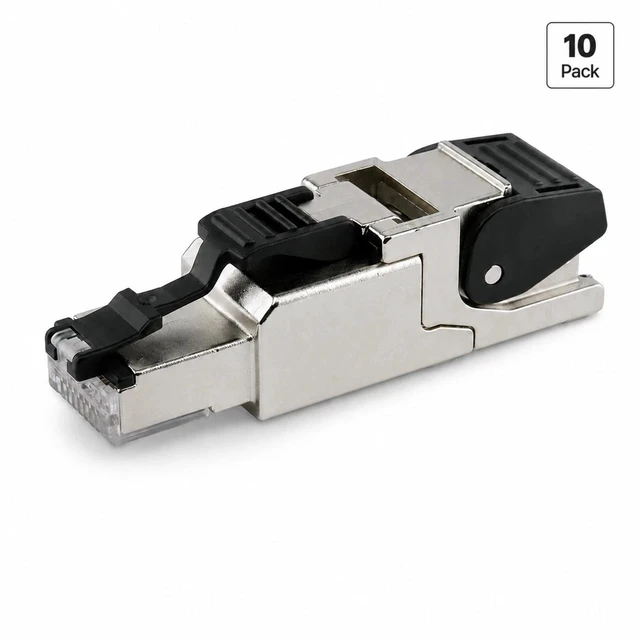

Telegärtner 100023038 Cat6A RJ45 T568B Field Termination Plug AWG24-22 Pack of 10
- Manufacturer: Telegärtner
- Part Number: 100023038
- Alternate Part Number: J00026A2001
- EAN: 4018359380687
- Product Family: MFP8
- Connector Type: RJ45 Field Termination Plug
- Connector Configuration: RJ45 8P8C
- Category: Cat6A
- Transmission Class: Class EA
- Wiring Standard: T568B
- Housing: Nickel-plated zinc die-cast
- Shielding: Shielded metal housing
- Solid Conductor Range: AWG24 to AWG22
- Stranded Conductor Range: AWG27 to AWG22
- Core Diameter: 1.0 to 1.6 mm
- Cable Diameter: 5.0 to 9.0 mm
- Cable Tensile Strength: Minimum 50 N
- Ethernet Performance: Up to 10 Gigabit Ethernet
- Power over Ethernet: Supports PoE, PoE+, and 4PPoE
- Durability: More than 750 mating cycles
- Reusable IPC: Up to 4 reconnections
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP2X / IPX0
- Connector Standard: IEC 60603-7-51
- Compliance: RoHS Compliant
- Certification: UL Listed E244889
- Quantity: Pack of 10 connectors
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Sold as a Pack of 10. The Telegärtner 100023038 MFP8 is a shielded Cat6A RJ45 field termination plug with T568B wiring, designed for professional on-site termination of Ethernet installation and patch cables. Its nickel-plated zinc die-cast housing, shielded construction, integrated strain relief, and compact field-installable design provide a reliable connection for office, data center, structured cabling, Wi-Fi, security, and telecom applications.
This version is designed for solid AWG24 to AWG22 and stranded AWG27 to AWG22 conductors, with insulated core diameters from 1.0 to 1.6 mm and overall cable diameters from 5.0 to 9.0 mm. The connector provides Cat6A/Class EA transmission performance and supports 10 Gigabit Ethernet, PoE, PoE+, and 4 Pair Power over Ethernet.
Typical Applications
- Cat6A Ethernet field termination
- Office and data center network cabling
- Building and structured cabling systems
- Wi-Fi access point connections
- IP camera and security system connections
- Distributed antenna system and telecom network connections
- 10 Gigabit Ethernet networks
- PoE, PoE+, and 4PPoE network devices
