Telegärtner 100023040 Cat6A RJ45 T568B Field Termination Plug AWG26-24 Pack of 10
- Manufacturer: Telegärtner
- Part Number: 100023040
- Alternate Part Number: J00026A2003
- EAN: 4018359428662
- Product Family: MFP8
- Manufacturer Description: CU-CN MFP8 T568B C6A D.85-1.1
- Connector Type: RJ45 Field Termination Plug
- Category: Cat6A
- Transmission Class: Class EA
- Wiring Standard: T568B
- Connector Standard: IEC 60603-7-51
- Housing Material: Nickel-plated zinc die-cast
- Solid Conductor Range: AWG26 to AWG24
- Stranded Conductor Range: AWG27 to AWG24
- Solid Conductor Diameter: 0.41 to 0.51 mm
- Stranded Conductor Diameter: 0.46 to 0.61 mm
- Core Diameter: 0.85 to 1.1 mm
- Cable Diameter: 5.0 to 9.0 mm
- Ethernet Performance: Up to 10 Gigabit Ethernet per IEEE 802.3an
- Power over Ethernet: Supports PoE, PoE+, and 4PPoE
- Durability: More than 750 mating cycles
- Reusable IPC: Up to 4 reconnections
- Cable Tensile Strength: Minimum 50 N
- Insertion Force: Less than 30 N
- Current Rating: 1 A at 50°C
- Contact Resistance: 20 m
- Insulation Resistance: 500 M
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP20
- Compliance: RoHS Compliant
- Certification: UL Listed E244889
- Included: Protection cap
- Quantity: Pack of 10 connectors
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

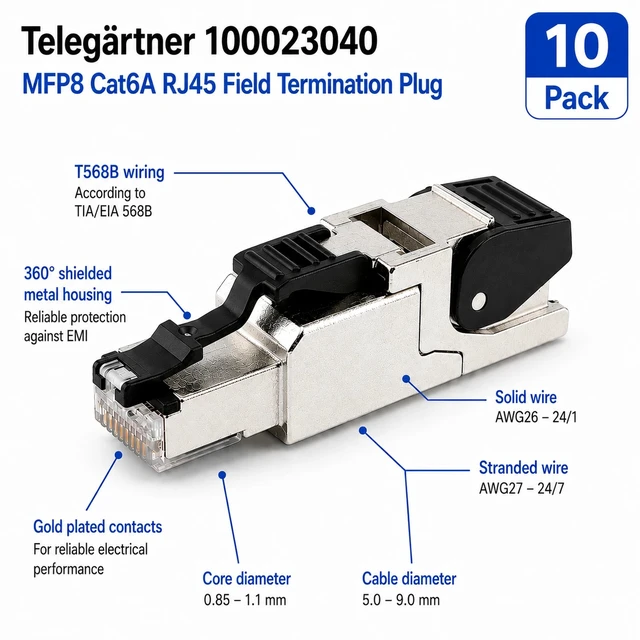

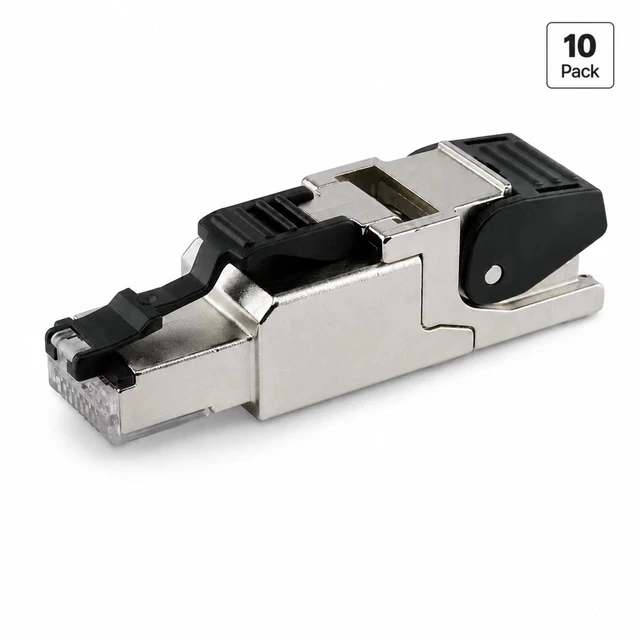

Sold as a Pack of 10. The Telegärtner 100023040 MFP8 is a shielded Cat6A RJ45 field termination plug with T568B wiring, designed for Ethernet installation and patch cables using smaller conductor sizes. The connector features a nickel-plated zinc die-cast housing, shield contact, integrated strain relief, and protection cap for reliable connections in office, data center, building network, Wi-Fi, security, and telecom applications.
This version is designed for solid AWG26 to AWG24 and stranded AWG27 to AWG24 conductors, with insulated core diameters from 0.85 to 1.1 mm and overall cable diameters from 5.0 to 9.0 mm. It supports Cat6A/Class EA transmission and 10 Gigabit Ethernet, along with PoE, PoE+, and 4 Pair Power over Ethernet.
Typical Applications
- Cat6A Ethernet field termination
- Office and data center network cabling
- Building and structured cabling systems
- Wi-Fi access point connections
- IP camera and security system connections
- Distributed antenna system and telecom network connections
- 10 Gigabit Ethernet networks
- PoE, PoE+, and 4PPoE network devices
