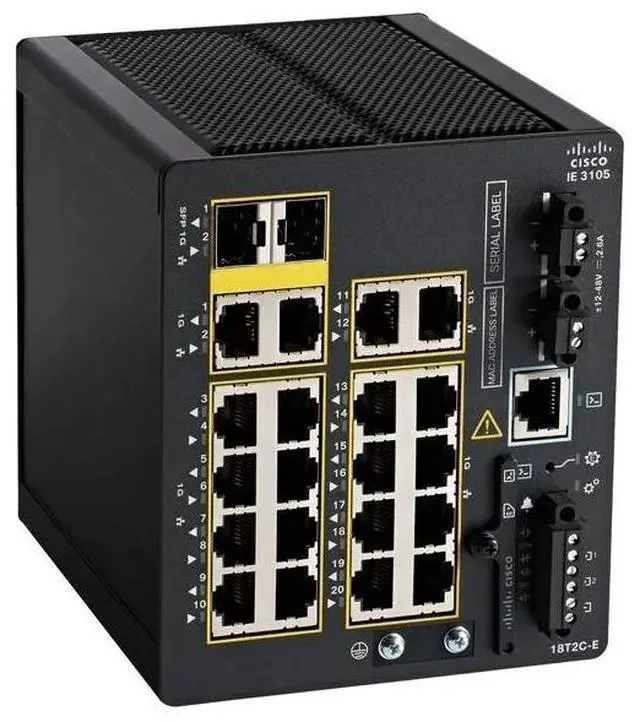

Cisco Catalyst IE3105 Rugged Managed Switch - 18 Port Gigabit Copper - 2 Port GE Combo Uplinks - Layer 3 - Network Essentials - Industrial DIN-Rail (IE-3105-18T2C-E)
- Built for Extreme Environments: Engineered for reliability in temperatures ranging from -40°C to 75°C (-40°F to 167°F). It is fanless and hardened for vibration, shock, and electrical noise immunity. High Gigabit Port Density: Features 18 x 10/100/1000 Mbps RJ45 ports for local device connectivity and 2 x Combo Gigabit ports (Copper or SFP) for flexible, high-speed uplinks to the network core. Advanced Industrial Automation: Native support for industrial protocols including EtherNet/IP (CIP), Modbus, and PROFINET, allowing for seamless integration with PLCs and industrial controllers. Network Essentials Software (Layer 3): Provides foundational Layer 3 routing (Static, RIP, OSPF) and advanced Layer 2 features (VLANs, QoS) to ensure secure network segmentation and traffic prioritization.Rapid Recovery & Resiliency: Supports Media Redundancy Protocol (MRP) and Resilient Ethernet Protocol (REP), ensuring sub-second network recovery in ring topologies to prevent downtime. Cisco Trust Anchor Module: Enhances security with hardware-anchored Secure Boot and Image Signing, protecting your industrial network from unauthorized firmware and malicious attacks.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical Specifications
Industrial & Environmental
Software & Intelligence
Power & Physical
Technical Note: The "IE-3105" variant is specifically noted for including an enhanced feature set over the standard IE3100 series, including support for Layer-2 NAT, which is critical for connecting machines with conflicting IP addresses in industrial subnets.
- Total Ports: 20 Gigabit Ethernet ports.
- Downlink Ports: 18 x 10/100/1000Base-T Copper (RJ45).
- Uplink Ports: 2 x Gigabit Combo ports (supports either RJ45 Copper or SFP Fiber).
- Throughput: Full line-rate Layer 2 and Layer 3 forwarding.
- Memory: 4 GB DRAM for robust performance under heavy traffic loads.
Industrial & Environmental
- Form Factor: Fixed system, compact DIN-Rail mountable design.
- Cooling: Fanless, convection-cooled (no moving parts for increased MTBF).
- Operating Temp: -40° to +75°C (-40° to +167°F) with cold start at -40°C.
- Ingress Protection: IP30 rated ruggedized housing.
- Compliance: Meets industrial standards for automation, ITS (Intelligent Transport Systems), and substation environments (IEC 61850-3, IEEE 1613).
Software & Intelligence
- Software License: Network Essentials (Foundational L3 functionality).
- Security: Support for 802.1X, Port Security, TrustSec SGT, and Layer-2 Network Address Translation (L2NAT).
- Management: WebUI (modern browser-based GUI), CLI, SNMP, and Cisco DNA Center (Catalyst Center) compatible.
- Time Synchronization: Support for IEEE 1588v2 Precision Time Protocol (PTP) with power and manufacturing profiles.
Power & Physical
- Power Input: Dual DC inputs (12V to 48V nominal) for power redundancy.
- Power Consumption: Approximately 36.7W (efficient, low-heat design).
- Dimensions: 5.00 x 4.30 x 5.08 inches (12.70 x 10.92 x 12.90 cm).
- Weight: ~2.8 lbs (1.27 kg).
Technical Note: The "IE-3105" variant is specifically noted for including an enhanced feature set over the standard IE3100 series, including support for Layer-2 NAT, which is critical for connecting machines with conflicting IP addresses in industrial subnets.
