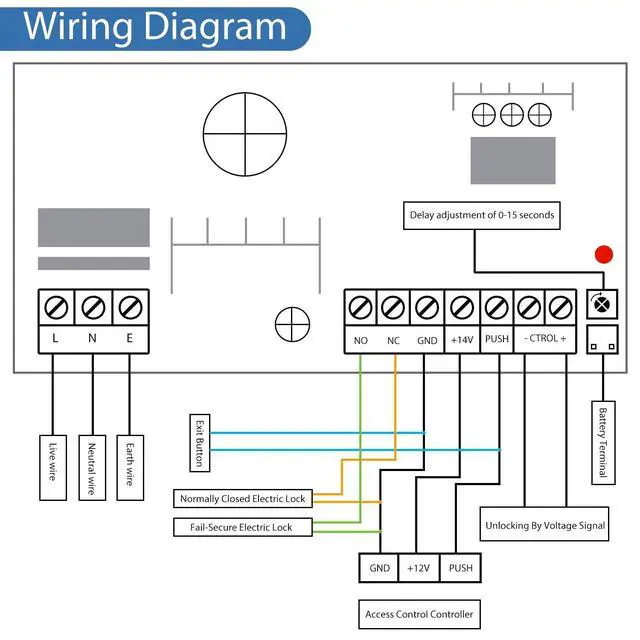

Compatible with E/M lock, access controller, exit push button and RFID reader.
Set NC/NO outputs, can control various types of electric locks.
Based relay control circuit, lock time can be adjusted with 0 -15 seconds; Note: Opening time must set to 0 second
when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.
Automatic protection function for dangerous situation: overload / over voltage / short circuit.
Protection mechanism: power may be temporarily disconnected or the fuse auto insured.
Suitable for building intercom, various entrances access control, particularly suitable for all kinds of electric locks.
Built-in manual shutdown button switch!
Operative device: E/M Lock, access controller, exit push Button.
Support external backpack battery 12V 7AH (Not included)
Product Description

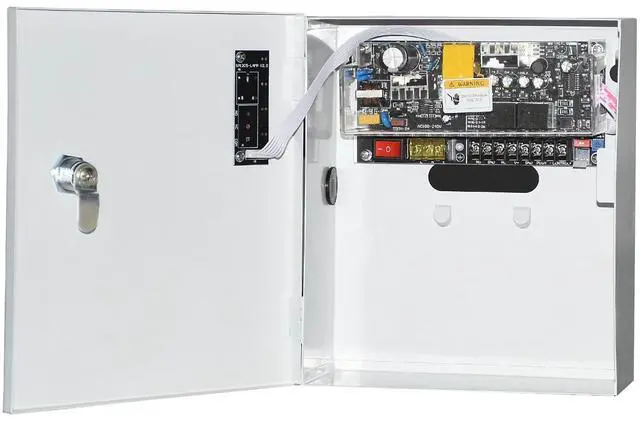

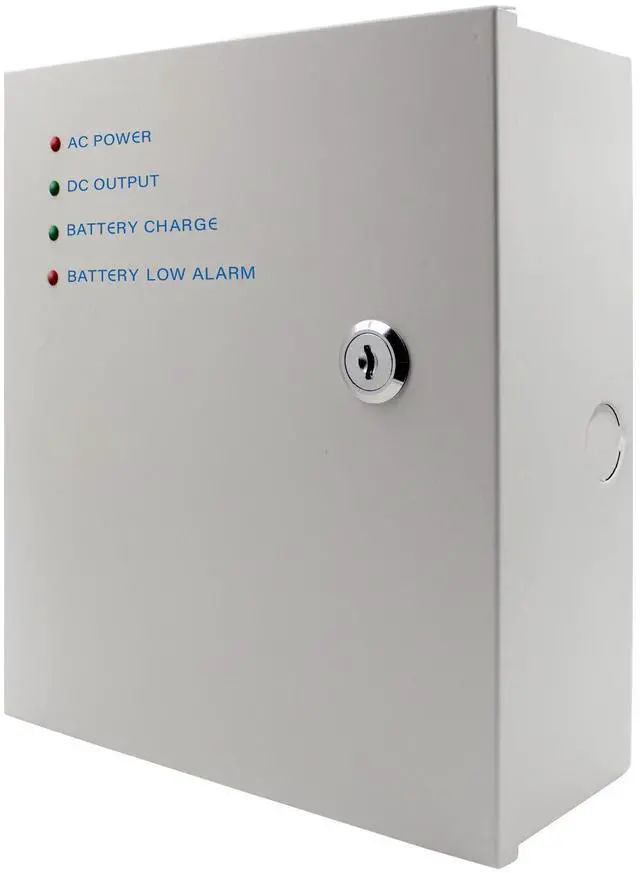

This product is a power supply control device with an input voltage range of AC 110-240V and an output voltage of DC 12V at a current of 5A.

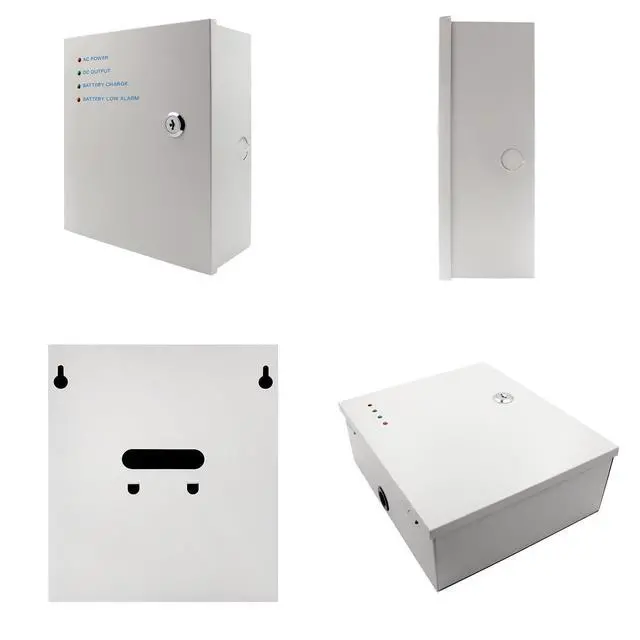

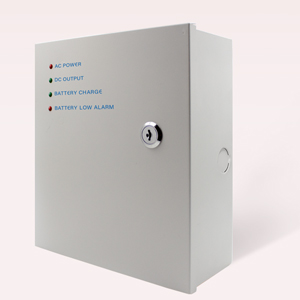

It features stable and adjustable voltage output and is housed in a metal boxed cabinet, providing reliable protection and heat dissipation. The device also includes a backup battery link function for providing alternative power during power outages. It is mainly suitable for applications such as burglar alarms, CCTV cameras, PTZ (Pan-Tilt-Zoom) devices, and access control systems.
Please note that the battery is not included when purchasing.
Package:
- 1 x Power Supply
- 2 x keys
- 1 x red wire
- 1 x black wire
- 1 x User manual

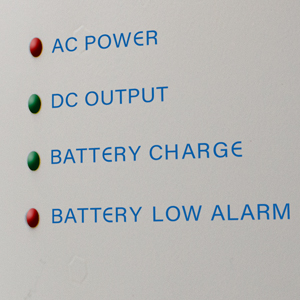

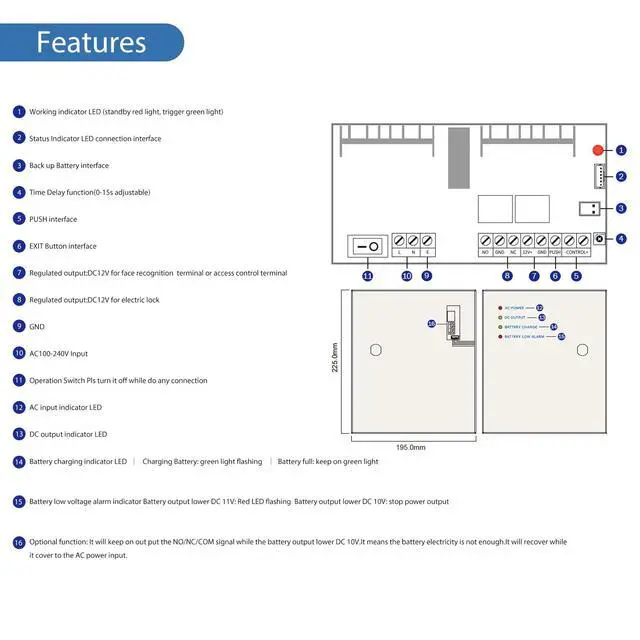

LED indicator light
Circuit board indicator lights (standby red light, trigger green light).
Indicator light signal line interface.

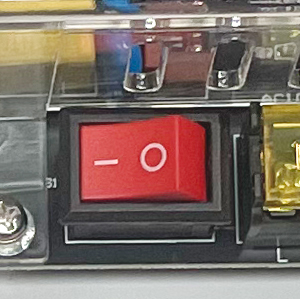

The manual power switch is used to manually control the on-off state of the power supply. With the manual power switch, users can manually turn the power on or off to control the device's power supply.

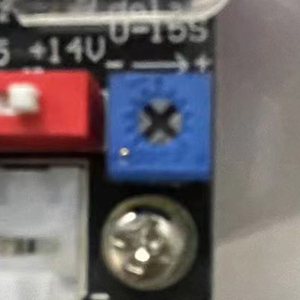

delay switch
Based relay control circuit, lock time can be adjusted with 0 -15 seconds
Compatible with E/M lock, access controller, exit push button and RFID reader.
Set NC/NO outputs, can control various types of electric locks.
Based relay control circuit, lock time can be adjusted with 0 -15 seconds; Note: Opening time must set to 0 second
when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.
Automatic protection function for dangerous situation: overload / over voltage / short circuit.
Protection mechanism: power may be temporarily disconnected or the fuse auto insured.
Suitable for building intercom, various entrances access control, particularly suitable for all kinds of electric locks.
Built-in manual shutdown button switch!
Operative device: E/M Lock, access controller, exit push Button.
Support external backpack battery 12V 7AH (Not included)

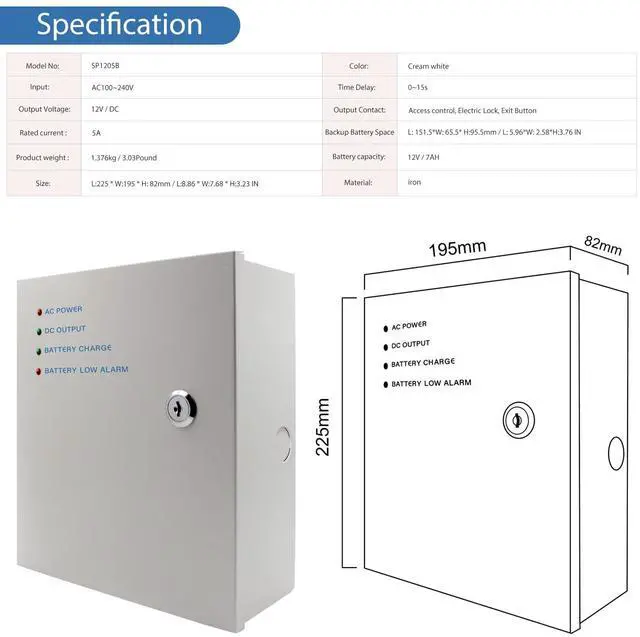

| Input Voltage: | AC 100-240V (Worldwide voltage) |
| Input Frequency: | 50-60Hz |
| Output Voltage: | DC 12V |
| Output Current: | 5A |
| Power: | 60W |
| Operating Temperature: | -20C~65C |
| Adjustable Locking Delay: | 0~15sec |
| Dimensions: | 225Lx195Wx82H(mm) /9.0Lx8.0Wx3.80H(inch) |
| Weight: | 1.46KG/3.22LB |
Product Description
This product is a power supply control device with an input voltage range of AC 110-240V and an output voltage of DC 12V at a current of 5A.
It features stable and adjustable voltage output and is housed in a metal boxed cabinet, providing reliable protection and heat dissipation. The device also includes a backup battery link function for providing alternative power during power outages. It is mainly suitable for applications such as burglar alarms, CCTV cameras, PTZ (Pan-Tilt-Zoom) devices, and access control systems.
Please note that the battery is not included when purchasing.
Package:
- 1 x Power Supply
- 2 x keys
- 1 x red wire
- 1 x black wire
- 1 x User manual
LED indicator light
Circuit board indicator lights (standby red light, trigger green light).
Indicator light signal line interface.
The manual power switch is used to manually control the on-off state of the power supply. With the manual power switch, users can manually turn the power on or off to control the device's power supply.
delay switch
Based relay control circuit, lock time can be adjusted with 0 -15 seconds
