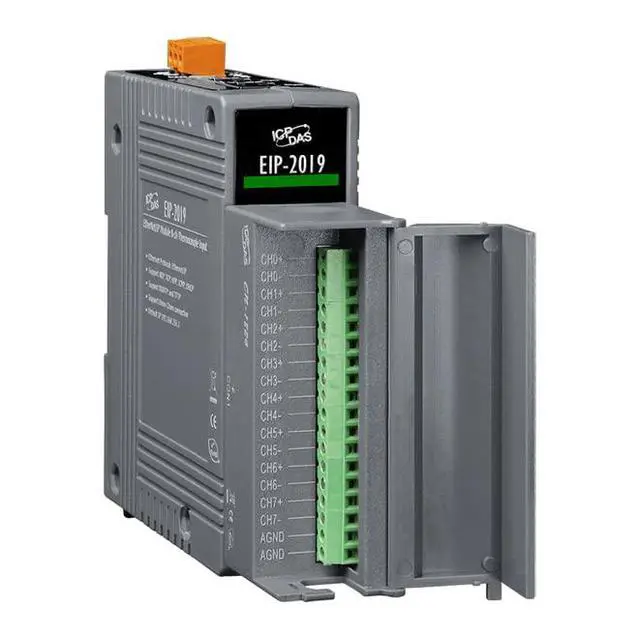

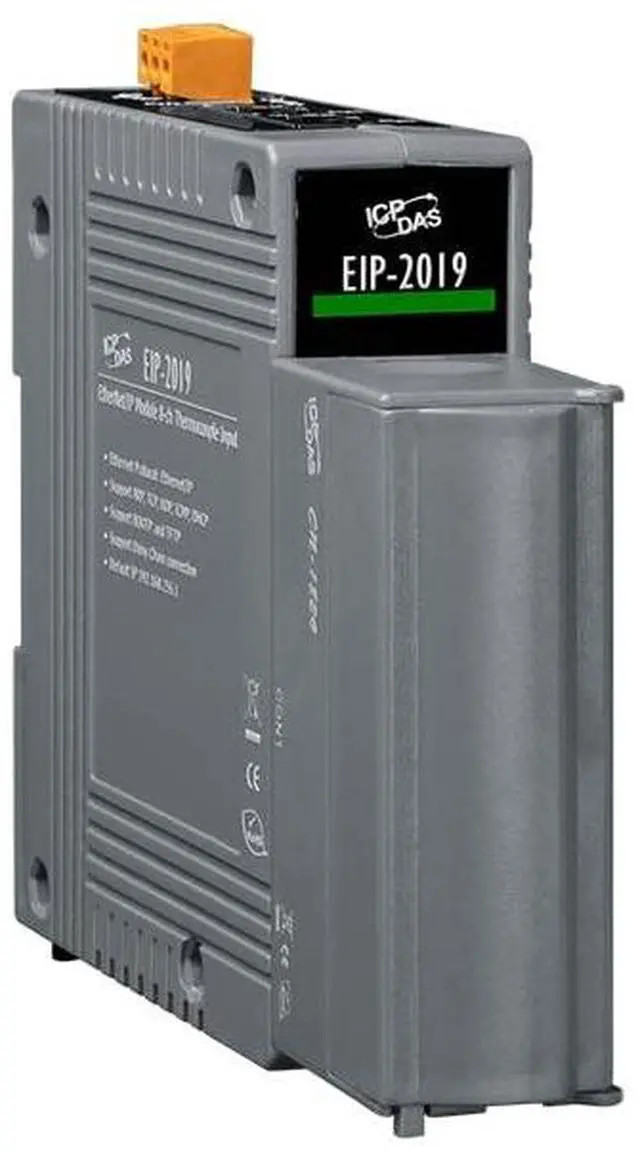

EIP-2019/S: Ethernet/IP 8 Channel Thermocouple DAQ Module

The EIP-2019/S is an 8-channel remote analog input module. It supports not only voltage and current (internal resistors selectable) input type but also thermocouple type with B, C, E, J, K, N, R, S, T. There is an automatically cold-junction compensation (CJC) for each channel. The accuracy of the measurement is smaller than 0.1 % FSR. The Module is designed as an EtherNet/IP adapter. Users can obtain the input status as well as the connection status of the EIP-2019/S by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.
Learn more:
http: //www. icpdas-usa. com/eip_2019. html? r=amazon
