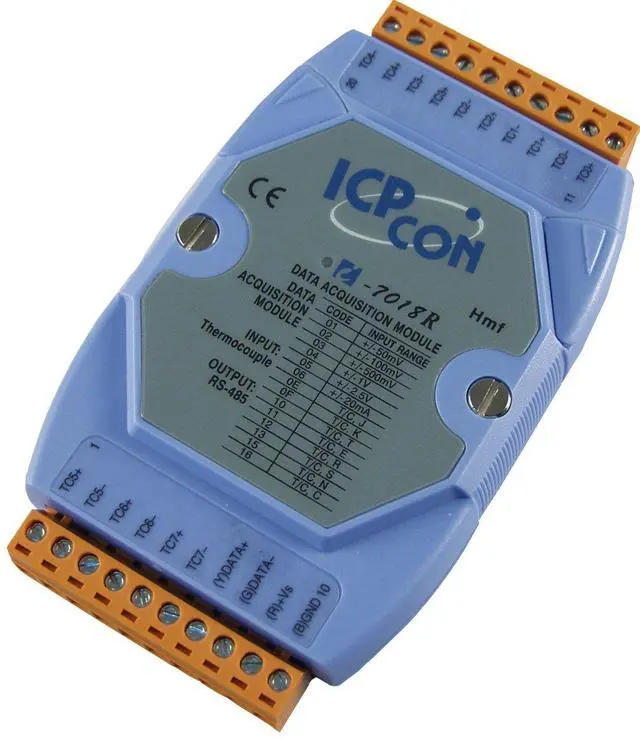

    I-7018R (with ESD Protection) 8 Channel Voltage & Current Thermocouple Input Data Acquisition Module communicable Over RS-485

    Be the first to review this product...
    • Current Input, Voltage Input and Thermocouple Input. Support input types: +/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1V, +/-2.5V, +/-20 mA (requires optional external 125 ohm resistor). Thermocouple Type: J, K, T, E, R, S, B, N, C, L, M; Over Voltage Protection is up to 240 Vrms. Open Thermocouple Detection. 4KV ESD Protection. 3000 VDC Intra-Module Isolation.; Can be used for a wide range of valuable industrial control signals and systems. DIN rail mountable.; Comes with free EZ Data Logger Software for data logging. Library functions and demo programs are provided; Communicates over RS-485. Supports operating temperatures of -25C ~ +75C (-137F ~ +167F).
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    8 Channel Voltage & Current Thermocouple Input Data Acquisition Module with FREE EZ Data Logger Software. I-7018BL and I-7018R have Break Line protection. I-7018R has High Voltage Protection communicable over RS-485. Supports operating temperatures between -25 to 75C (-13F ~ 167F). I-7018R is an analog input module with an extremely excellent protection mechanism where over voltage protection is up to 240 Vrms. Its input type includes current, voltage as well as thermocouple. Naturally, I-7018R is an upgraded version of I-7018; the only difference is that the I-7018R is much more suitable for critically harsh environment! Moreover, a newly-added feature for open thermocouple detection makes I-7018R more sweet than ever.

    I-7018R also has qualifi cation for 4KV ESD protection and 3000 VDC intramodule isolation.
