4K Video Wall Controller 2x3 HDMI TV Wall Processor 2x3 2x2 3x2 6 Screen Video Stitching Processor Splicer with Audio Extraction
Product Introduction

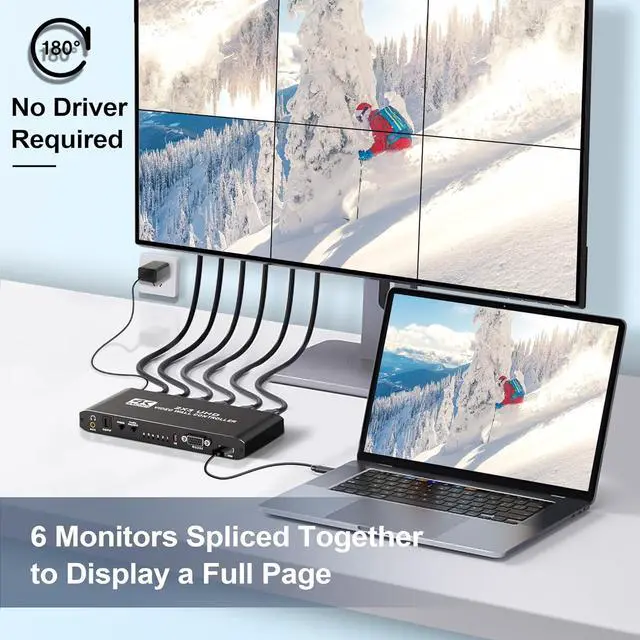

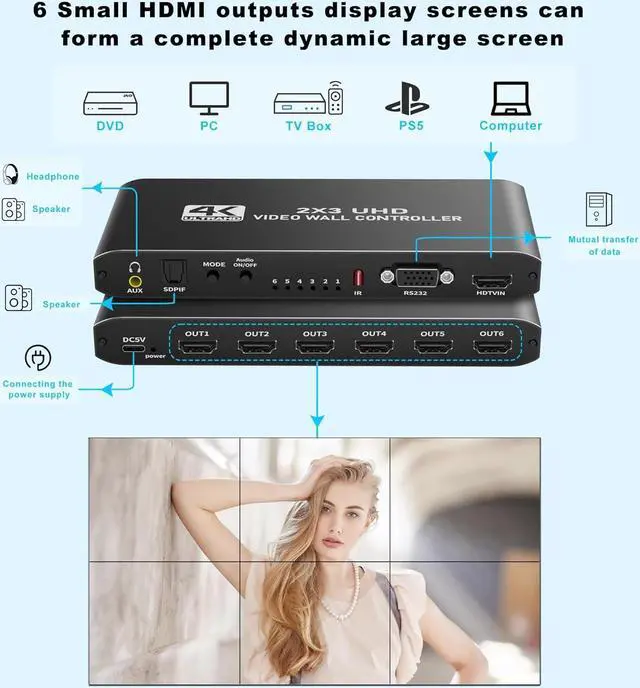

The 4K 2X3 video wall controller, support 1-way HDMI input and 6 HDMl output, the mainfunction is to divide a complete HDMI HD imagesingal into 6 blocks and assign to 6 video display unit(such as rear projection unit, LCD TV, etc.). Completewith 6 HDMI high-definition video display units toform a large dynamic image screen.
Features:
*Supports HDMI input.
*Input support HDMI1.4, HDCP1.4.
*Input format: RGB/YUV24bit;
*Output format: RGB444 24bit.
*Support 2X3 stitching, easy operation, plug and play;
*Input support 1920x1080P25/30/50/60Hz,3840x2160P 24/30H
*Support Six HDM output, one 3.5mm stereooutput.
*Output support 4k 30HZ;
*Supports RS232
*Supports remote control
*DC5V / 2A power supply
Detail Description

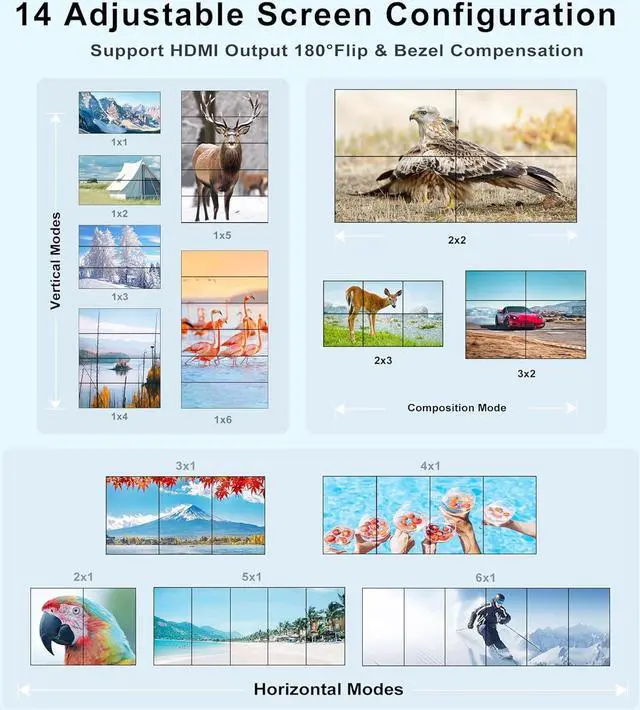

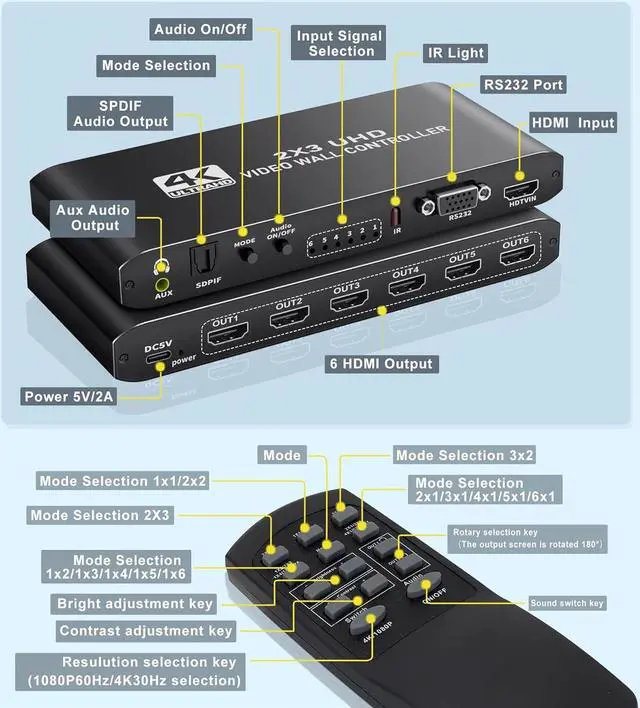

MODE selection key: The order of modes by MODE key is 1x1, 1x2, 1x3, 1x4, 1x5,1x6, 2x1, 2x2, 2x3, 3x1, 3x2, 4x1,5x1, 6x1
Note:
The remote control does not come with a battery when itis delivered. Please buy a pair of No. 7 batteries for the first time.Please keep the environment clean, not in the harshenvironment, such as humidity, high temperature, radiation,toxic gas environment.Please do not disassemble the case to avoid damaging theproduct.

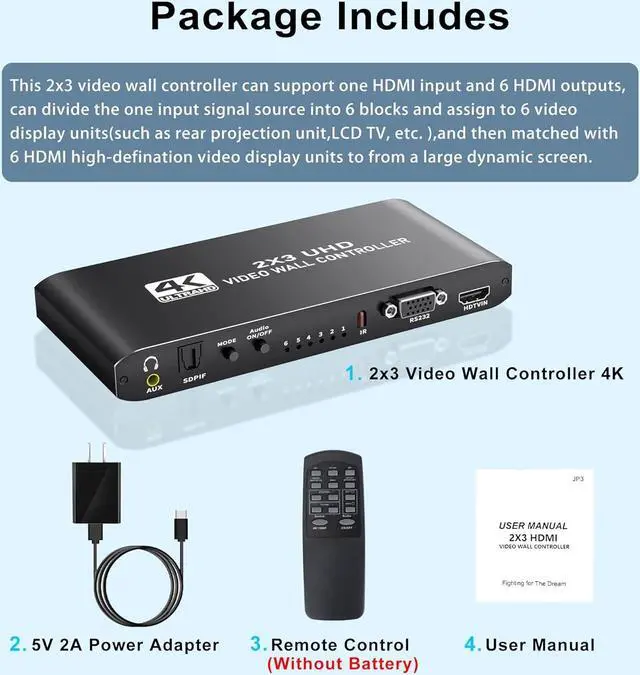

Package Includes:
*4K 2X3 video wall controller *1
*1Infrared remote control *1
*1User Manual*1
* 5V/2A power adapter*1
