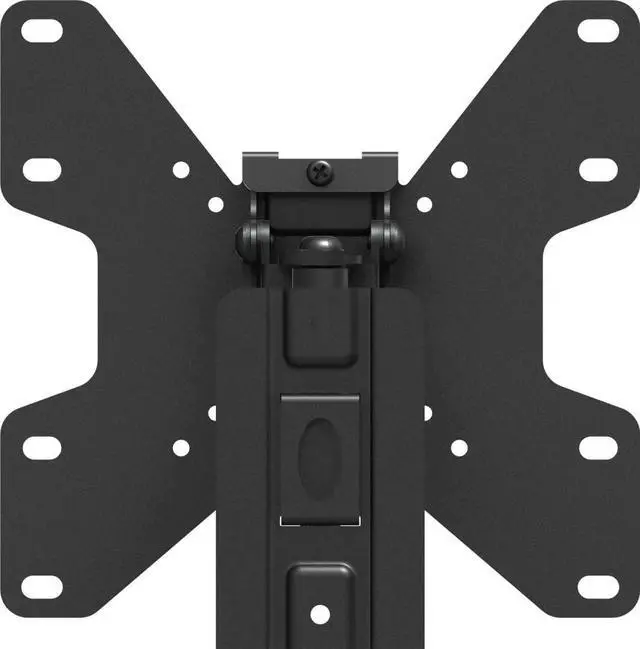

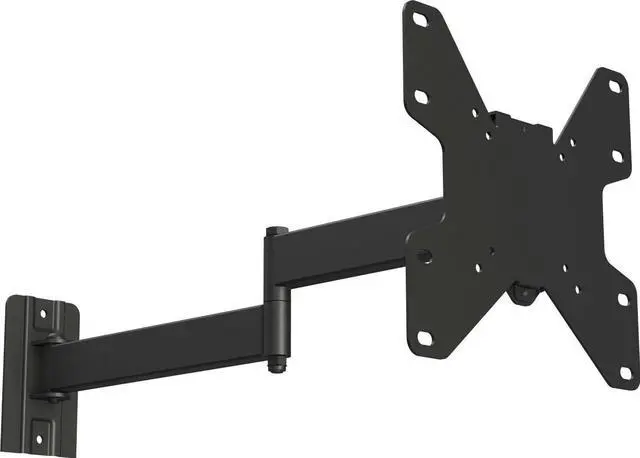

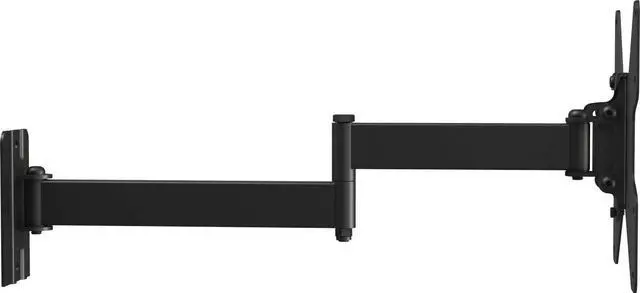

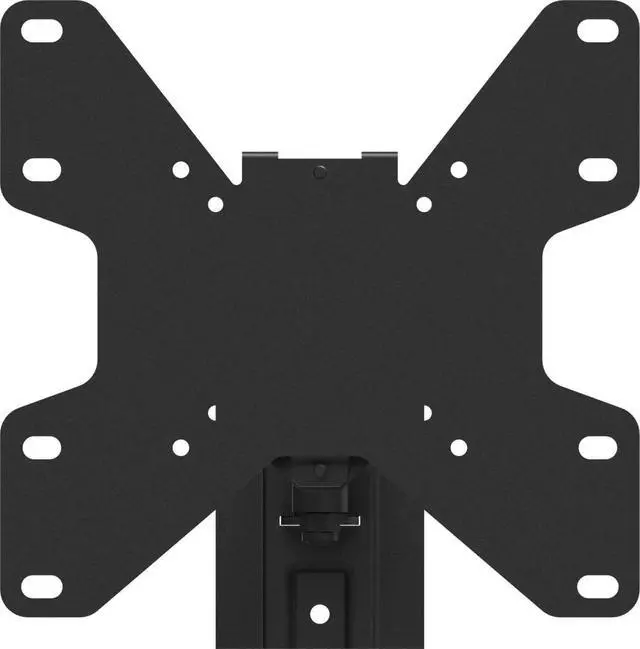

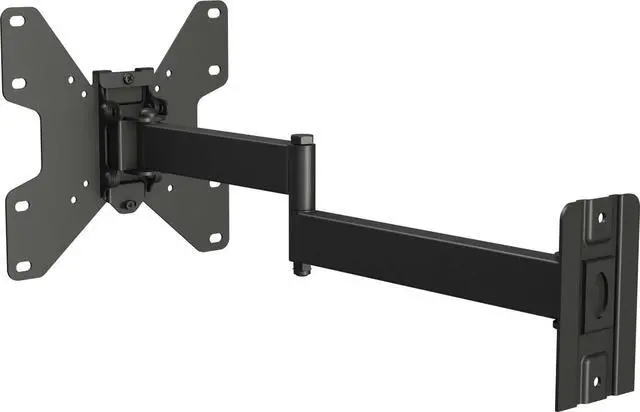

Crimson A41M Full Motion Articulating Mount for 13"-49" Flat Panel Screens, Black, +10° Forward Tilt/-2° Backwards Tilt, 3° of Roll, Up to 20.4" of Extension, Closes to Depth of 2" from The Wall

Crimson A41M Full Motion Articulating Mount for 13"-49" Flat Panel Screens, Black, +10° Forward Tilt/-2° Backwards Tilt, 3° of Roll, Up to 20.4" of Extension, Closes to Depth of 2" From the Wall

Full motion articulating wall mount for 13"- 49" displays. Single arm holds display 2" from wall when retracted and 20.4" when fully extended. Smooth tilt adjustments of +10° (forward) -2° (back) and 3° of side-to-side roll facilitates a variety of viewing angles and perfect positioning. Two attachment points for wood studs and concrete walls provide additional security. Optional cable management for clean look.

KEY FEATURES
- Retrofits most welding equipment with a simple receptacle selection
- For environments where a non-watertight housing is suitable
- 2 holes provided for rigid mounting to floor or equipment
- Supplied with a 6 ft. 18/4 cordset without plug
- Wired three leads to lead to ground potentiometer and green

SPECIFICATIONS
- TV size range: 13"-49"
- Weight capacity: 30 lbs.
- Max mounting pattern: 200x200mm
- VESA mounting patterns: 75x75mm, 100x100mm, 200x100mm, 200x200mm
- Depth from wall: 2"
- Max extension: 20.4"
- Tilt: +10°/-2°
- Pivot: 180°
- Roll (side to side): 3°
- Mounting surface: Wood stud, concrete or cinder block
- Stud spacing: Single stud
- Construction: Aluminum/high-grade cold rolled steel
- Product finish: Scratch resistant epoxy powder coat
- Color: Black
- Dimensions: 35.56 × 27.9 × 20.3 cm
- Weight: 7.5 lbs
