Data-Tronix DT-IPTV-QAM-ASI-2H Dual HDMI Digital Encoder Modulator

Data-Tronix DT-IPTV-QAM-ASI-2H Dual HDMI to IPTV QAM RF & ASI Digital Encoder Modulator

1. Dual HDMI Input Real-Time Video Encoding: Accepts up to two uncompressed HDMI digital video sources and encodes them in high-definition MPEG-2 or H.264 (MPEG-4 AVC) video formats with AC3 / MPEG-1 Layer II audio encoding.
2. Simultaneous Multi-Protocol Output Capabilities: Features simultaneous output across clear QAM RF digital cable channels (Annex A/B), IP streams (MPTS/SPTS via UDP/RTP), and ASI (Asynchronous Serial Interface) transport streams for maximum distribution flexibility.
3. Agile QAM RF Modulator Architecture: Built-in frequency-agile RF modulator supports user-definable cable channels (CATV 2135 / ITU-T J.83 Annex A/B) with high MER (40 dB) and high RF output level up to +45 dBmV.
4. Full IPTV Stream Generation: Outputs unicast and multicast IP transport streams over Gigabit Ethernet, allowing seamless integration into local area IP networks, digital signage ecosystems, and hospitality IPTV headends.

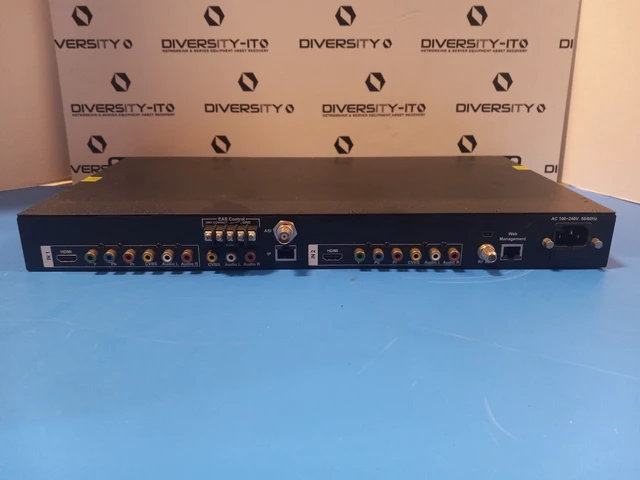

5. EAS & Emergency Alert Insertion Compatibility: Equipped with a dedicated composite video / audio input for Emergency Alert System (EAS) signal override, automatically interrupting active programming during critical broadcast alerts.

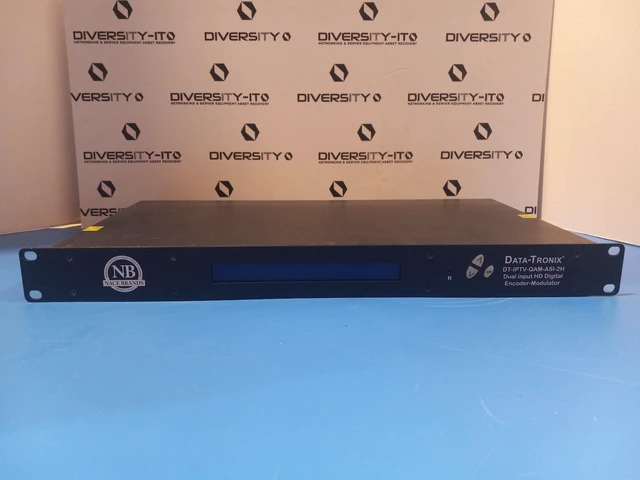

6. Comprehensive User Control & Remote Management: Managed through a straightforward front-panel LCD display with navigation buttons or via an intuitive built-in web GUI over an independent Ethernet management port.
7. Compact 1U Rackmount Headend Form Factor: Industrial-grade metal 1U rackmount chassis designed for continuous 24/7/365 operation in commercial headends, sports bars, schools, healthcare facilities, and corporate video networks.

The Data-Tronix DT-IPTV-QAM-ASI-2H is a commercial-grade 1U rackmount digital encoder modulator designed for broadcast headends, hospitality TV distribution systems, sports bars, enterprise digital signage, and institutional media networks. Capable of ingesting two independent HDMI video sources up to 1080p resolution, the DT-IPTV-QAM-ASI-2H simultaneously converts video signals into clear QAM RF channels, IP transport streams, and ASI digital outputs.

Supporting both MPEG-2 and H.264 (AVC) video encoding alongside Dolby AC3 audio compression, this versatile encoder fits into legacy coaxial cable infrastructure and modern Gigabit IPTV networks alike. The unit includes an Emergency Alert System (EAS) input for automated emergency broadcast overrides, front-panel LCD navigation, and an intuitive web-based GUI for remote configuration. Built with an internal commercial-grade power supply and a heavy-duty metal chassis, the Data-Tronix DT-IPTV-QAM-ASI-2H delivers high reliability for round-the-clock video distribution.
