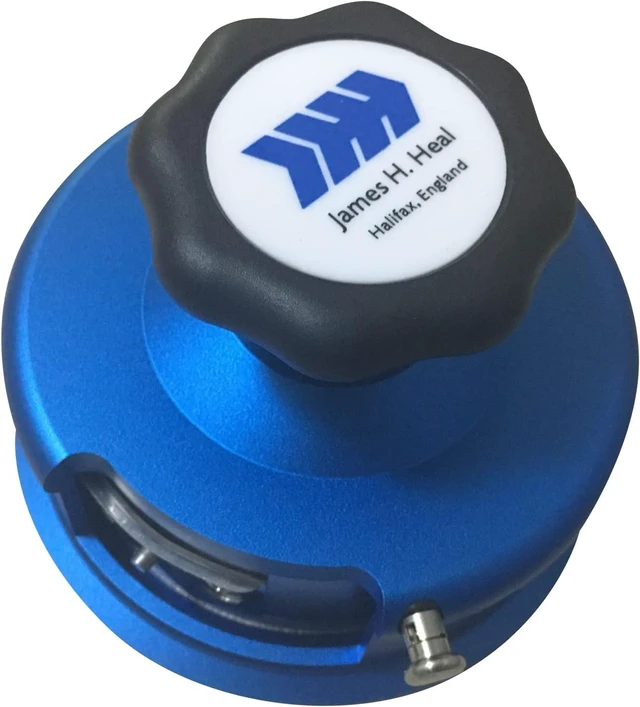

GLTL GSM Weight Cutter for Textile Fabric Paper Round Cloth Sample Textile, Fabric, Paper, Round Cloth Sample

Conformity standard ASTM D3776,BS 2471,IWS TM13,JIS L1018 /L1096.Used to cut all kinds of textiles,carpet,cardboard include:wool fabrics,cotton fabrics,man-made fabrics and knitting products.
Cutting area:100 sq cm Double-edged blades,both sides can be used,more durable the weight of the cutting sample times 100,you can easily calculate the weight per square meter accurate cutting area.

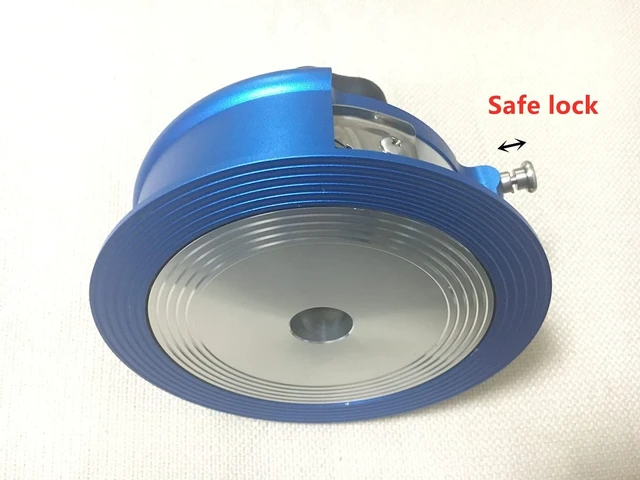

Usage: Put the tile need to be cut on the rubber mat fabric, put the disc sampler on the fabric, pull the locking device on the sampler, rotated about 90 degrees, hand held onto the cover, one hand holding the corrugated hand wheel, and exert a certain pressure, and then ripple hand wheel clockwise (angle greater than 90 degrees), then the circle and cut the sample.

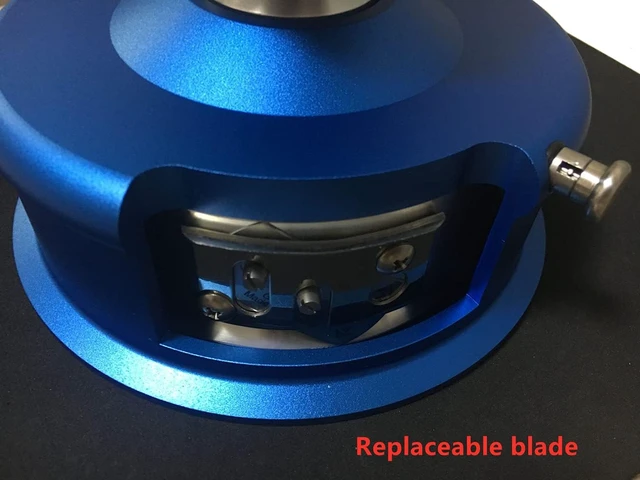

Double blade cutter blade to a total of four pieces of circular external four equal parts, the blade can be replaced, the specific operation is: Loosen the Phillips screws (four screws on each piece), remove the blade plate and sampling blade change a new blade, the pressure on the blade plate, note the blade clockwise tangential mouth, and make four incisions in the same plane, and then tighten the Phillips screw.The bottom of the instrument has ruled nicks, for fixed specimens, easy to c

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Conformity standard ASTM D3776,BS 2471,IWS TM13,JIS L1018 /L1096.Used to cut all kinds of textiles,carpet,cardboard include:wool fabrics,cotton fabrics,man-made fabrics and knitting products.
Cutting area:100 sq cm Double-edged blades,both sides can be used,more durable the weight of the cutting sample times 100,you can easily calculate the weight per square meter accurate cutting area.
Usage: Put the tile need to be cut on the rubber mat fabric, put the disc sampler on the fabric, pull the locking device on the sampler, rotated about 90 degrees, hand held onto the cover, one hand holding the corrugated hand wheel, and exert a certain pressure, and then ripple hand wheel clockwise (angle greater than 90 degrees), then the circle and cut the sample.
Double blade cutter blade to a total of four pieces of circular external four equal parts, the blade can be replaced, the specific operation is: Loosen the Phillips screws (four screws on each piece), remove the blade plate and sampling blade change a new blade, the pressure on the blade plate, note the blade clockwise tangential mouth, and make four incisions in the same plane, and then tighten the Phillips screw.The bottom of the instrument has ruled nicks, for fixed specimens, easy to c
