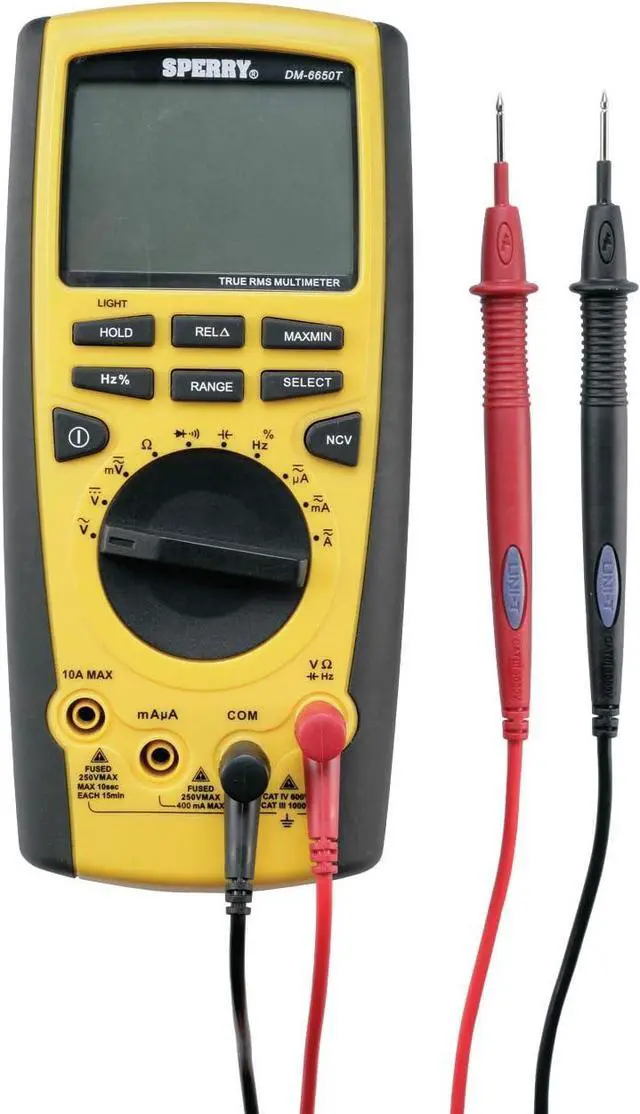

Sperry Instruments DM6650T True RMS Digital Multimeter, 10 Function, 750/1000V AC/DC, 10A Current, Continuity, 10 Auto Range
- Precise True RMS circuitry for accurate readings of non-linear waveforms
- Integrated non-contact AC/DC Voltage detection, AC/DC Current, Resistance, Frequency and Capacitance
- Relative Delta displays change in readings and large backlit LCD display with bar graph indication
- Compact, impact resistant, lightweight design with a durable heavy-duty over-molded ABS housing rubber boot
- Includes test lead input icons for correct lead placement with positive and negative electrical test leads
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
The Sperry TRMS 10 Function Digital Multimeter has precise True RMS circuitry for accurate readings of non-linear waveforms. Non-contact voltage detection is integrated into the multimeter design. This multimeter is equipped with a min/max function to hold either minimum reading or maximum reading on the display. Relative Delta displays change in readings. Data hold feature captures reading on the display. Large backlit LCD display with bar graph indication. Impact resistant housing with protective rubber boot. Operates from one 9V battery (included).
From the Manufacturer
The Sperry TRMS 10 Function Digital Multimeter has precise True RMS circuitry for accurate readings of non-linear waveforms. Non-contact voltage detection is integrated into the multimeter design. This multimeter is equipped with a min/max function to hold either minimum reading or maximum reading on the display. Relative Delta displays change in readings. Data hold feature captures reading on the display. Large backlit LCD display with bar graph indication. Impact resistant housing with protective rubber boot. Operates from one 9 volt battery (included).
DC Voltage: Range = 40mV/400mV/4V/40V/400V/1000V Accuracy = 40mV ( 1.2 %+5dgt) 400mV ( 0.8 %+3dgt) 4V 40V 400V ( 0.8 %+1dgt) 1000V ( 1.0 %+3dgt) AC Voltage Range = 40mV/400mV/4V/40V/400V/750V Accuracy = 40mV ( 1.2 %+5dgt) 4V 40V 400V ( 1.0 %+ 5dgt) 400mV 750V ( 1.2 %+5dgt)
Non Contact AC Voltage: Range = 801000V AC DC Amps 400uA/4000uA/40mA/400mA/4A/10A Accuracy = 400A 4000A ( 1.0 %+2dgt) 40mA 400mA ( 1.2 %+3dgt) 4A 10A ( 1.5 %+5dgt) AC Amps 400uA/4000uA/40mA/400mA/4A/10A Accuracy = 400A 4000A ( 1.2 %+2dgt) 40mA 400mA ( 1.5 %+3dgt) 4A 10A ±( 2.0 %+3dgt)
Resistance: Range = 400/4K/40K/400K/4M/40M Accuracy = 400 4M ( 1.2 %+2dgt)4K 40K 400K ( 1.0 %+2dgt) 40M ( 1.5 %+2dgt)
Capacitance: Range = 40nF/400nF/4uF/40uF/400uF/4000uF Accuracy = 40F ( 3.0 %+10dgt) 400F 4F 40F ( 3.0 %+5dgt) 400F 40000F ( 4.0 % +5dgt)
Frequency: Range = 100Hz10MHz 0.1 %+3dgt
Diode Test: YES
Continuity: YES CAT Rating IV 600V, III 1000V CONFORMS TO UL STD. 61010-1 & 61010-031 CERTIFIED TO CAN/CSA STD C 22.2 Nos. 61010-1 & 61010-031 INTERTEK LISTED CM C US CONFORMS TO UL STD. 61010-1 & 61010-031 CERTIFIED TO CAN/CSA STD C 22.2 Nos. 61010-1 & 61010-031 INTERTEK LISTED CM
The Sperry TRMS 10 Function Digital Multimeter has precise True RMS circuitry for accurate readings of non-linear waveforms. Non-contact voltage detection is integrated into the multimeter design. This multimeter is equipped with a min/max function to hold either minimum reading or maximum reading on the display. Relative Delta displays change in readings. Data hold feature captures reading on the display. Large backlit LCD display with bar graph indication. Impact resistant housing with protective rubber boot. Operates from one 9V battery (included).
From the Manufacturer
The Sperry TRMS 10 Function Digital Multimeter has precise True RMS circuitry for accurate readings of non-linear waveforms. Non-contact voltage detection is integrated into the multimeter design. This multimeter is equipped with a min/max function to hold either minimum reading or maximum reading on the display. Relative Delta displays change in readings. Data hold feature captures reading on the display. Large backlit LCD display with bar graph indication. Impact resistant housing with protective rubber boot. Operates from one 9 volt battery (included).
DC Voltage: Range = 40mV/400mV/4V/40V/400V/1000V Accuracy = 40mV ( 1.2 %+5dgt) 400mV ( 0.8 %+3dgt) 4V 40V 400V ( 0.8 %+1dgt) 1000V ( 1.0 %+3dgt) AC Voltage Range = 40mV/400mV/4V/40V/400V/750V Accuracy = 40mV ( 1.2 %+5dgt) 4V 40V 400V ( 1.0 %+ 5dgt) 400mV 750V ( 1.2 %+5dgt)
Non Contact AC Voltage: Range = 801000V AC DC Amps 400uA/4000uA/40mA/400mA/4A/10A Accuracy = 400A 4000A ( 1.0 %+2dgt) 40mA 400mA ( 1.2 %+3dgt) 4A 10A ( 1.5 %+5dgt) AC Amps 400uA/4000uA/40mA/400mA/4A/10A Accuracy = 400A 4000A ( 1.2 %+2dgt) 40mA 400mA ( 1.5 %+3dgt) 4A 10A ±( 2.0 %+3dgt)
Resistance: Range = 400/4K/40K/400K/4M/40M Accuracy = 400 4M ( 1.2 %+2dgt)4K 40K 400K ( 1.0 %+2dgt) 40M ( 1.5 %+2dgt)
Capacitance: Range = 40nF/400nF/4uF/40uF/400uF/4000uF Accuracy = 40F ( 3.0 %+10dgt) 400F 4F 40F ( 3.0 %+5dgt) 400F 40000F ( 4.0 % +5dgt)
Frequency: Range = 100Hz10MHz 0.1 %+3dgt
Diode Test: YES
Continuity: YES CAT Rating IV 600V, III 1000V CONFORMS TO UL STD. 61010-1 & 61010-031 CERTIFIED TO CAN/CSA STD C 22.2 Nos. 61010-1 & 61010-031 INTERTEK LISTED CM C US CONFORMS TO UL STD. 61010-1 & 61010-031 CERTIFIED TO CAN/CSA STD C 22.2 Nos. 61010-1 & 61010-031 INTERTEK LISTED CM
