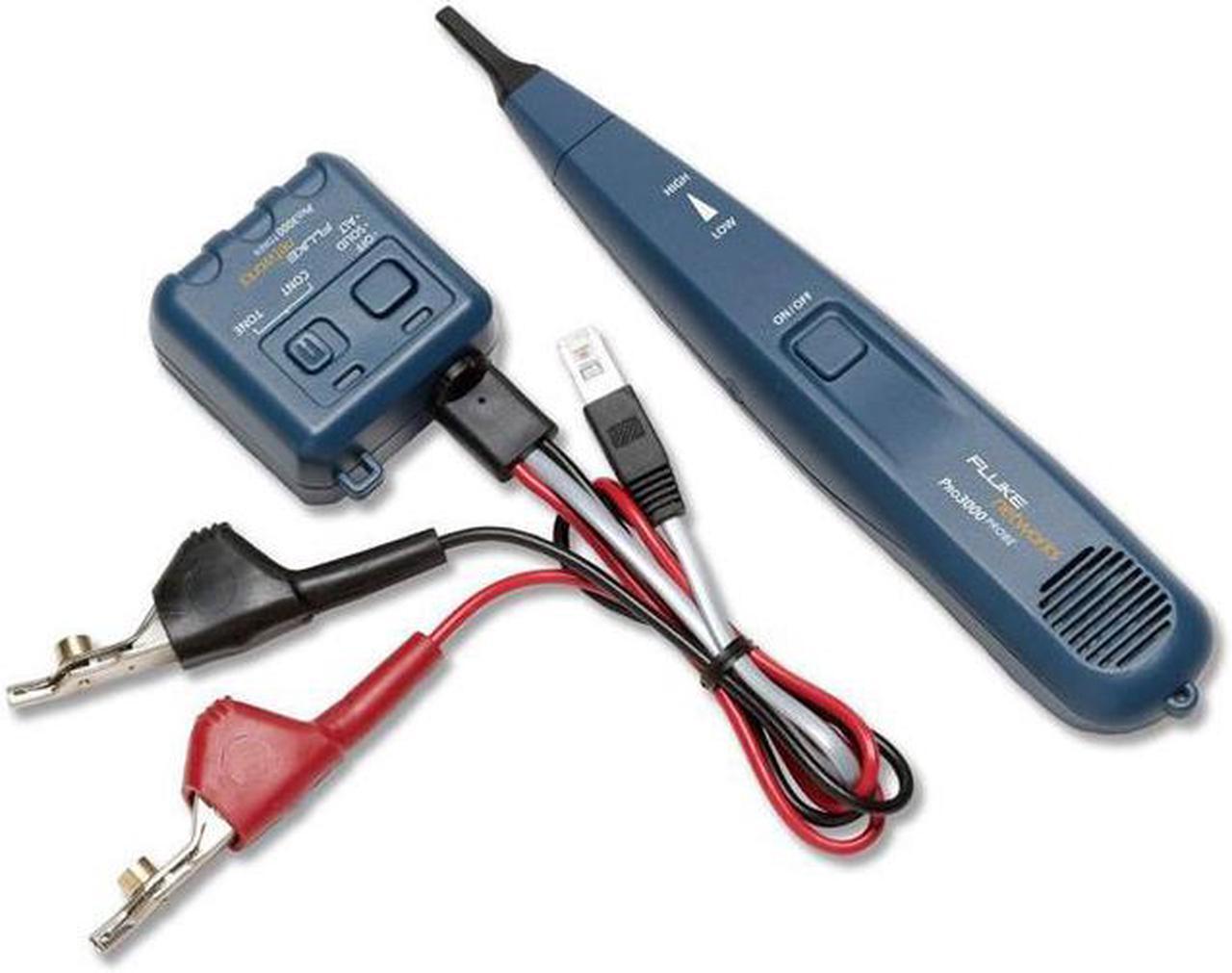

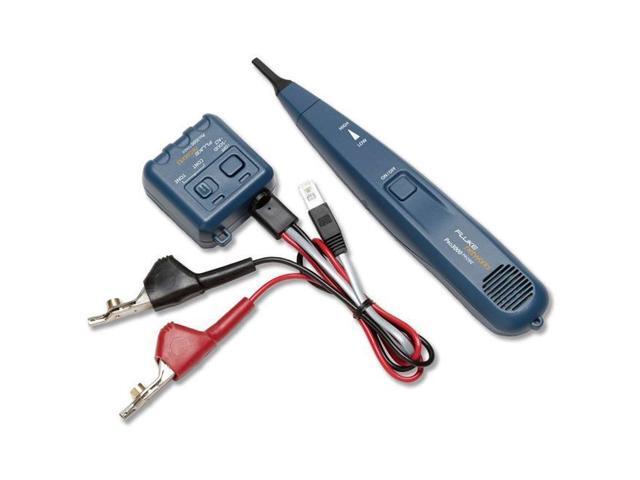

Fluke Electronics FLK-26000900 Pro3000 Analog Tone & Probe Kit

The Pro3000 Analog Tone and Probe are your best choice for toning and tracing wire on non-active networks- and specifically for identifying individual pairs with Smart
Tone technology. Angled bed-of-nails clips allow easy access to individual wires- and the RJ11 connector is ideal for use on telephone jacks. The large loud speaker on the probe allows you to hear through drywall- wood or other enclosures to find wires quickly and easily. You can send this loud tone up to 10 miles on most cables! Use the Smart
Tone capability of the Pro3000 Tone Generator to identify the right pair. When touching the wires together and momentarily shorting the far end of a cable pair- the Smart
Tone technology will change the cadence of the tone generated. This tone change you hear through the probe positively verifies the correct wire pair. Smart
Tone provides five distinct tones for exact pair identification. Features Smart
Tone technology Send tone signal up to 10 miles on most cables Line cord features angled bed-of-nails clips and ruggedized RJ-11 plug for direct access to phone and data jacks without adapters Continuity testing Line polarity confirmation Loud large speaker amplifies tone through walls- enclosure- wood or plaster? Quick-twist? tip for easy replacement Free spare tip inside Pro3000 Tone and Probe Kit Pro3000 Analog Toner Pro3000 Analog Tone & Probe Kit
Specifications Solid Frequency: 1000 Hz nominal
Alternating Frequency: 1000-1500 Hz nominal Over
Voltage Protection: 60 Vdc in Toner-Polarity Mode Output Power in
Tone Mode: 8 dbm into 600 ohms
Battery: 9V alkaline
Battery: 9V
Alkaline User interface: Slide switch selects Continuity or Tone Mode- push button switch selects SOLID- ALT or OFF- Tone mode LED- Continuity-Polarity LED
