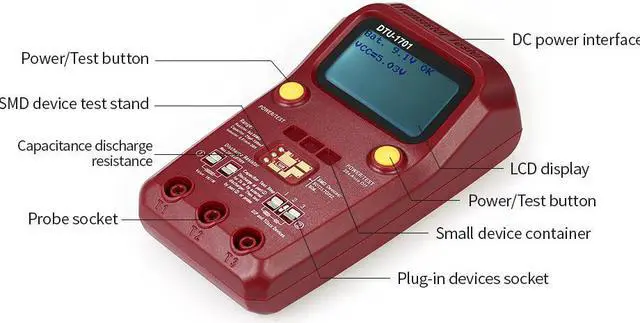

Handheld LCD Digital multimeter Transistor Tester SMD Resistance Diode Inductance Capacitance ESR Meter

Specifications:Material: ABS Input Voltage: 9V-12VCurrent: Approx. 20mAResistance Measurement: 0M~50MResistance Resolution: 0.01Capacitance Measurement: 25pF~100mFCapacitance Resolution: 1pFInductance Measurement: 0.01mH-20HInductance Resolution: 0.01mHESR Resolution: 0.01Power Supply: 1 * 9V Battery(Not Included)Item Size: 13.5 * 7.8 * 4.2cm / 5.3 * 3.1 * 1.7in Item Weight: 138g / 4.9ozPackage Size: 17.3 * 10 * 6cm / 6.8 * 3.9 * 2.4inPackage Weight: 220g / 7.8ozNote: Before measuring capacitance, the capacitor must be discharged, otherwise the meter will be damaged. Features:LCD display with backlight for easy reading.Handheld design for easy operation.Automatic detection of NPN and PNP bipolar transistors, N-Channel and P-Channel MOSFETs, JFETs, diodes, double diodes, Thyristors and bidirectional thyristor.Measure of current amplification factor and base-emitter threshold voltage of bipolar transistors.With a typical ESR value, convenient to judge the detected capacitor's quality.It can detect SMD, bipolar transistors and MOS transistors protection diodes.Can measure the gate threshold voltage and the gate capacity value of MOSFET.Resistance measurement resolution is 0.01 ohms, 50M ohms can be measured.It can measure capacitance of 25pF~100mF, resolution 1pF.Includes auto power off function to extend the service life.
