Bside ACM82 Digital True RMS Mini Clamp Meter Auto Range 0.001A Current Test Hz Temp Ohm uF V-alert Live Check with Pocket Clip (Black)

Design concept: function integration, test integration. AC/DC voltage, AC Current (by jaw minimum 1mA), DC Current (by terminals minimum 0.1 uA) Temperature, Frequency, Capacitance, DC microampere, Resistance, LIVE wire check, Dangerous voltage alert, with such a small size it meets the rules of the state has made the most perfect functions. LIVE wire check function and V ~ alert function conveniently quickly identify mains connection status. Display double line shows, can display voltage or current and frequency at the same time. LoZ, low impedance voltage detection, very suitable for maintenance industry We optimize the jaw, increased the pens and hustle, easy one-handed operation. We optimize jack position, better security and aesthetics, reduced the foreign body into the dust. We have added back hooks, convenient to carry
Features: Measure AC current (minimum 1mA by jaws) Measure DC current microamps A (minumum 0.1A by terminals) Measure AC and DC voltage Measure frequency Low impedance voltage measurement Measure resistance, continuity and capacitance Measure temperature Live check function V-alert measurement Clamp on frequency function Auto range, Auto power off, data hold, back light Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree
II Specifications:
Display: 6000 counts
AC current: 6A/60A/200A 0.001A / 0.01A / 0.1A ( 3.0 %+10counts)
DC current (A by terminals): 0-200A ( 0.8 %+5counts)
DC voltage: 6V/60V/600V 0.001V / 0.01V / 0.1V ( 1.0 %+3counts)
AC voltage: 6V/60V/600V 0.001V / 0.01V / 0.1V ( 1.0 %+3counts) Low impedance
LOZ: Max 600V
Resolution 0.1V Resistance: 600/6k/60k/600k/6M 0.1 / 0.001K / 0.01K / 0.1K / 0.001M ( 1.0 %+3counts) 60M 0.01M ( 1.2 %+20counts)
Capacitance: 600F/6000F 0.1F /1F ( 4.0 %+3counts)
Frequency: 60Hz/1000Hz 0.1H z/1Hz ( 1.0 %+5counts)
Frequency (by jaws): 60Hz/1000Hz 0.1H z/1Hz ( 1.0 %+5counts)
Buzzer: If the resistance is less than 30, the continuity beeper sounds
Temperature: -20~500/-4~932 1/2 ( 2.0 %+2counts)
Jaw Capacity: 20mm
Power: 1.5V (AAA) x 2 (not included)

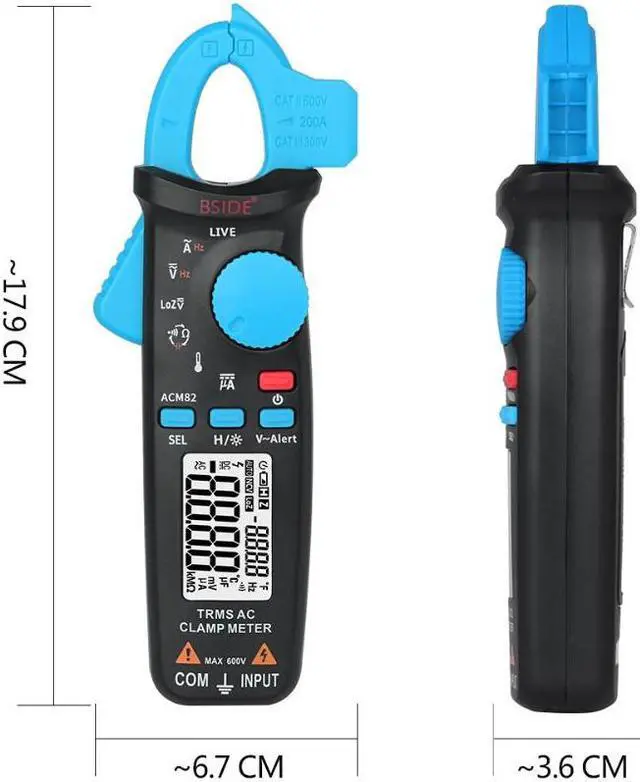

Size: 179mm x 67mm x 36 mm
Weight: 137g

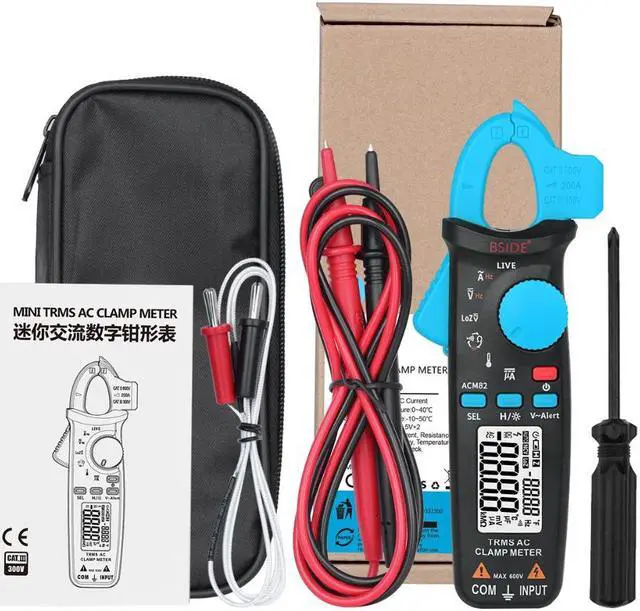

Package Includes: 1 x Digital Clamp Meter 1 x Test Leads 1 x Thermocouple 1 x Screwdriver 1 x Carrying Case 1 x User Manual
