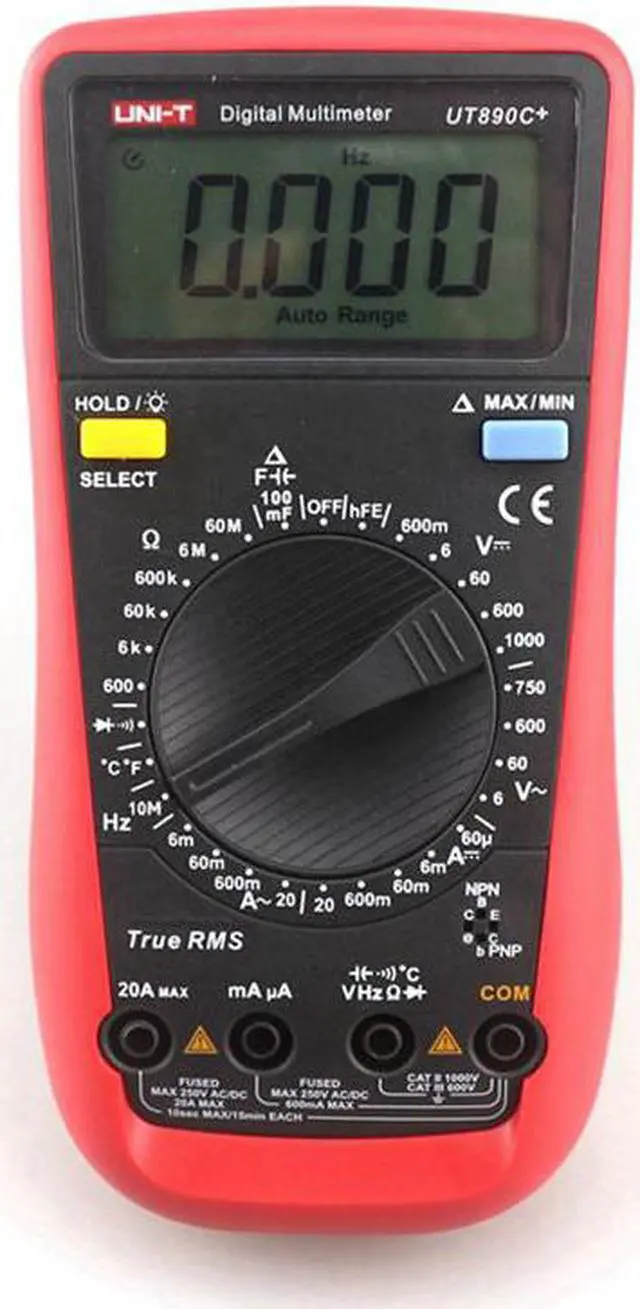

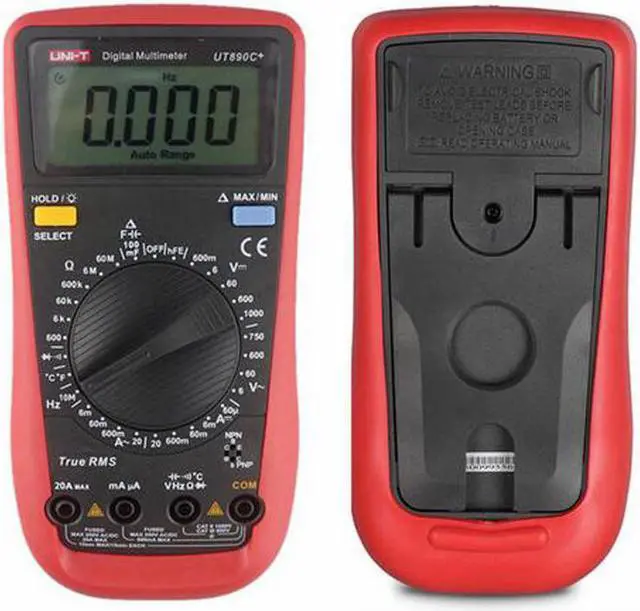

UNI-T UT890C+ True RMS Digital Multimeter C/F Temperature Capacitance Frequency Multi Meter Diode Tester Measuring Instruments

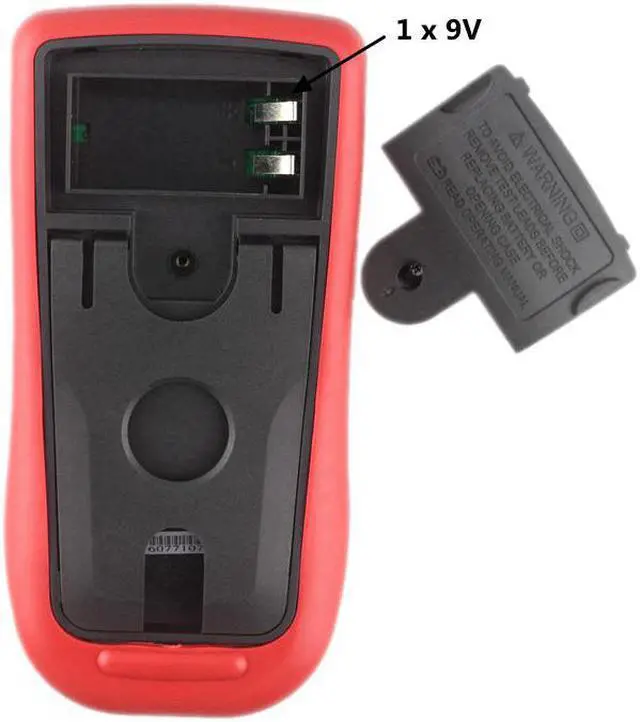

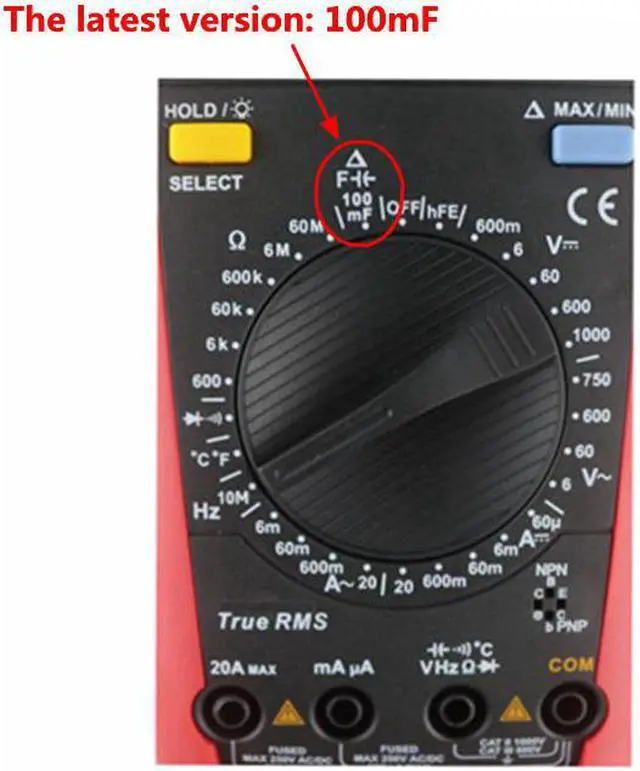

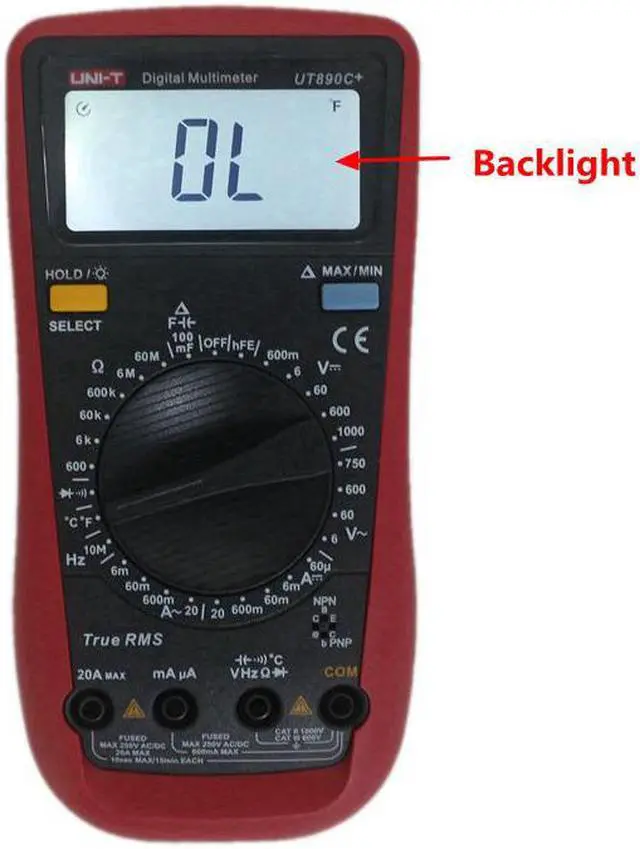

Basic Function Range Basic Accuracy Model UT890C+ Dc voltage V 600.0mV +/- (0.5%+4) 6.000V/60.00V/600.0V +/- (0.5%+2) 1000V +/- (0.7%+10) AC Voltage V 6.000V/60.00V/600.0V +/- (0.8%+3) 750V +/- (1.0%+10) AC Current A 6.000mA/60.00mA +/- (1.0%+12) 600.0mA +/- (2.0%+3) 20.00A +/- (3.0%+5) DC Current A 60.00uA/6.000mA/60.00mA +/- (0.8%+8) 600.0mA +/- (1.2%+5) 20.00A +/- (2.0%+5) Resistance 600 ohm +/- (0.8%+5) 6.000Kohm/60.00K ohm/600.0K ohm/6.000M ohm +/- (0.8%+3) 60.00M ohm +/- (1.0%+25) Temperature C -400 C~1000C +/- (1.0%+3) Temperature F -40F~1832F +/- (1.5%+5) Capacitance F 6.000nF +/- (5.0%+35) 60.00nF~600.0uF +/- (2.5%+20) 99.99mF +/- (5%+10) The frequency of Hz 9.999Hz~9.999MHz +/- (0.1%+5) Special Function Max./min. value YES True effective value measurement TRMS YES Diode test YES On the broken buzzer YES HFE YES REL YES Data retention YES LCD backlight YES Battery under Voltage YES Automatic shutdown About 15 minutes YES Input impedance >=10M ohm YES General Characteristics Use Environment 18C~28C( 64F ~82F ); Relative humidity: less than 75% Battery 9V Battery( 6F22 ) LCD Size 63mm x 29mm Body color Red + Grey Body weight 300g Body size 186mm x 91 mm x39mm 6000 Counts; voltage and current measurement; capacitor file with REL function, minimum resolution 1nF maximum can be measured to 100mF; with high accuracy of frequency measurement function, minimum resolution 0.001Hz; specific MAX\\MIN and MAX-MIN function; the minimum DC current of 0.01 A, AC current minimum resolution of 1 A, the maximum range of 20A; with the measurement of the pressure drop of 3V diode measurement function. Very suitable for measuring LED; with HOLD function, automatic shutdown and backlight function; with temperature measurement function, and can choose C or fahrenheit.
