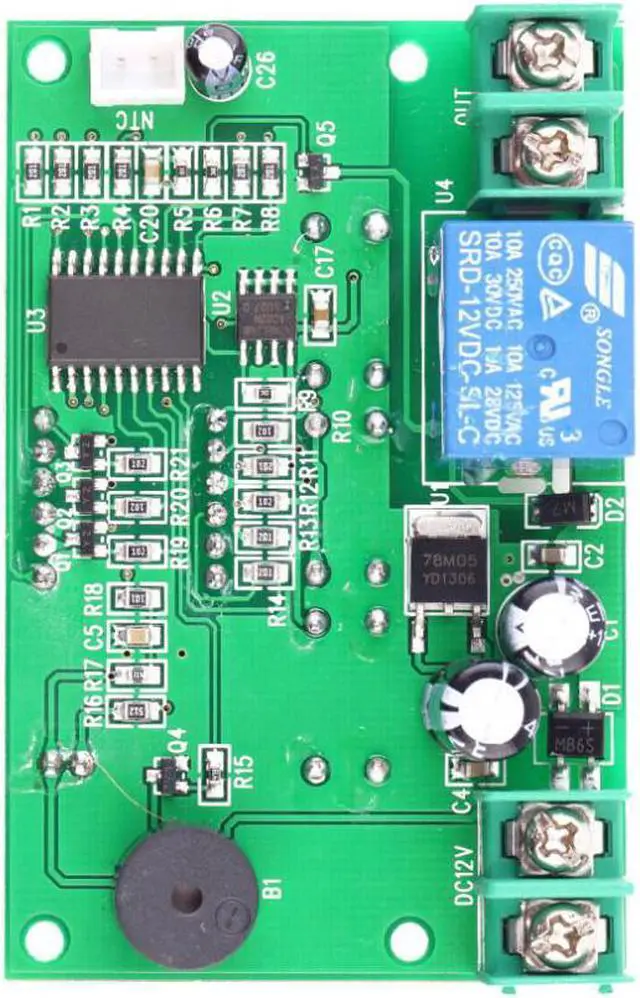

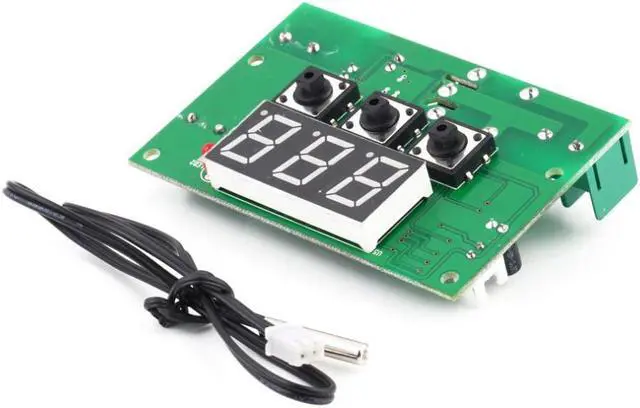

12V 10A Digital LCD Temperature Regulator Controller PCB Board Thermostat Sensor

How to

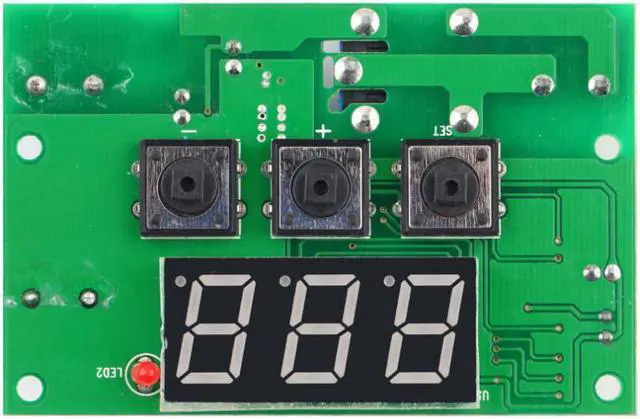

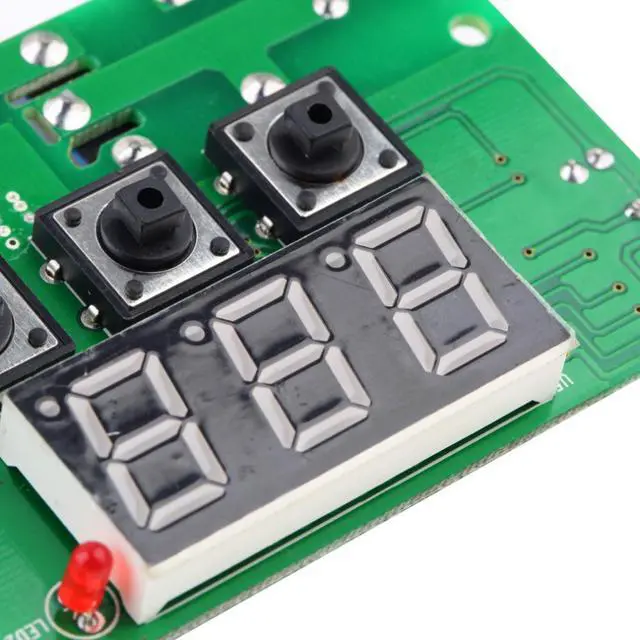

Use: Connect the power supplier and the device, which can power the controller. At the same time, it shows the measurement temperature, and press the "SET" button, the temperature of display flashes, then press + - to set the desired temperature (hold down the + -, which can quickly lift up and down). When the setting is completed, press the set button, then the controller automatically performs power cut-off relay by setting! The thermostat outputs 10A relay to meet a variety of high-power load. Link the good control circuit which can power the thermostat, and the display shows the ambient temperature.
Features: 100% brand new and high qualityWide temperature measuring range. Heating and cooling control. Temperature calibration function. Delay protection function. All parameters can be set to default setting after short circuit. A mini digital temperature controller with large and clear LCD display for better readability. Used for domestic freezer, water tanks, refrigerator, industrial chiller, boiler, steamer, industrial equipments and other temperature-controlled systems.
Specifications: Control
range: -50C
- 110degreeResolution: 0.1 degree( 9.9 ~ 99.9 degree) and
Other temperature period 1degreeMeasurement precision: 0.1
degreeControl precision: 0.1
degreeMeasurement error: 0.1
degreeRefresh rate: 0.5
SInput power: 12VMeasurement
of the input: NTC(10K
0.5 %)Waterproof type sensorOutput: 12V 20AEnvironmental
Requirement: -10~60degree
Humidity 20%-85%Overall power consumption: Static
electricity: 35MA, operating
current:
65MASize: Approx. 3.07 x 2.02 inch/ 7.8 x 5.9 cm (Mounting holes M3.
The diagonal 75mm)Cable Length: 34cm
