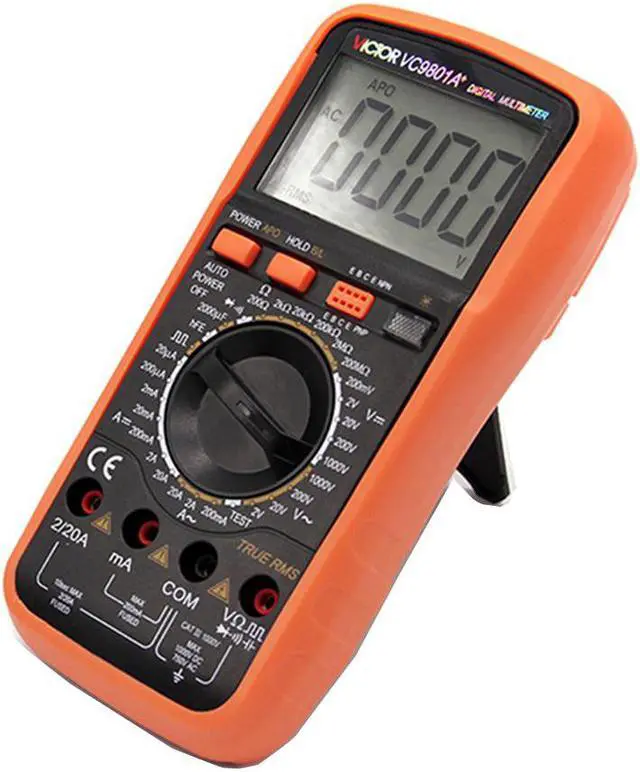

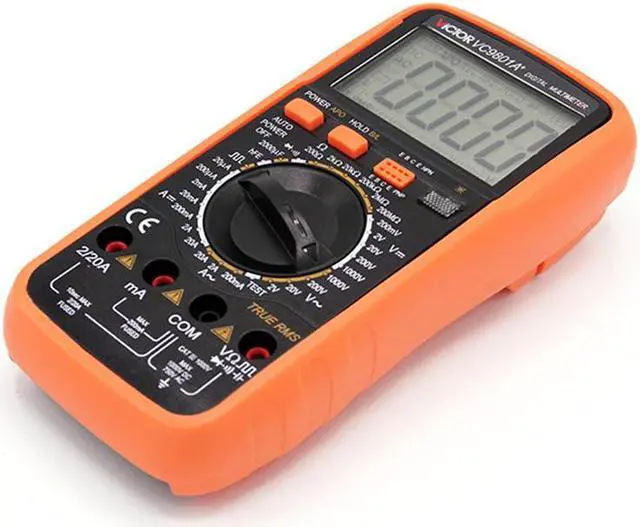

VC9801A+ Digital Multimeter DMM AC/DC Ammeter Voltmeter Ohmmeter w/Capacitance hFE Test & LCD Backligh

Description: The instrument is a stable and high performance digital multimeter driven by battery. It uses the LCD with 26mm high make the reading is clearly. And the function of back light and overload protection make operation is convenient. The instrument has the function of measuring DCV, ACV, DCA, ACA, resistance, capacitance, and diode, triode and continuity test. The instrument takes dual-integral A/D converter as key point, is an excellent tools. SPECIFICATION: 1-1Displaying : LCD displaying 1-2Max. indication: 19993 1/2, auto polarity indication 1-3Measuring method: dual slope A/D transfer 1-4Sampling rate: approx. 3 times/sec 1-5Over range indication: MSD displays OL 1-6Low battery indication 1-7Operation: 040,relative humidity <80% 1-8Power: one 9V battery (NEDA1604/6F22 or equivalent) 1-9Meas.:19088.527.5 mm 1-10.Weight: approx. 320g(The Battery Included) SAFETY NOTES: This series meter meets the standard of IEC1010. Read it before operation. 1Do not input the limited voltage of 1000V DC or 1000V AC RMS when measuring voltage. 2Voltage less than 36V is safety voltage. When measuring voltage higher than 36V DC, 25V AC, check the connection, insulation of test leads to avoid electric shock. 3When changing function and range, test leads should be removed from testing point. 4Select correct function and range. 5When measuring current, do not input current over 20A. 6Safety symbols Package Inclued: VC9801A+ Test leads Instruction Manual Holster Gift box (The Battery Included)
