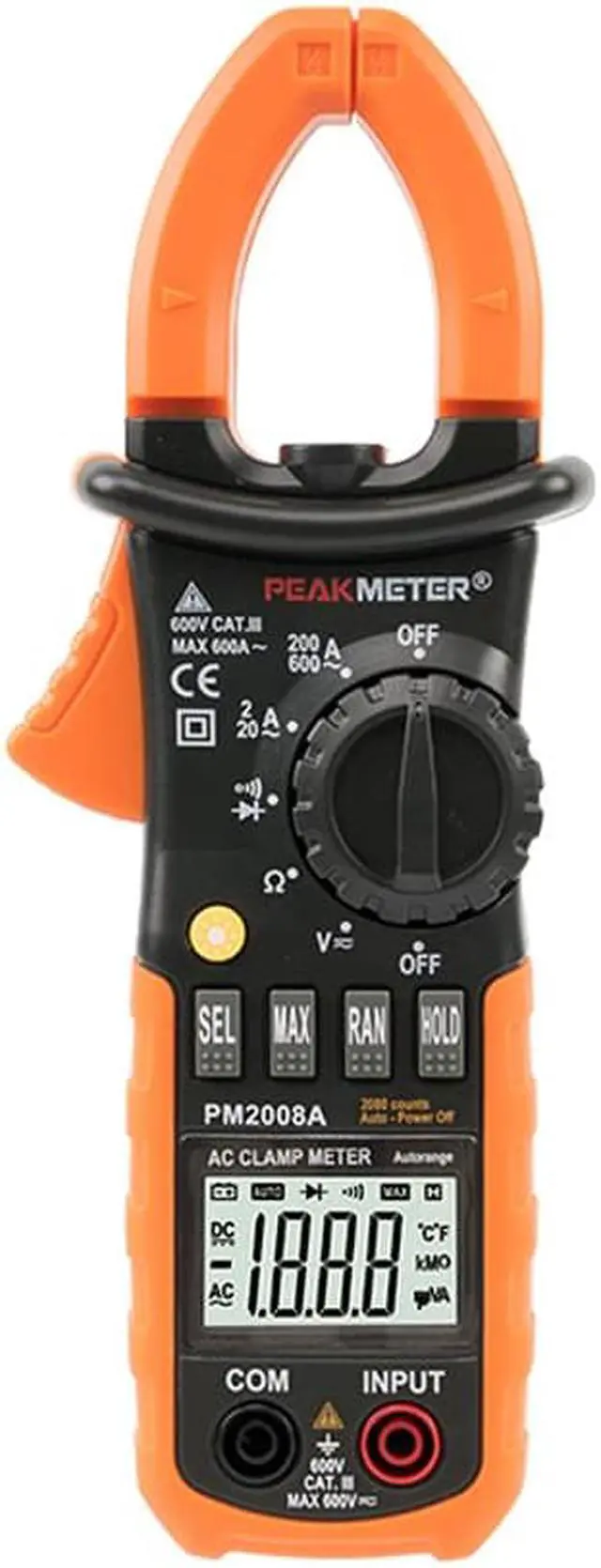

PEAKMETER PM2008A Digital Clamp Meters Auto Range Clamp Meter Ammeter Voltmeter Ohmmeter w/ LCD Backlight Current Voltage Tester

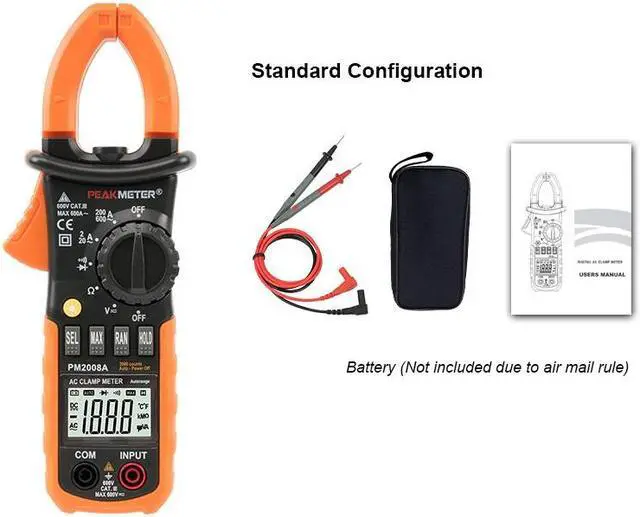

Specifications Range Accuracy MS2008A MS2008B DC Voltage 200mV/2V/20V/200V ( 0.8 %+2) 400mV/4V/40V/400V ( 0.8 %+2) 600V ( 1.0 %+2) ( 1.0 %+2) AC Voltage 2V/20V/200V ( 1.0 %+5) 4V/40V/400V ( 1.0 %+10) 600V ( 1.2 %+5) ( 1.2 %+10) AC Current 2A/20A/200A/600A ( 3.0 %+10) 4A/40A/400A/600A ( 3.0 %+10) Resistance 200/2k/20k/200k/2M/20 M ( 1.2 %+2) 400/4k/40k/400k/4M ( 1.2 %+2) 40M ( 2.0 %+5) Capacitance 50nF/500nF/5F/50F/100F ( 4.0 %+5) Frequency 50Hz/500Hz/5kHz/50kHz/100kHz ( 1.0 %+2) Duty cycle 1%~99% ( 3.0 %+2) Temperature (C) -20C~750C ( 2.0 %+2) Feature MS2008A MS2008B Display 2000 Counts 4000 Counts Auto and manual range Data hold Work light Diode test Maximum Value hold Continuity Back light General Power supply 1.5V (AAA) x3 Battery (not included this order) Weight Approx.

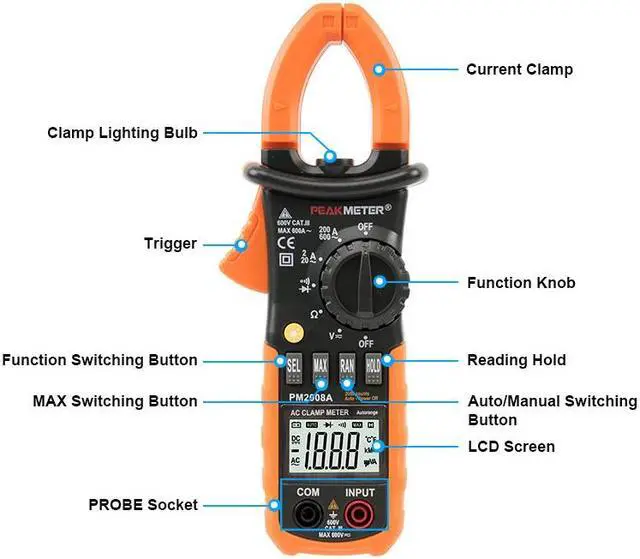

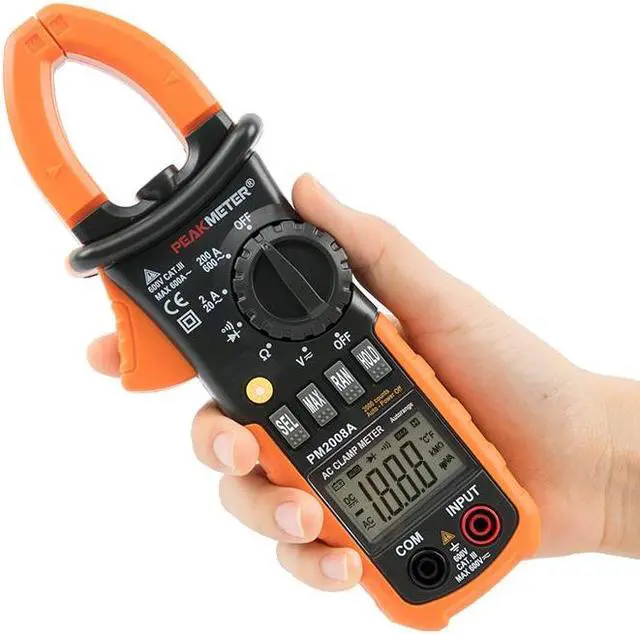

245g Size 208mmx78mmx35mm Jaw Size 26mm Safety Rating CE CAT. III 600V RoHS The instrument of this series is a small hand-held 3 1/2 digital clamp meter featuring stable, highly reliable and anti-drop performance. It is provided with a LCD display for clear reading. The circuit design takes LSI double integral A/D converter as its core under the protection of an overload protection circuit, making it a superior and handy instrument. It can be used to measure DC and AC voltge, DC current, resistance, diodes, and in-circuit continuity test.

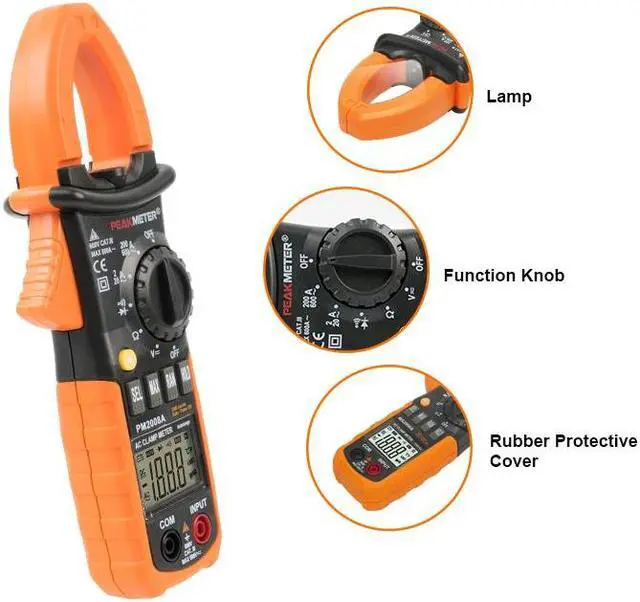

This digital clamp meter is provided with a LCD back light. Specially, it has a Max value hold function, auto/manaul ranging select function andworking backlight which is easy to use.
