PEAKMETER Multimeter Voltmeter Ammeter PM18A with True RMS AC DC Voltage Resistance Capacitance Frequency Temperature NCV Tester

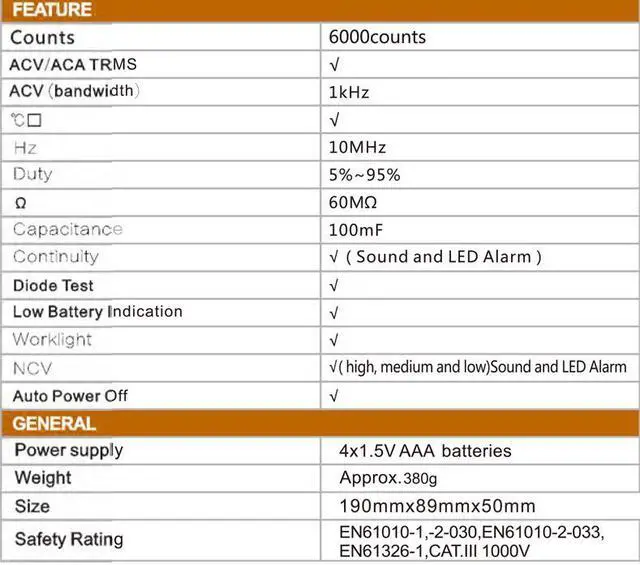

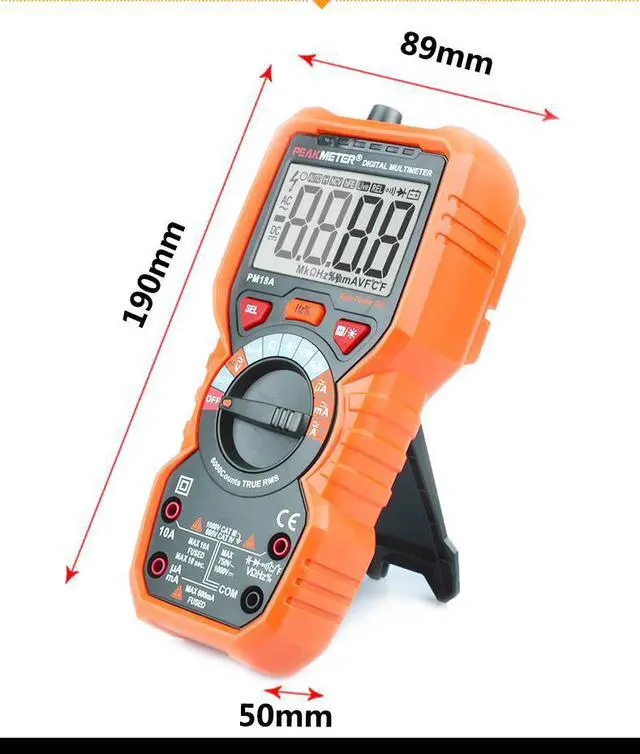

Specifications Range Accuracy DC Voltage 600mV/6V/60V/600V/1000V +/-( 0.5 %+3) AC Voltage 6V/60V +/-( 0.8 %+3) 600V/750V +/-( 0.1 %+10) DC Current 60uA/600uA/6mA/60mA/600mA +/-( 0.8 %+3) 10A +/-( 1.2 %+3) AC Current 60uA/600uA/6mA/60mA/600mA +/-( 3.0 %+10) 10A +/-( 1.5 %+3) Resistance () 600/6k/60k/600k/6M +/-( 1.2 %+2) 60M ( 0.8 %+3) Capacitance (C) 6nF ( 1.2 %+30) 60nF/600nF/6F/60uF/600uF/6mF ( 4.0 %+30) 100mF ( 5.0 %+3) Frequency 60/600/6k/60k/600k/6M/10MHz ( 1.0 %+3) Duty cycle 5% ~ 95% ( 2.0 %+3) / -20~1000/-4~1832 ( 1.0 %+3) Feature Counts 6000 Counts ACV/ACA/ TRMS YES ACV (bandwidth) 1kHz / YES Hz 10MHz Duty 5%~95% 60M Capacitance 100mF Continuity YES (Sound and LED Alarm) Diode Test YES Low Battery Indication YES Worklight YES NCV YES (high, medium and low) Sound and LED Alarm Auto Power Off YES General Power Supply 4* 1.5V AAA Batteries (NOT included) Weight 522g/ 18.4 oz Size 19* 8.9 *5cm/ 7.5 * 3.5 *2inch Safety Rating EN61010-1, -2-030, EN61010-2-033, EN61326-1, CAT.

III 1000V This is a multi-functional digital multimeter which can accurately measure DC/AC voltage, current, resistance, capacitance, frequency, etc. It also can test NCV(non-contact voltage), live line, diode, transistor and continuity. The non-contact voltage detection function, detecting voltage without contact wire, avoid electric shock. With work light, convenient to operate in the dark. Widely used in laboratories, factories and homes.
