Centigrade Range Resolution Accuracy- 50.0C ~ - 20.0C 0.1C 6C- 20.0C ~ - 0.0C 0.1C 3C 0.0C ~ -200C 0.1C ( 1.0 %read+2C)200C ~ -500C 1C ( 1.0 %read+2C)500C ~ -750C 1C ( 1.0 %read+3C)Fahrenheit
Range Resolution Accuracy- 58.0F ~ - 4.0F 0.1F 8F- 4.0F ~ 32.0F 0.1F 5F 32.0F ~ 200F 0.1F ( 1.0 %read+4F)200F ~ 932F 1F ( 1.0 %read+4F)932F ~ 1382F 1F ( 1.0 %read+5F) Overview

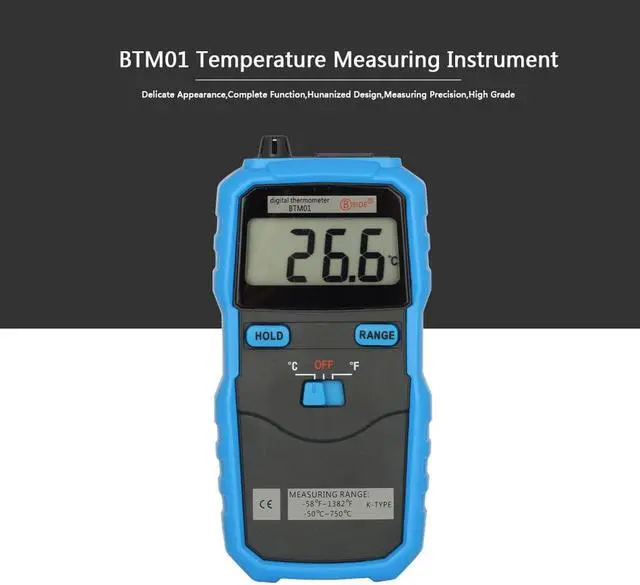

The instrument is a portable digital thermometer. It has stable performance, high precision, low power consumption, novel structure. Safe and reliable, it's an ideal measuring instrument for the majority of users. General Specifications
Environment condition of using: Working
environment: 0~40C(<80%RH).
Storage environment: -10~60C(<70%RH, without batteries).
Sampling rate: about 2 times/second.
Display: 3 1/2 bit LCD.
Thermocouple open indication: When not connected to a thermocouple or thermocouple open, display environment temperature.
Low battery indication: when the battery voltage is lower than the normal working voltage, will be displayed on the LCD display.

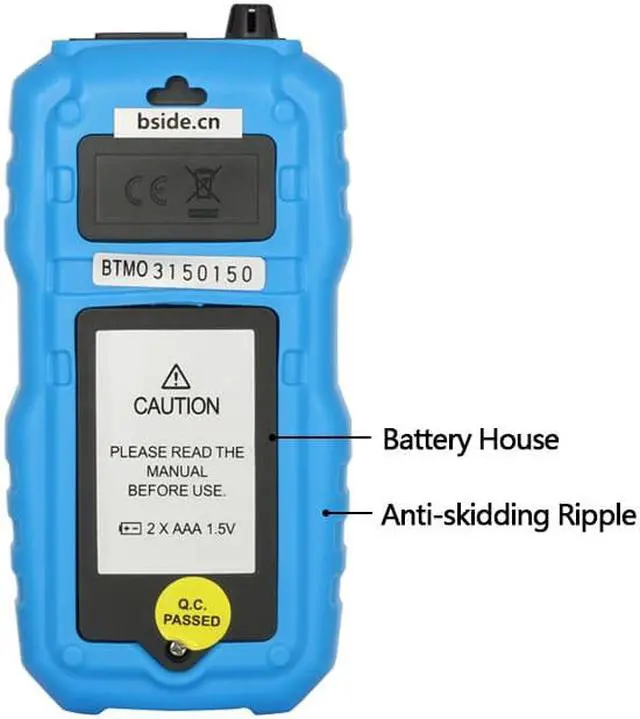

Power requirement: 2x 1.5V AAA batteries

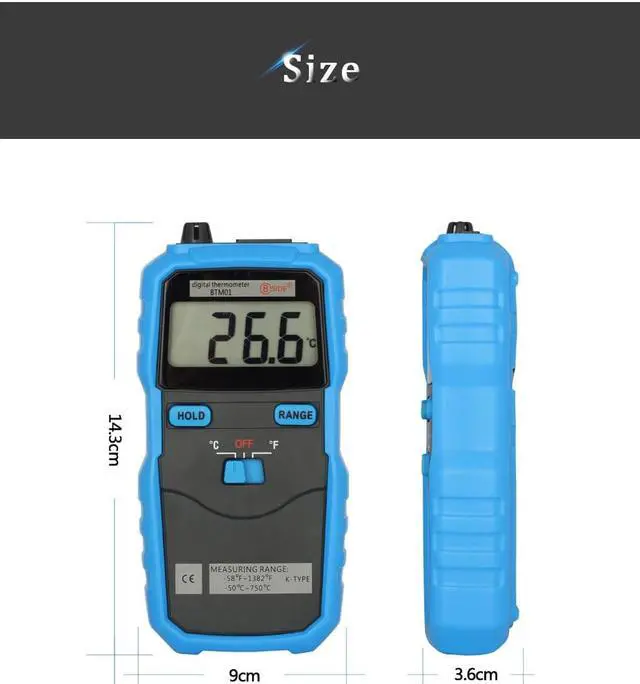

Dimension: 128x61x25mm
Thermocouple probe: TP-01 type K thermocouple probe with plug
Is a speeding reaction bead thermoelectric coupling, generally applicable to many fields.
Range: -50C ~250C (-58F ~482F).
Accuracy: ( 0.5 %+1C).
Length: 1 m, With a miniature plug. Accuracy Specifications
The accuracy applies within one year after the calibration.
Reference condition: the environment temperature 18 to 28, the relative humidity is no more than 80.
