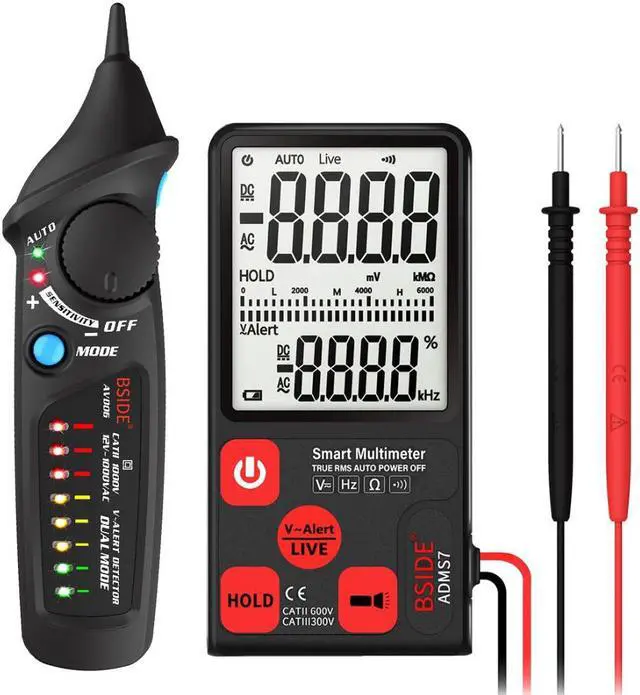

    BSIDE ADMS7 Smart Digital Multimeter 3.5'' LCD 3-Line Display Voltmeter with Analog Bargraph DMM with AVD06 Voltage Detector Kit

    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

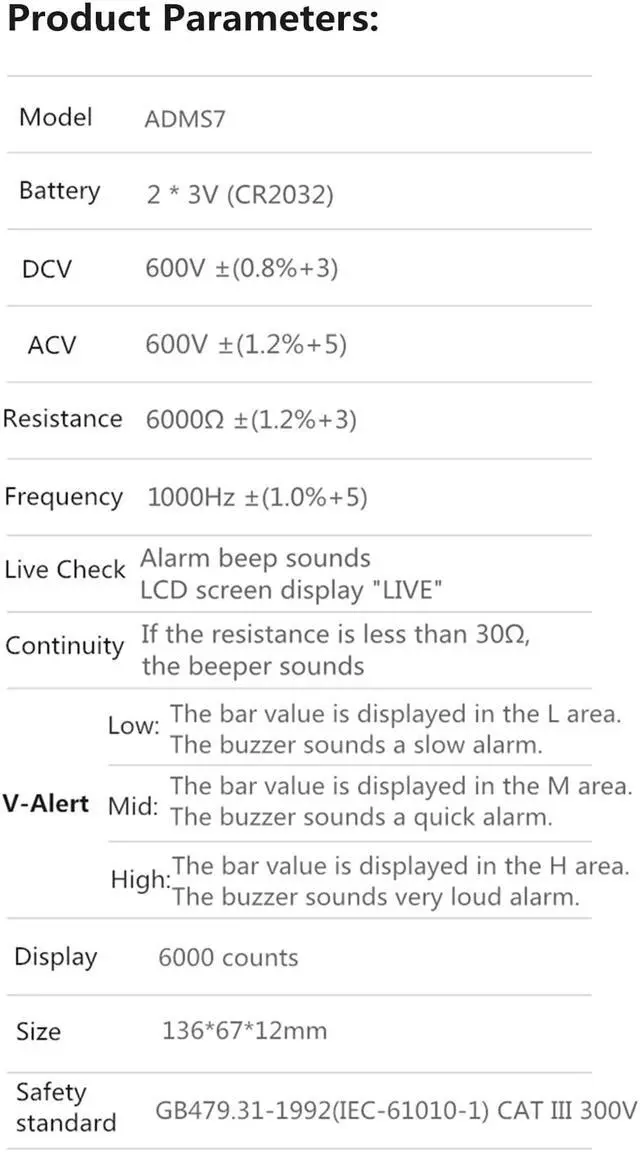

    Specifications:
    Generation: 7th generation - 2019 release
    Display: 6000 counts
    DC Voltage: 600V ( 0.8 %+3)AC
    Voltage: 600V
    ( 1.2 %+5)Resistance: 6000

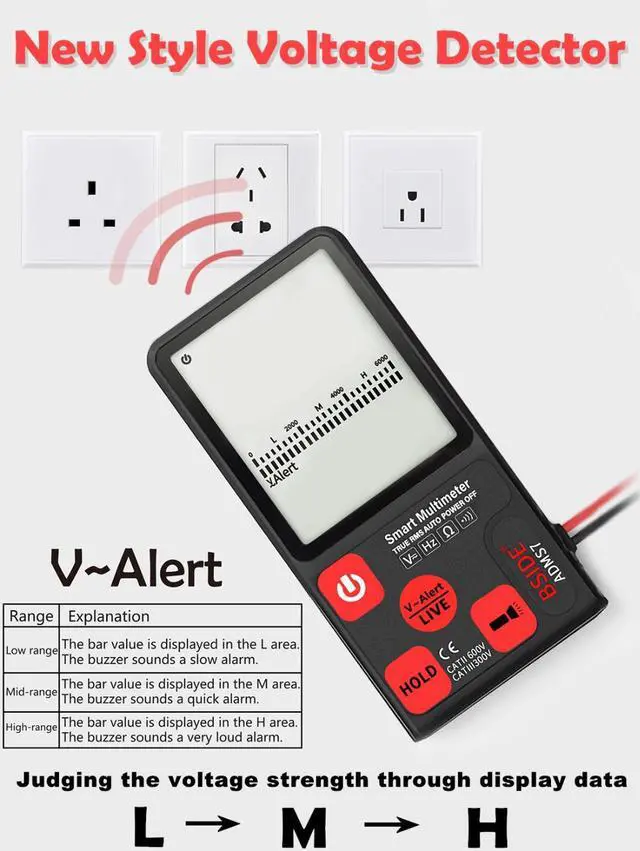

    ( 1.2 %+3)Frequency: 1000Hz ( 1.0 %+5)V-Alert(non-contact voltage detection):
    [Low-range]: The bar value is displayed in the L area. The buzzer sounds a slow alarm.
    [Mid-range]: The bar value is displayed in the M area. The buzzer sounds a quick alarm.
    [High-range]: The bar value is displayed in the H area. The buzzer sounds very loud alarm.
    Live Check: alarm beep sounds, LCD
    screen display "LIVE"Continuity: If the resistance is less than 30, the beeper sounds
    Power: 2 * 3V (CR2032) -include

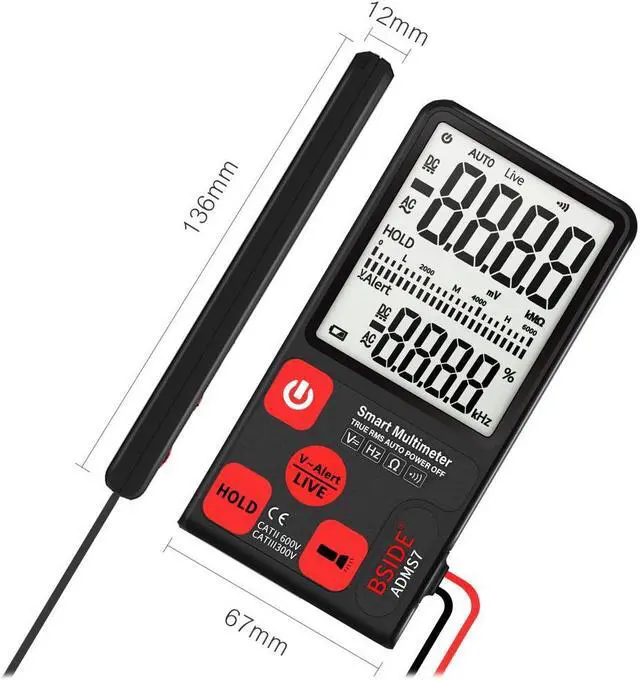

    Size: 136*67*12mm
    Weight: 110g
    Feature: Phone
    Size Design: The new generation of our best-selling multimeter ever - now thinner, lighter, and with larger LCD display. Large Screen 3
    Line Display: Large screen triple line display can show 3 test results on the screen, such as voltage, frequency and analog bar.
    Automatic Identification Design: Automatic identification design allows for no-switching when testing AC/DC voltage, Hz, continuity and resistance

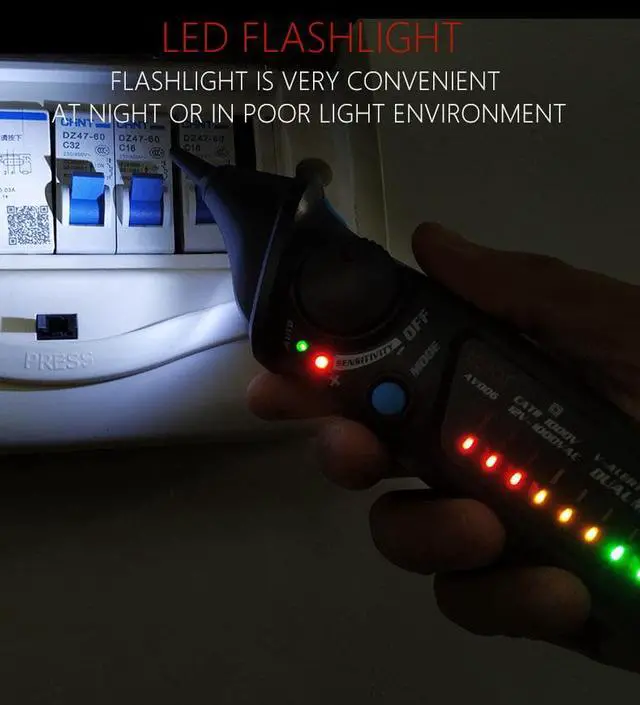

    Flashlight Design: Flashlight design makes measurement more efficient. Hang hole design make it more portable.
    Unibody Design: Unibody design, no need to plug in and out probes, which not only can save learning and test time, but also prevent wrong insertion of ports, which may burn out the multimeter.
