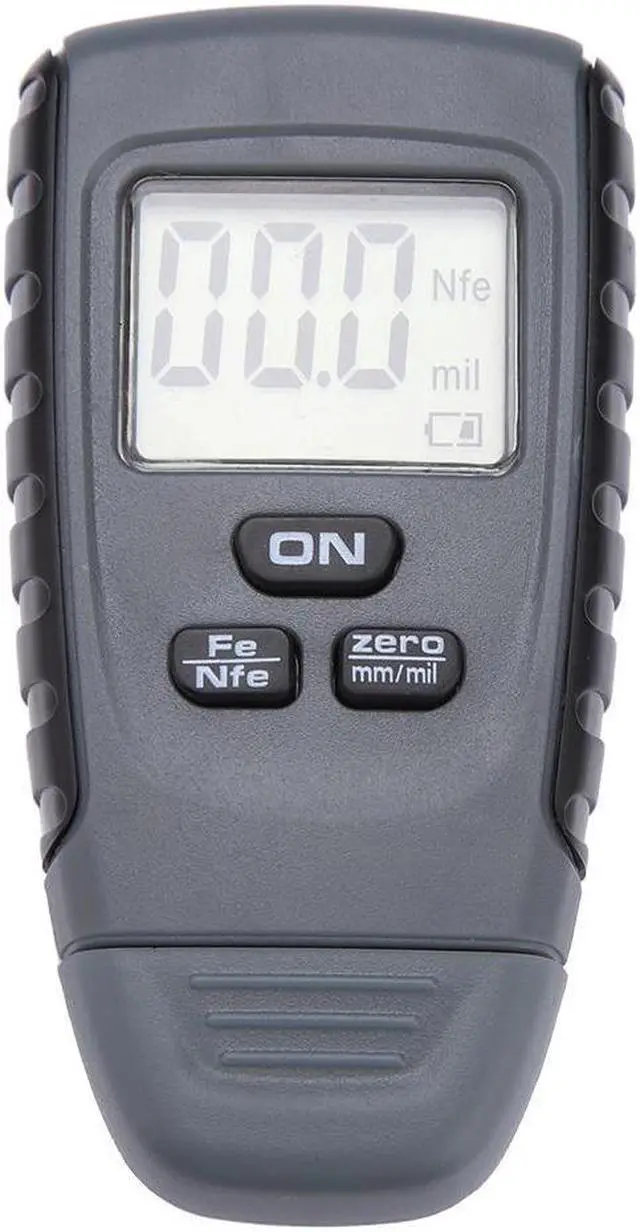

Digital LCD Display Paint Thickness Tester Car Coating Measuring Gauge Testing Instrument Tools

Specification:Material: ABSColor: Shown as PictureMeasure Target: Non-metal coating thickness on the metal surfaceMeasuring Ability: 0~1.25mm nonmetal coating on metal surfaceMeasuring Precision: 2%RDG0.02mm(2%RDG1mil)(steel and aluminum only)Power Supply: 1 * 3V CR2032 Battery(not included)Operating Current: 10mAAuto Power Off Time: No actions in 1 min if have the measured objectMinimum Diameter of Base: 10mmCritical Thickness of Base: 0.5mmDisplay Resolution: 0.02mm/1milOperation Temperature: -5~+40Working Humidity: 5%~95%RH non-condensingStorage Environment: -20~60, 85%RH(w/o battery)Size: Approx. 8*4*2cm/3.15*1.57*0.79inWeight: Approx.103g/3.6oz Features: Measuring range is 0~1.25mm nonmetal coating on metal surface. Mm/mil two units available and switchable. LCD digital display and data hold for easy and clear reading. It will automatically power off in 1 min without any operation. Press ON button to power on, then press Fe/NFE to choose the metal type and finally press Zero for unit. Fe means magnetic metal panel while NFE stands for non-magnetic metal panel. It has the advantages of easy operation, rapid measurement, safe usage and portability.Instructions for Use:Press and turn on the tester to start measuring.The thickness of the coating on the metal surface will be displayed on the LCD screen.Quickly remove it from the tested surface.The measured value will be saved on the LCD screen.
