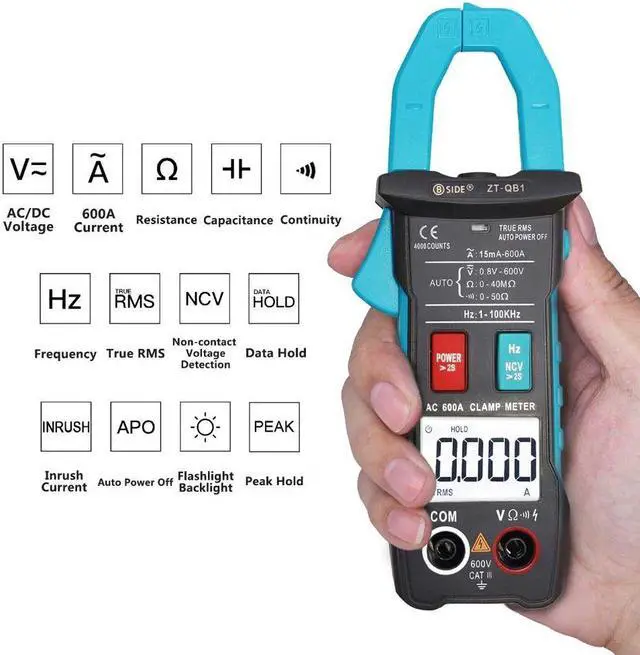

Features: Measure AC Current
Measure AC and DC Voltage
Inrush Current
Measure frequency
Measure resistance, continuity and capacitanceV-alert measurement
Clamp on frequency function
Auto range
True RMS
Data hold
Peak hold
Auto power off
Back light
Flashlight
Low
Battery Alert Specifications:
Display: 4000 counts
AC current: 4.000A (5%+5counts) 40.00A / 400.0A /600A ( 2.5 %+8counts)DC voltage: 4.000V / 40.00V / 400.0V 600V ( 0.5 %+3counts)AC voltage: 4.000V / 40.00V / 400.0V 600V ( 1.0 %+3counts)Resistance: 4.000 k ( 1.5 %+3counts) 40.00 k/ 400.0 k/ 4.000M ohm ( 1.0 %+3counts) 40.00M ohm ( 1.5 %+3counts)Frequency: 4.000H z/ 40.00H z/ 400.0H z/ 4.000 kHz/ 40.00 kHz ( 0.1 %+2counts)Buzzer: If the resistance is less than 30, the continuity beeper sounds
Jaw Capacity: 25mm

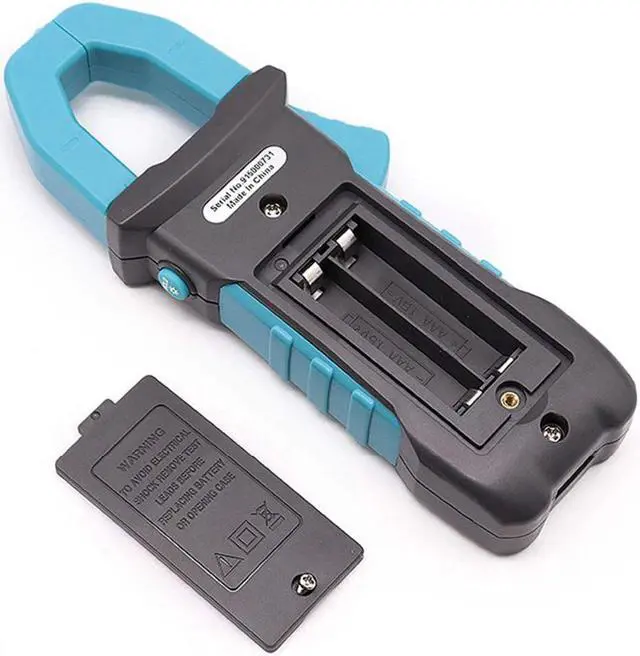

Power: 1.5V (AAA) x 2 (not included)
Size: 172mm x 64mm x 32 mmWeight: 172g [600A

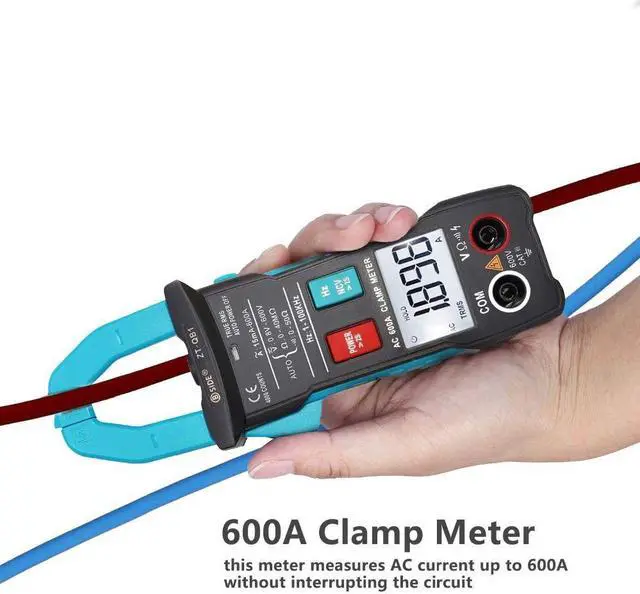

Clamp Meter]: The clamp meter measures AC current up to 600A without interrupting the circuit.
[Automatic Identification]: Designed with beginner in mind - Bside smart technology make this multimeter can automatically identifies the tested parameters and choose their required range. [Inrush Current Test and Peak hold
Function]: Inrush current function is designed to capture inrush current accurately; Peak hold function makes test and record more convenient.

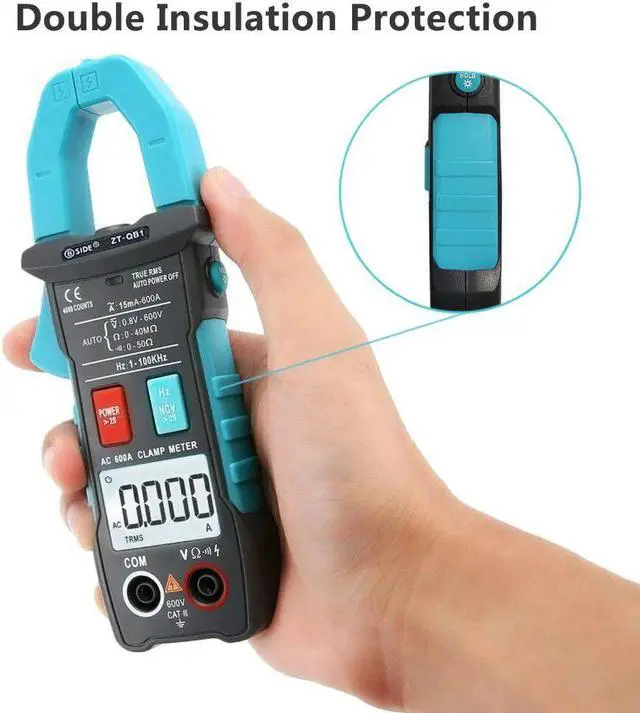

[Double Insulation Protection]: Double insulated cover design greatly improves product safety standard, which protects you from the risk of electric shock.
[Flashlight Design]: Upgraded flashlight can change the dark environment. Hang hole design make it more portable.
