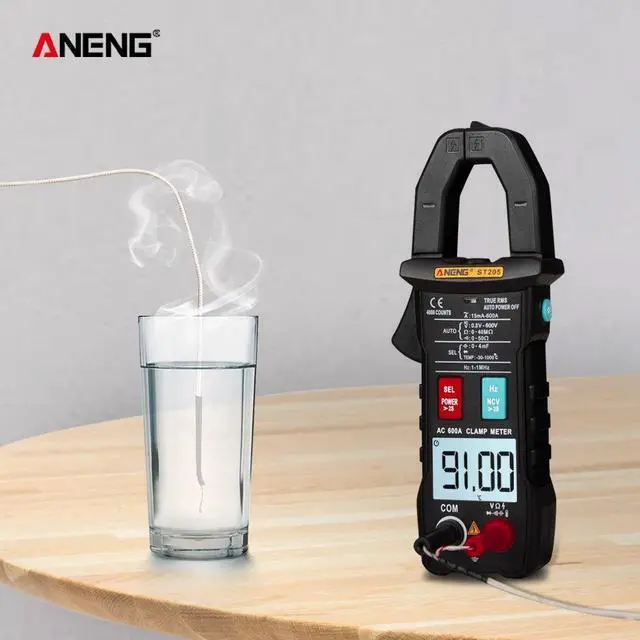

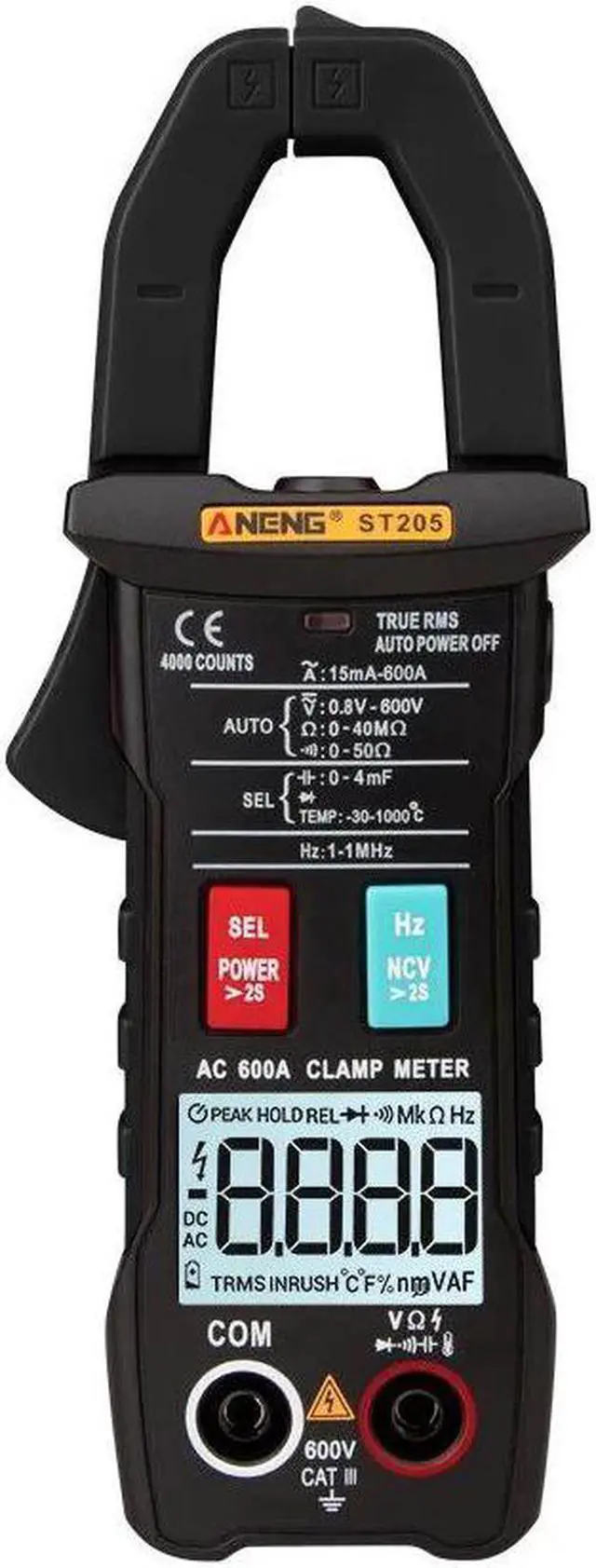

ANENG ST205 4000 Counts Full Intelligent Automatic Range True RMS Digital Multimeter Clamp Meter AC/DC Voltage NCV Resistance Auto Range Flashlight with Temperature Measurement - Black

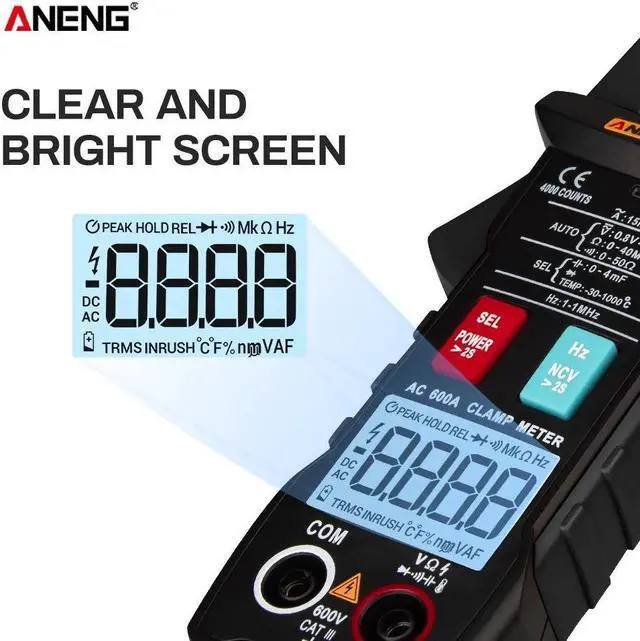

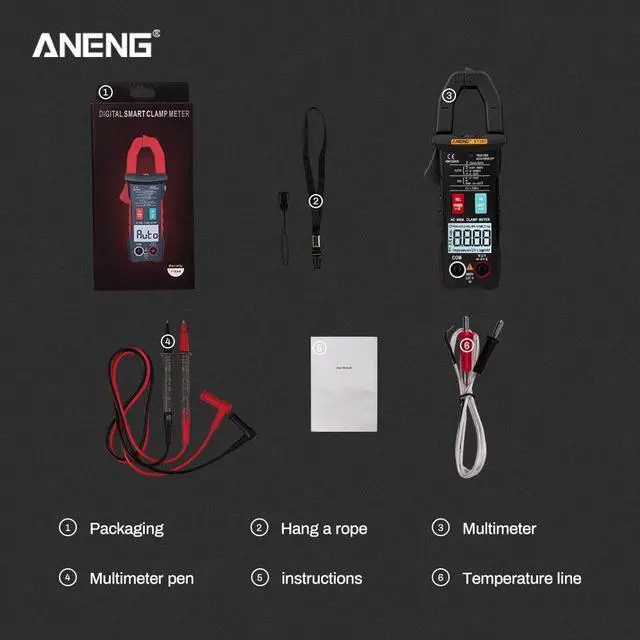

Specifications:Material:ABSColor:Blue Red Orange Black(Optional)General Characteristics1. Display: liquid crystal display (LCD)2. Maximum display: 4000 (3 3/4) bit automatic polarity display;3. Measurement method: double integral A/D conversion;4. Sampling rate: about 3 times per second;5. Over range display: The highest position shows OL;6. Low voltage displaysymbol appears7. Working environment(040)relative humidity80%8. Power: AAA 1.5V battery Batteries excluded9. Volume (size): 1706530mm (LWH)10. Weightabout160gBatteries excluded 1.5V battery11. Attachment: One instruction manual, one outer packaging box, one pair of test leads, Thermocouple, Portable storage bagFunctional parametersDC voltage DCV :yesAC voltage ACV :yesAC current ACA :yesCapacitance measurement :yesResistor / On-Off Test :yesDiode measurement:yesDiode forward voltage drop. Forward DC current is about 1mA, open circuit voltage is about 3VBuzzer:yes The buzzer sounds long and the resistance of the test is less than (5020) . auto recognition AUTOtemperature measurement :yesFrequency :yesNCV :yesZero line / Fire line test :yesFull unit symbol :yesBacklight manual/Auto off :yesTrue RMS measurement :yesFlashlight lighting :yesHOLD :yesTechnical SpecificationsDC voltage (DCV):4V-40V-400V-600V (0.5%+3)AC voltage (ACV): 4V-40V-400V-600V (1%+3)AC current(ACA):0.1A-4A-40A-400A-600A (2.5%+8)Resistance: 4k-40k-400k-4M-40M (0.5%+3)Frequency measurement: 4Hz-40Hz-400Hz-4kHz-40kHz-400kHz-1MHz (0.1%+2)Capacitance measurement:4nF-40nF-400nF-4F-40F-400F-4mF (2%+5)temperature measurement : -30~1000 / 22~1832 (2.5%+5)Notes:1. When measuring voltage, please do not input the limit voltage exceeding the effective value of DC 1000V or AC 750V;The voltage below 2.36V is a safe voltage. When measuring higher than 36V DC and 25V AC voltage, check whether the test leads are in reliable contact, are connected correctly, and are well insulated to avoid electric shock;3. When changing functions and ranges, the test leads should leave the test point.. The 4000counts is a pocket-sized 3 3/4-digit automatic digital instrument with stable performance, high precision, high reliability, clear reading and overload protection. It is a superior tool and instrument, laboratory, factory, radio enthusiasts and the ideal tool for the family. Features:The 4000counts is a pocket-sized 3 3/4-digit automatic digital instrument with stable performance, high precision, high reliability, clear reading and overload protection. Driven by AAA 1.5V battery, the instrument adopts LCD display and adopts boost power supply. Even at the edge of 2.3V low battery, it can ensure the ultra-high brightness of backlight and flashlight. This watch is easy to carry and is a meter that users like very much. The backlight can be turned on and off automatically after 15 seconds.This series of instruments can be used to measure DC voltage and AC voltage, AC current 600A, resistance, continuity test, frequency measurement and true RMS.It is a superior tool and instrument, laboratory, factory, radio enthusiasts and the ideal tool for the family.
