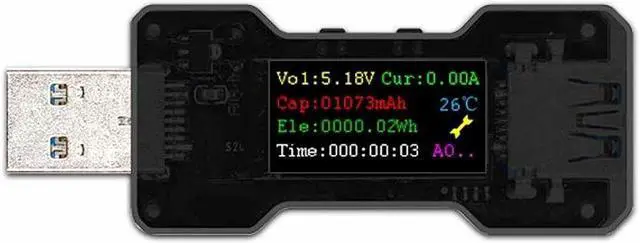

FNB18 USB Color Screen Tester DC Digital Voltmeter Amperemeter Current Voltage Meter Amp Volt Ammeter Detector Power Bank Recharger Indicator

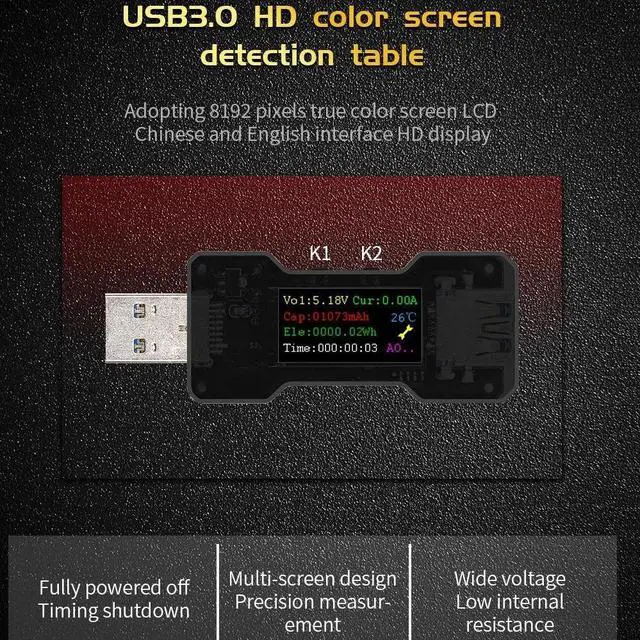

Specifications:Material: ABSColor: blackMeasurement ranges (and resolution accuracy):Voltage: 3.60-32.0V (0.01V)Current: 0.00-5.00A (0.01A)Capacity accumulation: 099999mAh (0.001Ah)Power accumulation: 09999.99Wh (0.01Wh)Power calculation: 0.00-160.00W (0.01W)Impedance: 0.0- 6000.0 (0.1)Temperature: 0-100 (1)Timing time: 999H59M59S (1S)USB D+ voltage: 0-3.30V (0.01V)USB D- voltage: 0-3.30V (0.01V)Input interface: USBOutput interface: USBTimed charge reminder settings: 24-hour countdownFull charge threshold parameters: < 2W / 0.5hoursRefresh time: > 500mS / timeMeasurement rate: about 0.5 time / SAlarm mode: siren soundDisplay type: micro-power LCD module LCM white fontCurrent consumption: < 0.02AOperating temperature: -10 to +60Working humidity: 10 to 80 (no frost)Work pressure: 80-106KpaItem size: 76 * 30.5 * 15.6mm / 3.0 * 1.2 * 0.6inPackage size: 85 * 40 * 20mm / 3.3 * 1.6 * 0.8inPackage weight: 23.35g / 0.8ounce Features:Adopting 8192 pixels true color screen LCD HD display.Fully powered off, timing shutdown, multi-screen design, precise measurement, wide voltage, low internal resistance.You can switch between different test content interfaces by short pressing the multi-function button.Summarize a variety of large-scale instruments and use precise devices to develop, voltage up to 32V, power up to 160W, other industrial high-voltage power supply and fast charge voltage range measurement.Compatible with USB3.0 device and compatible with USB2.0, support high current test, wide range of uses.General test 3C digital peripheral products, such as USB recharger, power bank, electronic load, USB light and 3.0U disk, etc.Added V+, D-, D+, V- four-wire voltage full detection interface to meet the handshake state and electrical parameter measurement when adapting to Qualcomm mobile phone charging.Overvoltage protection, overcurrent protection, low voltage protection, low energy protection, alarm prompt.Power-off memory technology, storage for ten years.Use USB3.0 color screen monitor to safely charge mobile phone, monitor charging data in real time, support QC3.0 (3.8-12V, +/-0.2 step) and support QC2.0 (5V/9V/12V/20V), Android BV1.2 (5V), ios 5V/2.4A and MTK-PE (5V/7V/9V/12V) and other high-pass fast charging voltage range charging pass-by measurement, easy and safe to measure.
