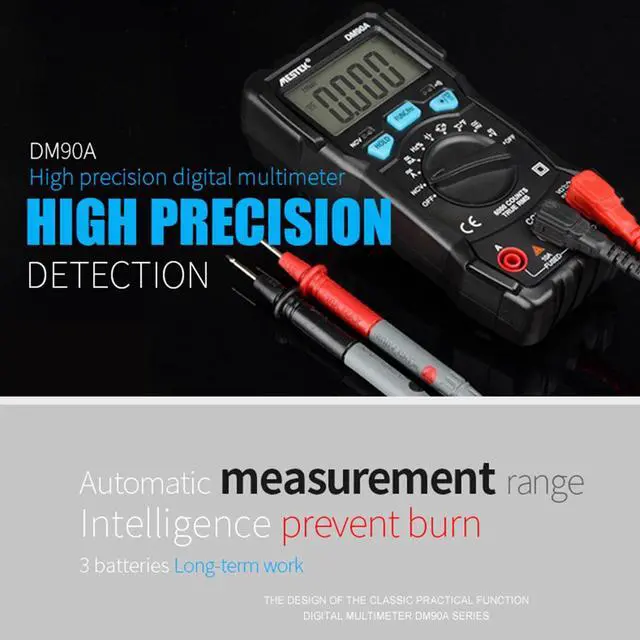

MESTEK DM90A 6000 Counts Auto-range True RMS LCD Digital Multimeter

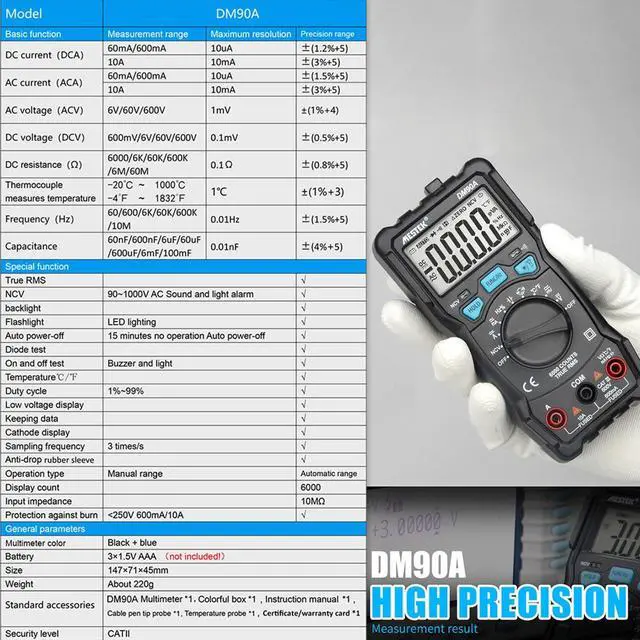

Specifications:
Material: ABS
Safety Level: 600V
CAT IIMaximum Display: 6000Range
Control: Auto
RangeAltitude: <2000mPower
Supply: 3 * 1.5V AAA
Battery (NOT Included) Operating Temperature: 0~40C (<80%RH)Storage
Temperature: -10~60C (<70%RH, without battery)Test or
Calibration Environment: 20C2CConversion
Rate: Approx.
3 times/secondOver Range Indicator: "OL" displayedLow
Battery Indicator: YesDiode
Test: YesContinuity
Buzzer: YesAuto
Power Off: about 15minsDC
Voltage Range: 600mV/6V/60V/600VDC
Voltage Resolution: 0.1 mV/1mV/10mV/100mVAC
Voltage Range: 600mV/6V/60V/600VAC
Voltage Resolution: 0.1 mV/1mV/10mV/100mVResistance
Range: 600/6K/60K/600K/6M/60MResistance
Resolution: 0.1 /1/10/100/1K/10KDC
Current Range: 60mA/600mA/10ADC
Current Resolution: 0.01 mA/ 0.1 mA/10mAAC
Current: 60mA/600mA/10AAC
Current Resolution: 0.01 mA/ 0.1 mA/10mAFrequency
Range: 9.999H z/ 99.99H z/ 999.9H z/ 9.999KH z/ 99.99KH z/ 999.9KH z/ 9.999MH zFrequency
Resolution: 0.001H z/ 0.01H z/ 0.1H z/ 0.001KH z/ 0.01KH z/ 0.1KH z/ 0.001MH zCapacitance
Range: 60nF/600nF/6uF/60uF/600uF/6mF/100mFCapacitance
Resolution: 0.01 nF/ 0.1 nF/1nF/10nF/100nF/1uF/10uFTemperature
Range: -20~1000 / -4~1832Temperature
Resolution: 1 /
Item Size: 147 * 71 * 45mm / 5.79 * 2.80 * 1.77 inItem
Weight: 220g / 7.76 oz (Without Battery)
Package Weight: 324g / 11.43 ozPackage
Size: 17.7 * 11.1 * 5.4 cm / 6.97 * 4.37 * 2.13 in
Features: Safety

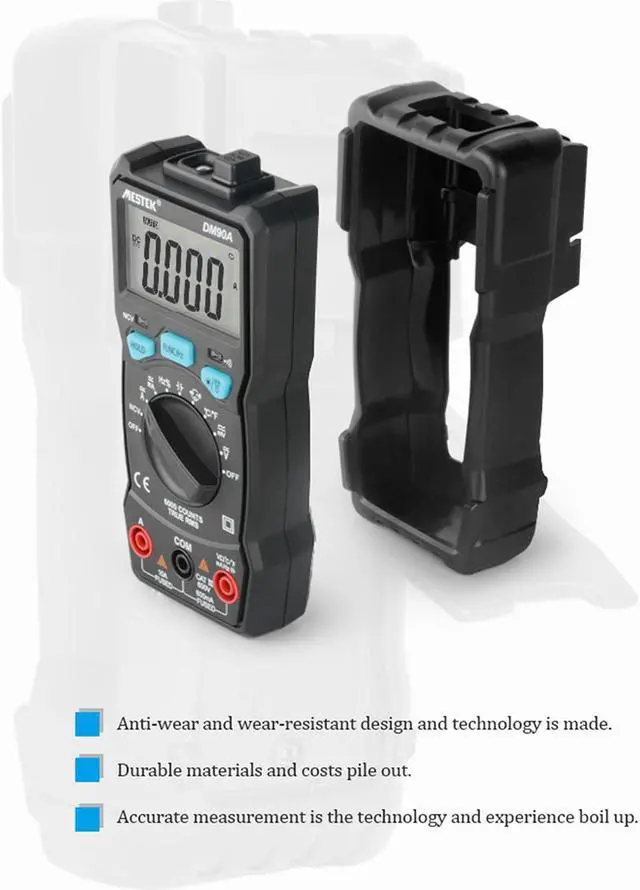

Operation: the multimeter designed with dual insulation protection, high voltage alert, II grade 600V over voltage protection, etc.

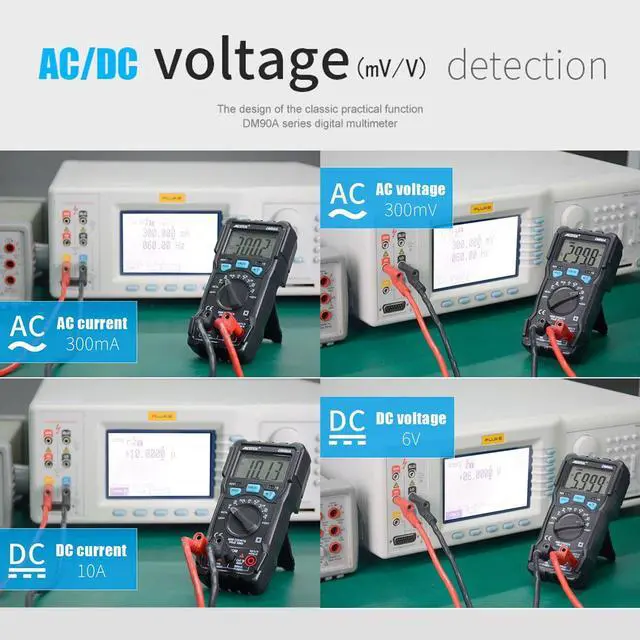

Multiple Functions: including testing DC/AC voltage, DC/AC current, resistance, capacitance, frequency, temperature, diode and continuity.
Other Features: LCD display with backlight, flashlight, data hold, 6000 counts display, auto range, NCV test, buzzer indicate, and more.
Power Supply & Auto-OFF: just powered by 3pcs AAA batteries (NOT included), low power consumption. And has power saving design of 15s backlight auto-off, 30s flashlight auto-off, and 15m auto shutdown.
Compact & Wide Application: the portable handheld multimeter is easy to operate and convenient to use, perfect for electrical equipment testing and maintenance in the laboratory, factories, etc.
