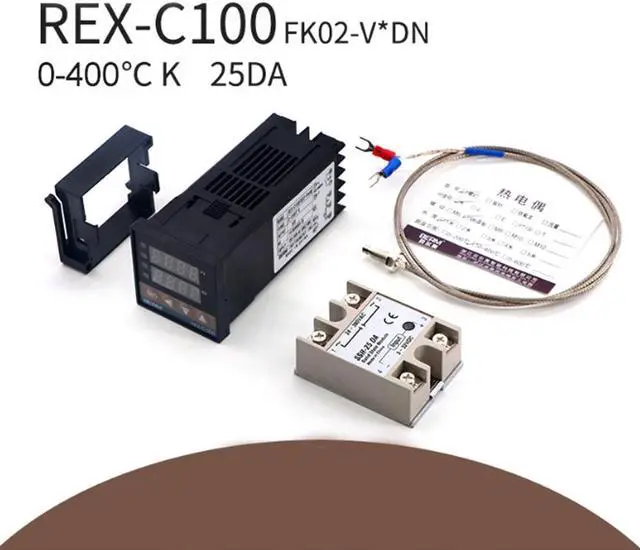

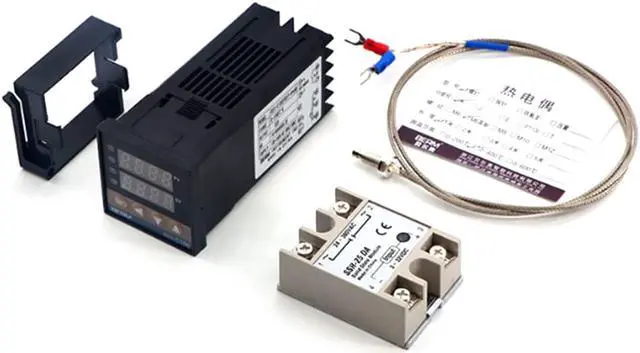

REX-C100FK02-V*DN Intelligent Temperature Controller SSR Output + SSR-25 DA + M6 1M Cable 3Pcs Set

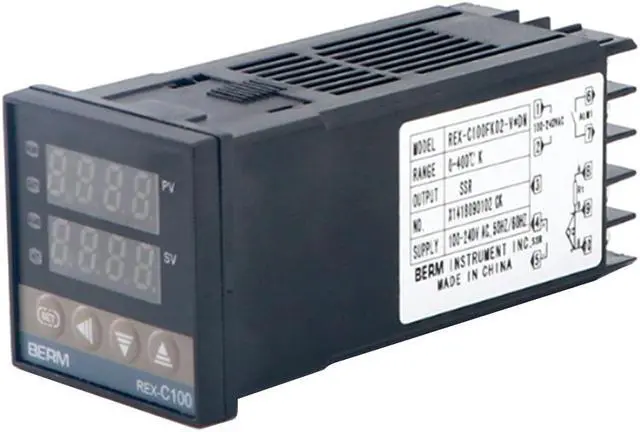

Specifications: Temperature
ControllerSupply: AC100-240V, 50/60HZMaterial: ABS
Color:
BlackDisplay: Dual
display for celsius ()Range: 0-400 (only when using factory k type thermocouple)
Thermocouple: Type
KMain Output: SSR
Accuracy: 0.5
%Input: Type
KNoise: 1/16Alarm
Output: 1 output line, 7
types of alarm mode: high / low / high deviation / low deviation / interval / out of range / break alarm.
Control Output: SSR

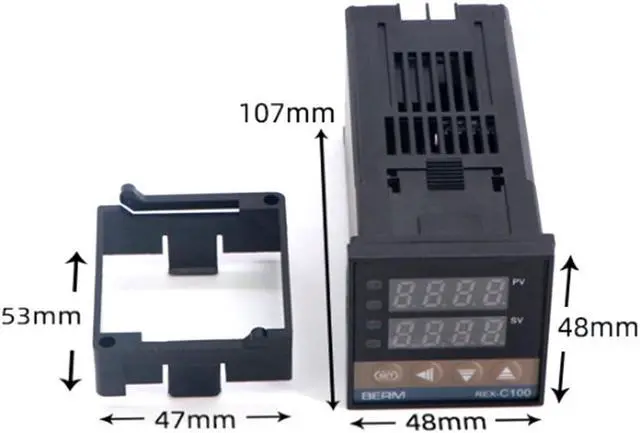

Item Size: 107 * 48 * 48mm / 4.21 * 1.89 * 1.89 inBracket

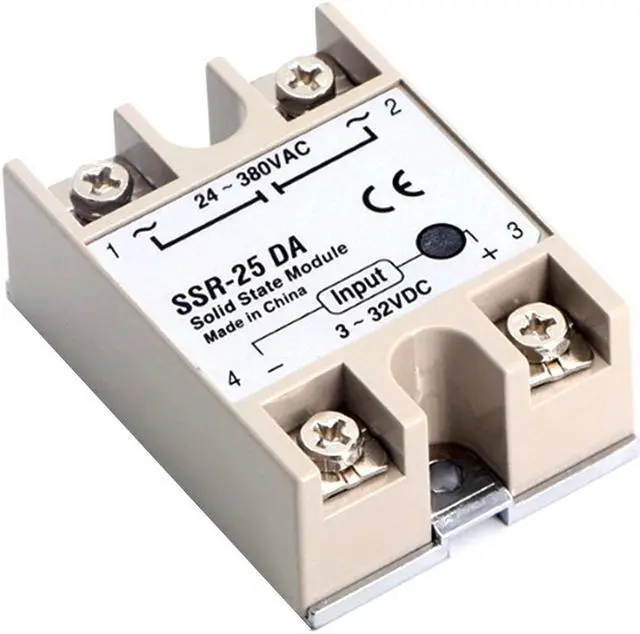

Size: 53 * 47mm / 2.09 * 1.85 inSSR-25 DA
Output Current: 25AInput
Voltage: DC3-32VOutput
Voltage: AC24-380V

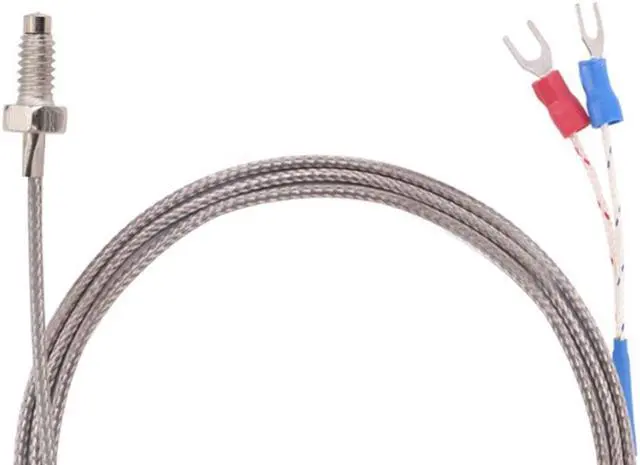

Item Size: 62.8 * 46 * 23.5 mm / 2.47 * 1.81 * 0.93 inK
Thermocouple Probe CableLength: 1m / 3.28 ftPackage
Weight: 240g / 8.47 ouncesPackage
Size: 150 * 125 * 50mm / 5.91 * 4.92 * 1.97 in
Features: Pid heating / cooling control. 7 different dual output combinations: high / low / high deviation / low deviation / interval / out of range / break alarm. Individually programmable pid control parameters, P, i, d, control period, digital filter coefficient, and more. Relay control ready to connect. Compact design, Din 1/8 great form factor to be included / build-in for your product. The SSR-25 DA has quick temperature control, small overrun and high precision. M6 thread 1m length k-type thermocouple temperature detection for temperature controller. Widely applied to electric power, chemical industry, injection molding, food, oven and other equipments.
