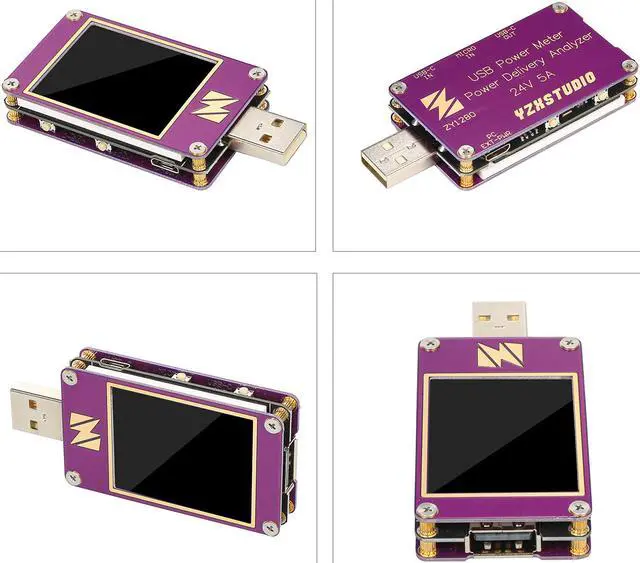

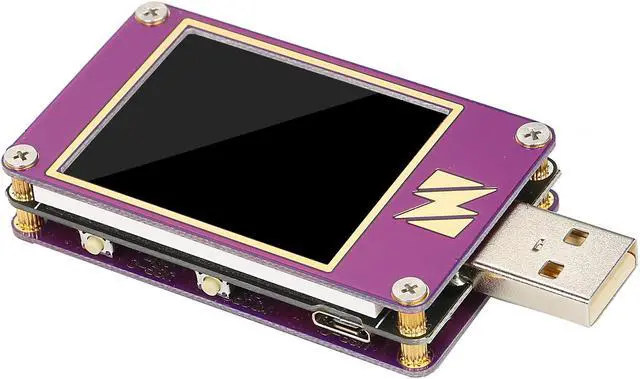

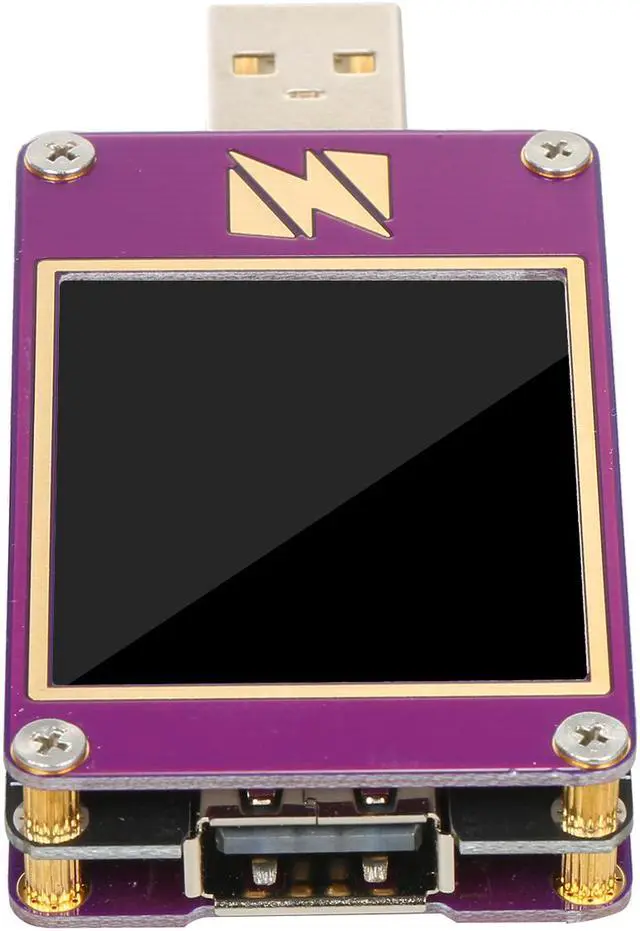

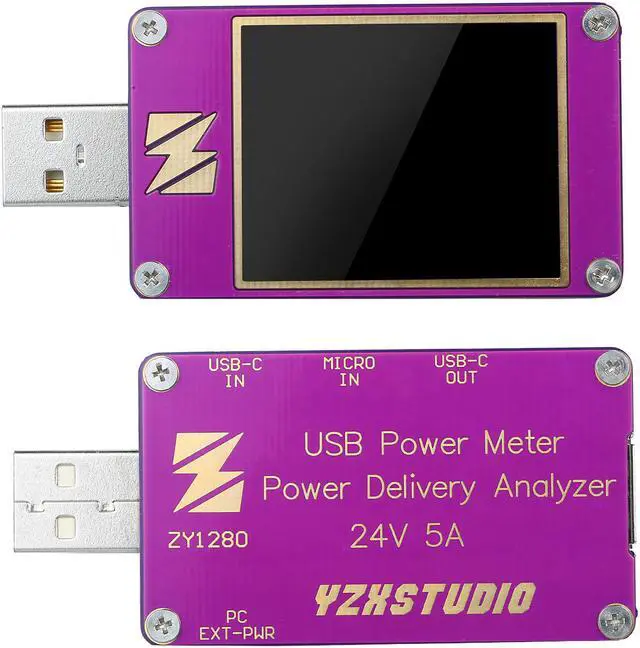

ZY1280P USB Tester Digital Display Color Screen Current Voltage Capacity Tester Fast Charge Protocol QC4+PD3.0 2.0 PPS Detection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications: Model
Type:
ZY1280PColor: PurpleVoltage
Range: 3.5 -24V, ultimate withstand voltage 28VVoltage
Resolution: 0.0001V (18bit), some models open 1.28 seconds integral can reach 0.00001VC urrent
Range: Continuous positive and negative 0-5A, with display current directionCurrent
Resolution: 0.0001A (18bit), some models open 1.28 seconds points can reach 0.00001AR efresh
Rate: Normal interface 0.36 seconds, high speed interface 10FPS
Capacity Range: 0-99999Ah 0-99999WhCapacity
Resolution: 0.0001A h 0.0001W h ( 0.1 mAh 0.1 mWh)Time
Range: 1000 hours, accurate

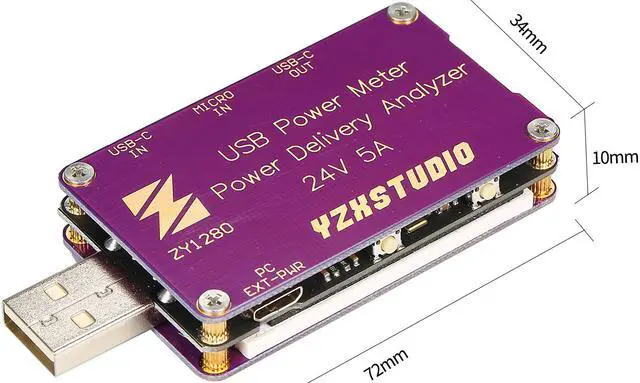

to 1 secondItem size: 72* 34* 10mm / 2.83 * 1.34 * 0.39 inItem weight: 25g
/ 0.88 ozPackage size: 88* 60 * 18mm / 3.46 * 2.36 * 0.71 inPackage weight: 56g / 1.98 oz
Features: 1.8 -inch large color screen, bigger screen in similar size, one screen display different specifications. Voltage and current curve painting with sample rate up to 100 samples per second.

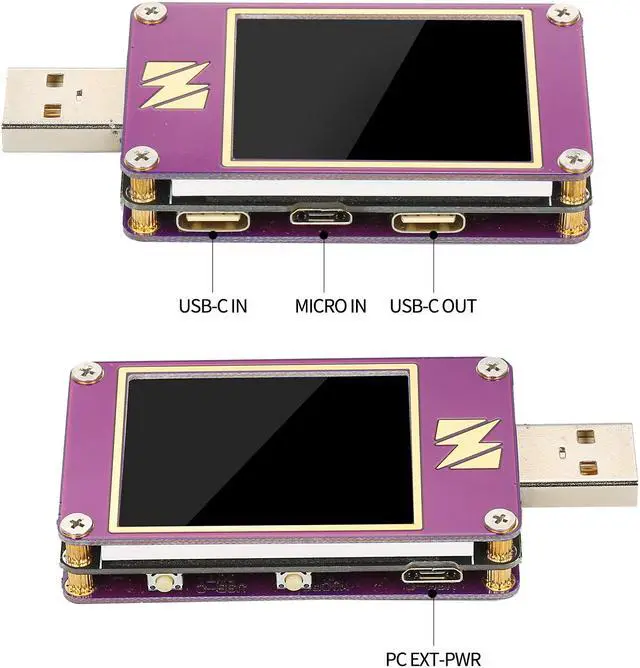

High precision measuring wire resistance: Two mode of wire resistance test, 4 Wire Kelvin and Voltage Drop. Full protocol power-free automatic protocol detection, the list shows almost all fast chargers supported by the charger. Updated USB interface, easy to operate, and DIY startup screen. High accuracy measurement, the accuracy can tend to 0.00001A. QC4, QC4+ and PPS fast charge protocol trigger supported. All female ports are fully built in, and the terminals are not protruding and are not easily damaged. PD 2.0 and PD 3.0 fast charge protocol list and trigger supported.
Type:
ZY1280PColor: PurpleVoltage
Range: 3.5 -24V, ultimate withstand voltage 28VVoltage
Resolution: 0.0001V (18bit), some models open 1.28 seconds integral can reach 0.00001VC urrent
Range: Continuous positive and negative 0-5A, with display current directionCurrent
Resolution: 0.0001A (18bit), some models open 1.28 seconds points can reach 0.00001AR efresh
Rate: Normal interface 0.36 seconds, high speed interface 10FPS
Capacity Range: 0-99999Ah 0-99999WhCapacity
Resolution: 0.0001A h 0.0001W h ( 0.1 mAh 0.1 mWh)Time
Range: 1000 hours, accurate
to 1 secondItem size: 72* 34* 10mm / 2.83 * 1.34 * 0.39 inItem weight: 25g
/ 0.88 ozPackage size: 88* 60 * 18mm / 3.46 * 2.36 * 0.71 inPackage weight: 56g / 1.98 oz
Features: 1.8 -inch large color screen, bigger screen in similar size, one screen display different specifications. Voltage and current curve painting with sample rate up to 100 samples per second.
High precision measuring wire resistance: Two mode of wire resistance test, 4 Wire Kelvin and Voltage Drop. Full protocol power-free automatic protocol detection, the list shows almost all fast chargers supported by the charger. Updated USB interface, easy to operate, and DIY startup screen. High accuracy measurement, the accuracy can tend to 0.00001A. QC4, QC4+ and PPS fast charge protocol trigger supported. All female ports are fully built in, and the terminals are not protruding and are not easily damaged. PD 2.0 and PD 3.0 fast charge protocol list and trigger supported.
