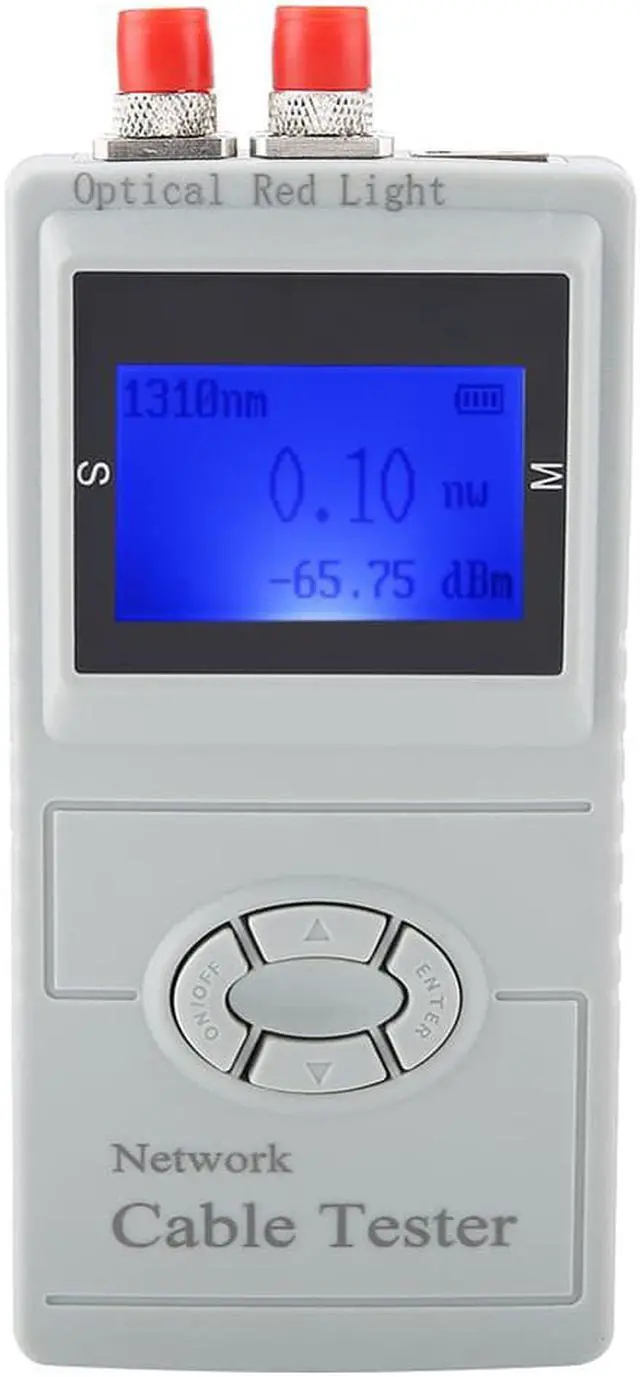

SML-MP2 Optical Power Meter Power Meter Breakpoint Length Line Meter Anti-interference Cable Tracker with Red Light

Model: SML-MP2DisplayLCD dot matrix 128x64Power1 *9V laminated batteries (not included) Operating Temperature-10- +60Operating Humidity10%-70%MaterialABS
Cable Test ParametersTestable Material5E, 6E twisted pair, telephone wire and other metal wirePortRJ4, RJ11Measurable Length1-1200 metersScanning LengthMore than 3000 meterOptical Power Meter ParameterStandard Wavelength850mn, 980nm, 1300mn, 1310nm, 1490mn, 1550nmMeasurable Wavelength800nm-1600nmMeasurable Range-70dBm-+10dBmResolution RatioLinear 0.1 %, logarithm 0.01 dBmMeasuring Sensitivity 0.01 nwProbe TypeInGaAsRed Light Resource650run 5mW visible laser light sourceLength
Of Red Light5km-8kmWeight: Approx. 455g / 16.0 oz
Features: 1.
Crosstalk Test: Test twisted-pair cable way of crosstalk, solve the potential problem2.
Mapping Test: Test cable short circuit fault, open circuit, jumper, reverse connection, cross, matching, etc3.
Length Test: Measure the cable length4.
Breakpoint Test: Measure the length of the cables breakpoint5.
Scanning Test: Through audio signal, the heap online to find under test is the line, can switch electric line6.
Optical Power Meter Test: Test the logarithm of the fiber power (dBm), linear power (nw) or relative power (dB) 7.
Battery Indicator Test: With four battery symbol displays the current capacity8.

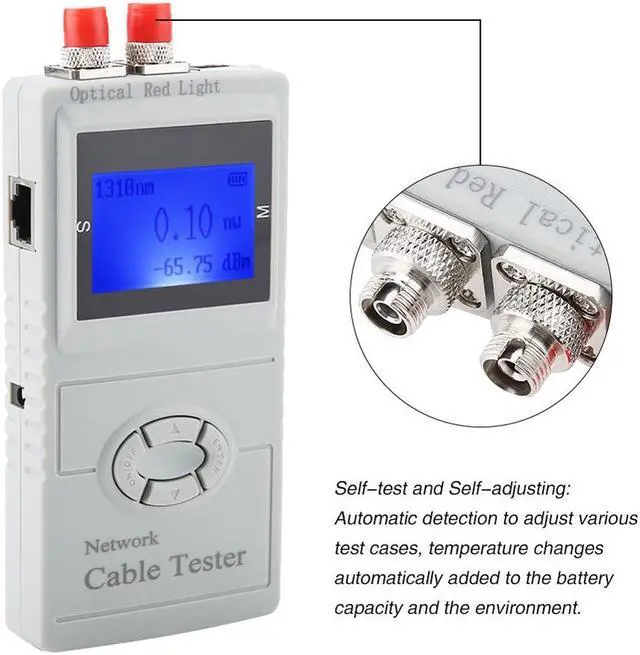

Self-test and Self-adjusting: Automatic detection to adjust various test cases, temperature changes automatically added to the battery capacity and the environment9. Back Light Time is
Adjustable: Can according to their own needs to adjust the back light time10.
Shutdown Time is Adjustable: Can choose according to their own requirements shutdown time.
