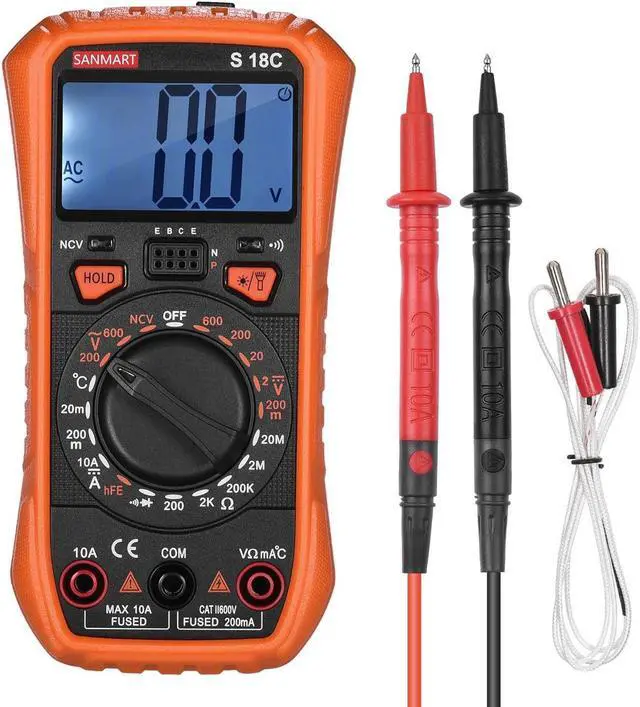

SANMART S18C Mini Handheld Digital Multimeter 2000 Counts Manual Range True RMS Universal Tester

Specifications: DC
Voltage Range: 200mV/2V/20V/200V/600V( 0.5 %rdg+5dgt)DC
Voltage Resolution: 0.1 mV/1mV/10mV/100mV/1VAC
Voltage Range: 200V/600V(1%rdg+10dgt)AC
Voltage Resolution: 100mV/1VResistance
Range: 200/2k/200k/2M/20M(1%rdg+3dgt)Resistance
Resolution: 0.1 /1/100/1k/10kDC
Current Range: 2mA (Model S18A Only) /20mA/200mA(1%rdg+5dgt), 10A(3%rdg+10dgt)DC
Current Resolution: 1A/10A/100A/10mATemperature
Range (Model S18C Only): -20~1000( 1.0 rdg+3dgt)
Temperature Resolution:
1Model: S18A / S18B / S18C (Optional)
Material: ABS
Range: Manual rangeMax.
Display: 1999 counts
LCD displaySafety Level: 600V
CAT IIConversion Rate: Approx.
3 times/secondOverload: Display "OL"The Biggest Voltage Between
Measurement and Ground: 600VFuse
Protection: mA
range fuse: F200mA/250V;
A range fuse: F10A/250VAuto
Power off: 15
minutesBacklit: 15
secondsIllumination: 30 secondsWorking
Environment: 0~40 (<80%RH)Storage
Environment: -10~60 (<70%RH, without battery)Test or
Calibrate Surrounding Temperature:
202Altitude: <2000mPower

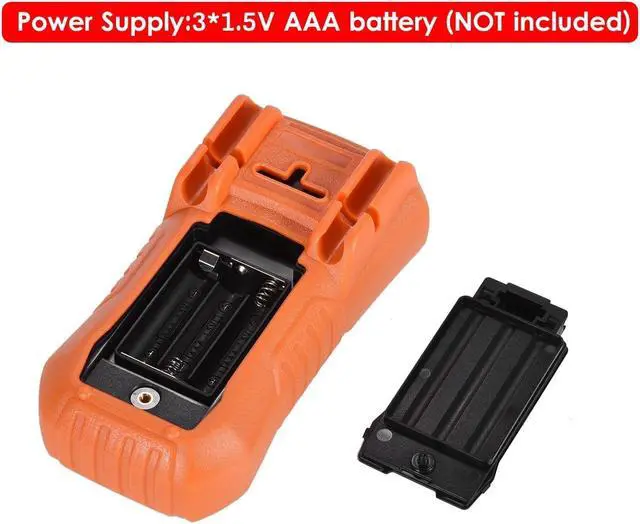

Supply: 3 * 1.5V AAA battery (NOT included)

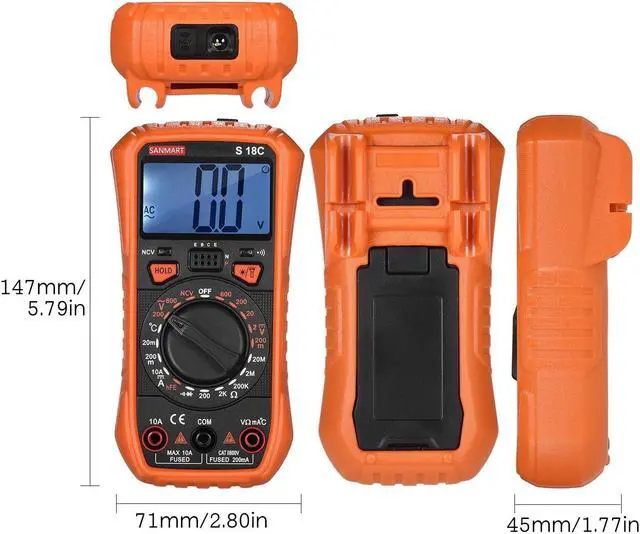

Item Size: 147 * 71 * 45mm / 5.79 * 2.80 * 1.77 inItem
Weight: 198g / 6.98 ozPackage
Weight: 306g / 10.79 ozPackage
Size: 16.8 * 11.2 * 5.2 cm / 6.61 * 4.41 * 2.05 in

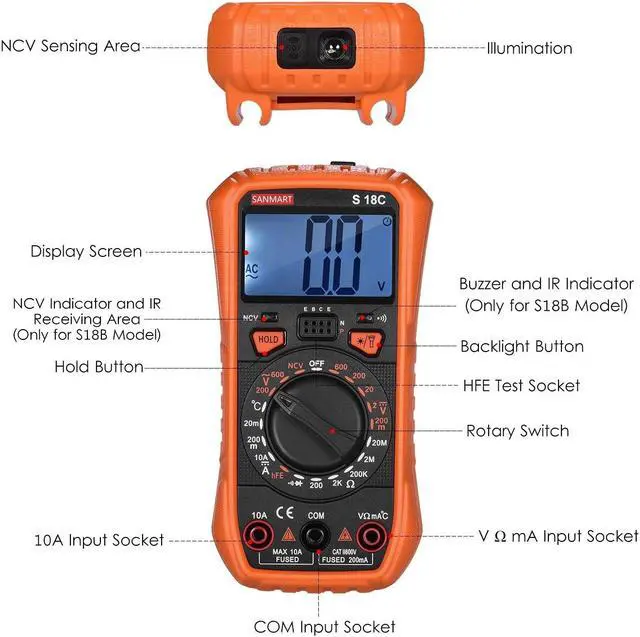

Features: Multipurpose
Measure Gauge: this meter can be used to measure AC/DC voltage, DC current, resistance, diode and buzzer, temperature (only for model S18C), infrared signal detection (only for model S18B).
Safety Operation: the circuit design is safe and reliable, with overvoltage protection and complies with the standard 600V CAT II and pollution grade 2.

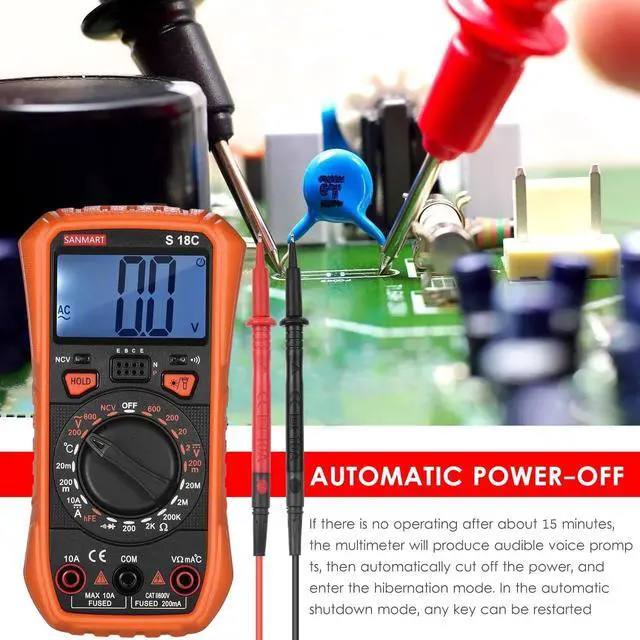

Auto Power-off: the meter will automatic shut down if there is no operation in 15 minutes. and the backlight/flashlight will shut off in 15s/30s of no operating.

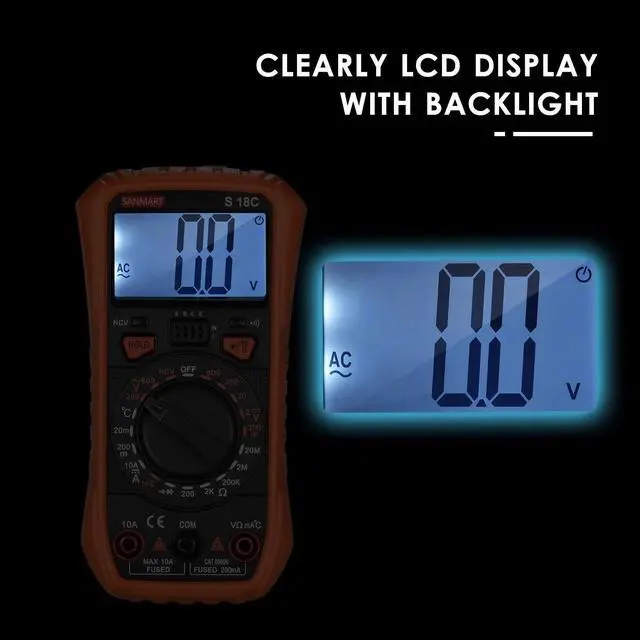

Clearly Digital Display: 2.1 -inch LCD screen equipped with a backlight, allowing you to read the measurement display in a dark place. The analog display can show the variation tends of measurements, 1999 counts display makes the reading more accurate.
Accurate Measurement: embedded with a special IC up to 2000 counts, this IC is composed of high-precision A/D converter with high-speed digital processor, the meter features of high resolution, fast operation speed, complete software calibration, no change in long-term use in accuracy.
Compact Size: with many measurement functions and a friendly man-machine interface, the appearance of the instrument is aesthetically pleasing, very suitable for various industrial applications.
More Features: it has other functions of data hold, illumination, backlight, NCV test, low battery indicator, and more.
