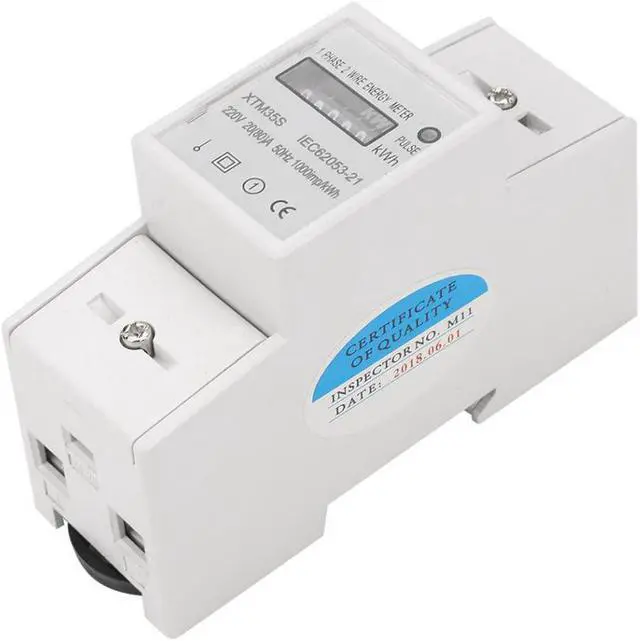

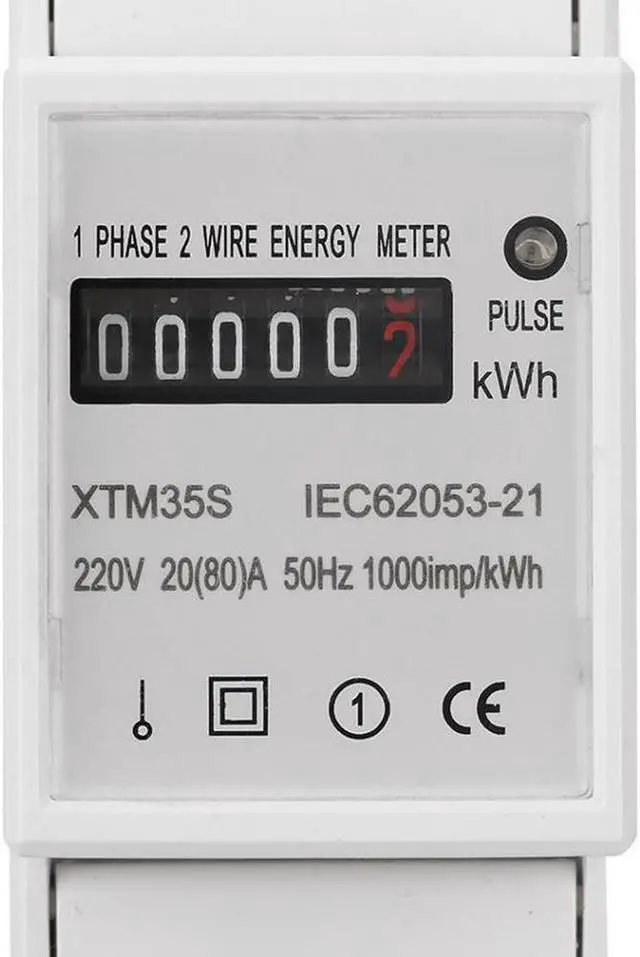

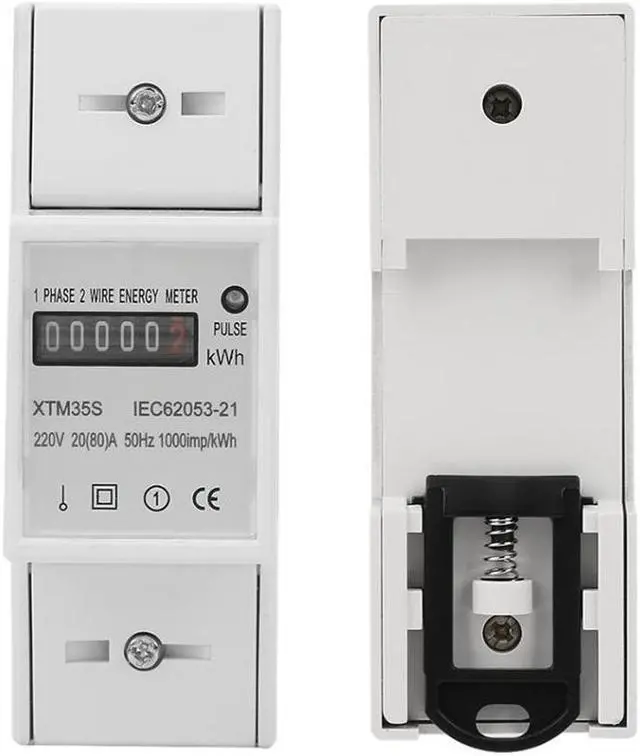

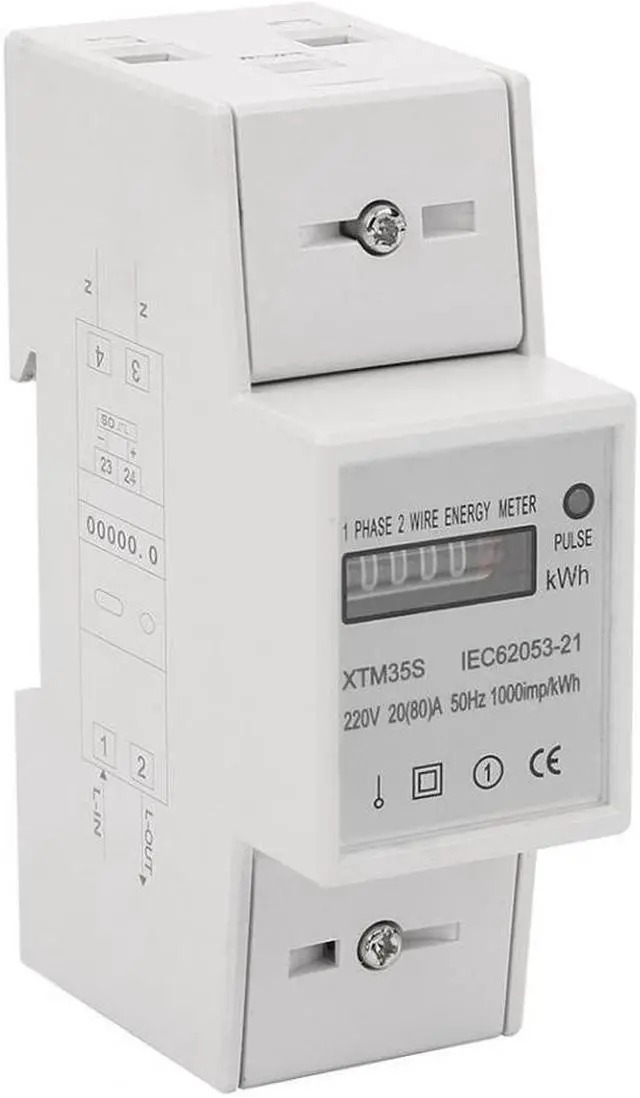

220V Digital DIN-Rail Electric Meter 1-phase 2 Wire 2P DIN-Rail Electronic Energy Meter KWh Meter(20(80)A)
- Features:35mm DIN standard rail mounted, conforming to Standards DIN EN 50022Bipolar width, complying with standard DIN43880.Can select the step motor impulse register of 5+1 digits (99999.1kWh) .Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864.Two LEDs to indicate separately the power state and the energy impulse signalMeasure the active energy consumption in one direction on single phase two wire, which is not related with the load current flow direction at all, complying with Standards IEC 62053-21.The short terminal cover is made with the transparent PC, to reduce the installation space and is convenient for centralized installation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Model:
XTM35SAccuracy: Class
1Voltage:
220VCurrent: 20 (80)
AInsulation performance: AC voltage 4kv for 1 minute, 1.2 /50us waveform impulse voltage 6kvSize: 10* 3.6 * 6.5 cm/ 3.9 * 1.4 * 2.6 inWeight: Approx.
160g/ 5.6 oz Features: 35mm DIN standard rail mounted, conforming to Standards DIN EN 50022Bipolar width, complying with standard DIN43880. Can select the step motor impulse register of 5+1 digits ( 99999.1 kWh). Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864. Two LEDs to indicate separately the power state and the energy impulse signalMeasure the active energy consumption in one direction on single phase two wire, which is not related with the load current flow direction at all, complying with Standards IEC 62053-21. The short terminal cover is made with the transparent PC, to reduce the installation space and is convenient for centralized installation.
Model:
XTM35SAccuracy: Class
1Voltage:
220VCurrent: 20 (80)
AInsulation performance: AC voltage 4kv for 1 minute, 1.2 /50us waveform impulse voltage 6kvSize: 10* 3.6 * 6.5 cm/ 3.9 * 1.4 * 2.6 inWeight: Approx.
160g/ 5.6 oz Features: 35mm DIN standard rail mounted, conforming to Standards DIN EN 50022Bipolar width, complying with standard DIN43880. Can select the step motor impulse register of 5+1 digits ( 99999.1 kWh). Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864. Two LEDs to indicate separately the power state and the energy impulse signalMeasure the active energy consumption in one direction on single phase two wire, which is not related with the load current flow direction at all, complying with Standards IEC 62053-21. The short terminal cover is made with the transparent PC, to reduce the installation space and is convenient for centralized installation.
