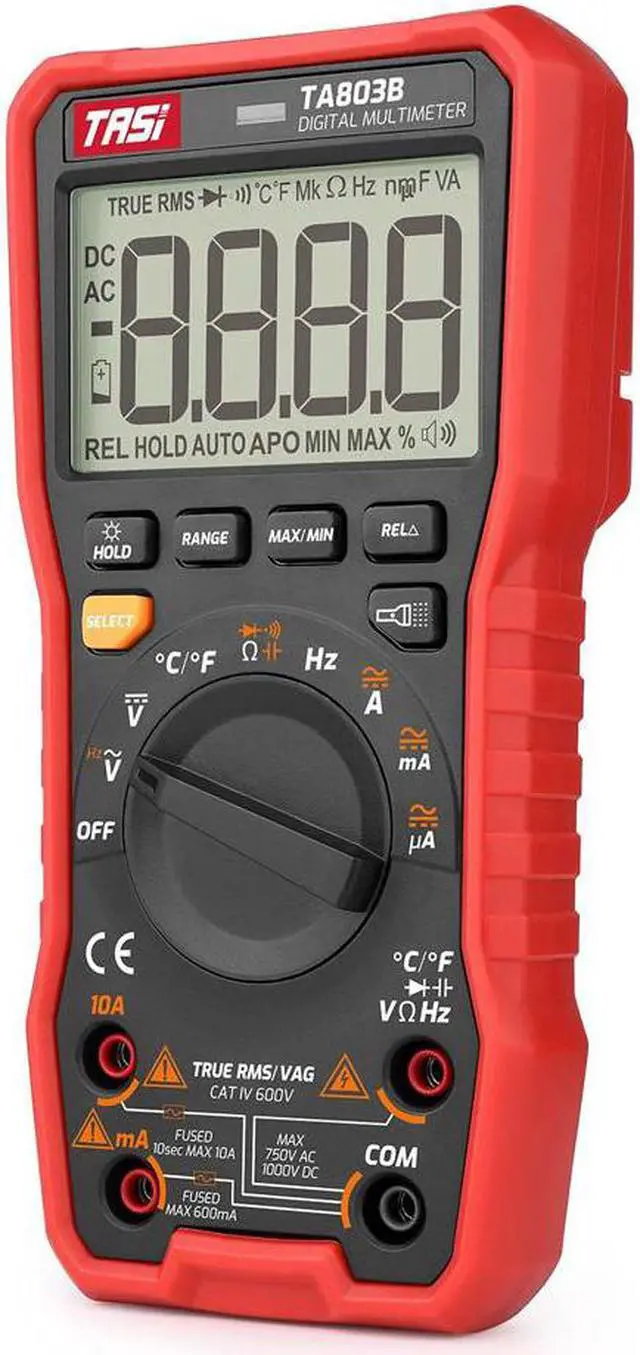

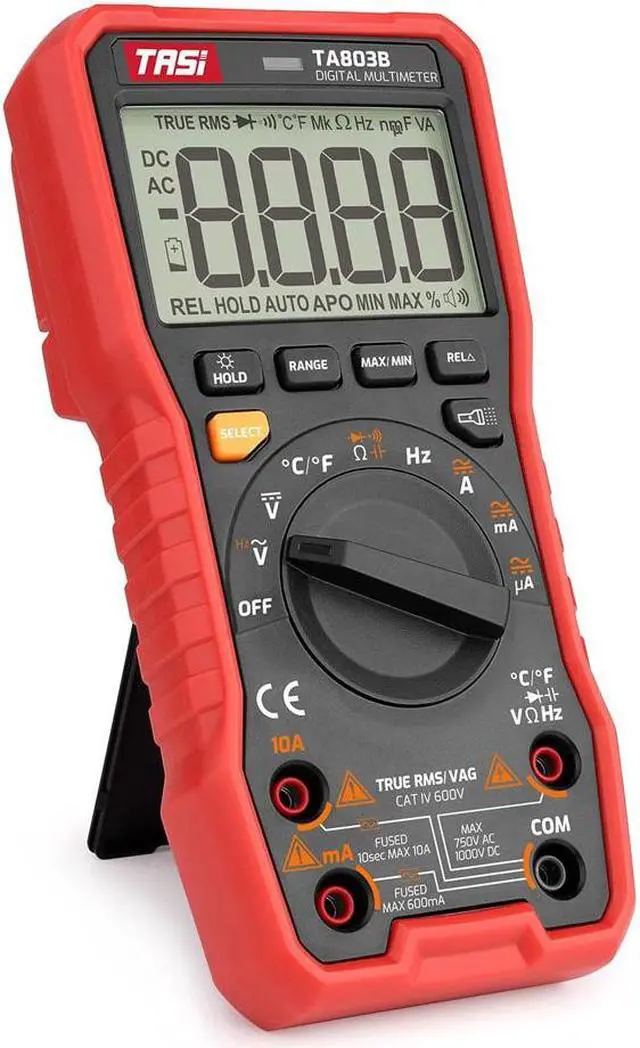

TASI TA803B Digital Multimeter 2000 Counts True RMS Universal Meter Tester Voltmeter Ammeter Amperemeter AC/DC Voltage & Current Resistance Capacitance Frequency Diodes On-off Test Flashlight Function

Specifications: DC
Voltage: 200mV/2V/20V/200V/1000VAC
Voltage: 2V/20V/200V/750VDC
Current: 20A/2mA/20mA/200mA/10AAC
Current:
20mA/2000mA/10AResistance:
200/2k/20k/200k/2M/20MCapacitance:
20nF/200nF/2F/20F/200F/2000F/20000F/Material: ABS
Display: LCD
Measurement: Double integral A/D conversionSampling
Rate: About 3 times per secondOverrange
Display:
"OL"Auto-off: 15 minutesWorking
Environment: 0~40, <80%Power
Supply: 1 * 9V 6F22 battery (NOT included)

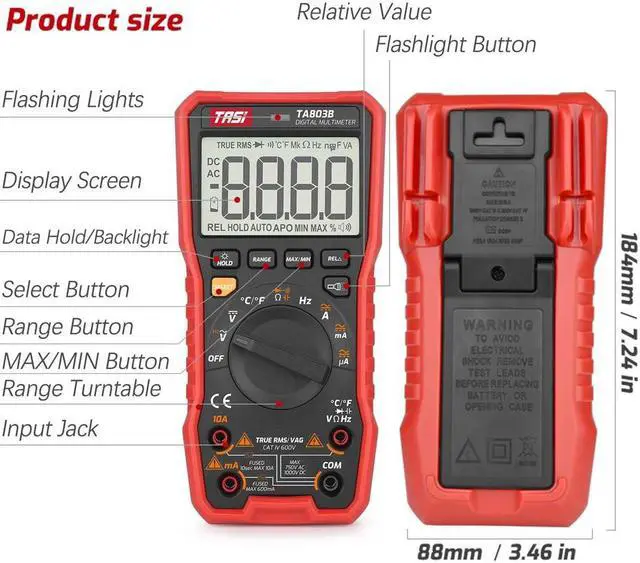

Item Size: 184 * 88 * 46mm / 7.24 * 3.46 * 1.81 inItem
Weight: 320g / 11.28 ozPackage
Weight: 520g / 18.34 ozPackage
Size: 20.6 * 13.5 * 6.4 cm / 8.11 * 5.31 * 2.52 inTA803B:
Range: Automatic rangeDiode
Test: YesMAX/MIN
Value Measurement: YesTemperature
Measurement: YesDuty
Cycle/Relative Value: YesMaximum
Display: 5999(3 5/6) bits
Features: Multifunctional

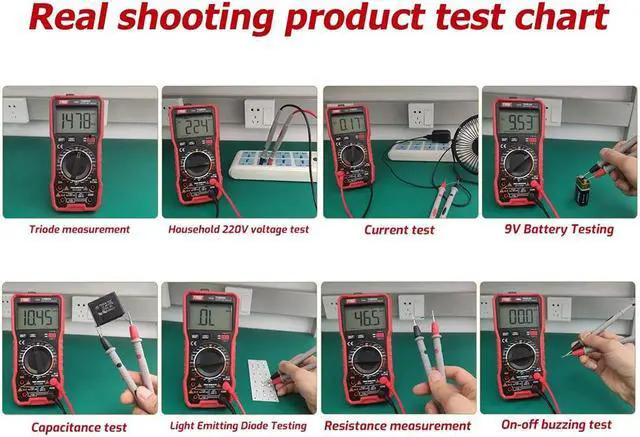

True RMS Tester: it has the basic testing function of measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency, diode, on-off buzzer.
More Features of TA803A: manual range, analog bargraph diaplay, average value measurement, diode test, triode test, NCV test, 1999 counts maximum display.

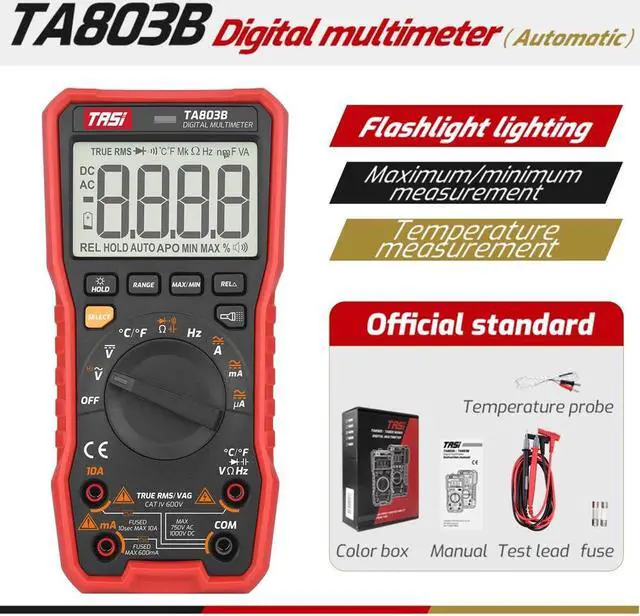

More Features of TA803B: automatic range, diode test, MAX/MIN value measurement, temperature measurement, duty cycle/relative value, 5999 counts maximum display. Backlit Bright Screen for
Clear Reading: HD bright screen with backlight ON/OFF switchable for display data clearly.
Data Hold Function: hold the measured value for conveniently checking or writing down the result.

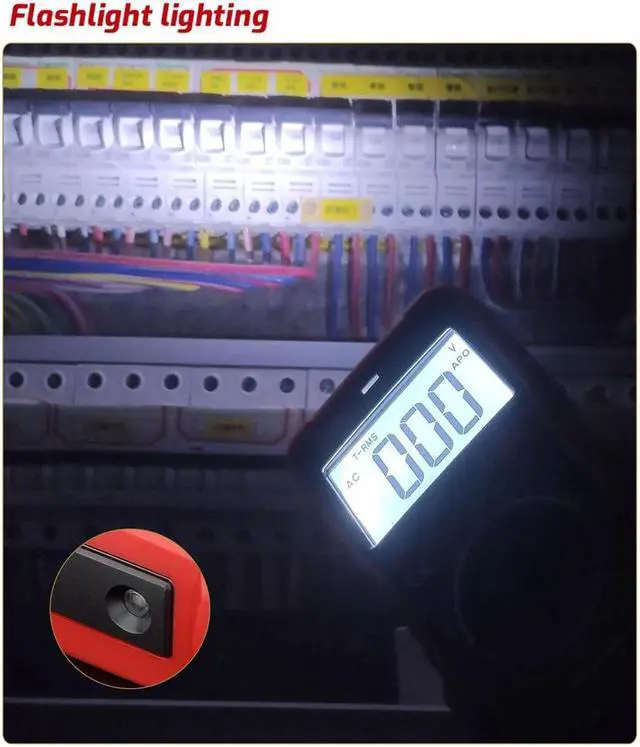

Flashlight for Ausiliary Lighting: in the dark environment, flashlight lighting can be turned on to improve the maintenance efficiency.
High Reliability & Efficiency: intelligence prevent burn machine, LED buzzer alarm with good reliability and high precision, really practical for electrical equipment testing and maintenance. Soft Rubber Protective Sleeve & Test Lead Slot Design: the tester was protect with a rubber case that is fall proof, dust-proof and shock proof. At the same time, the pen can be stored and protected to avoid accidental injury. Low Power Consumption &
Power Saving: powered by a 9V 6F22 battery (NOT included), and the tester will automatically shut down after 15 minutes of inactivity.
