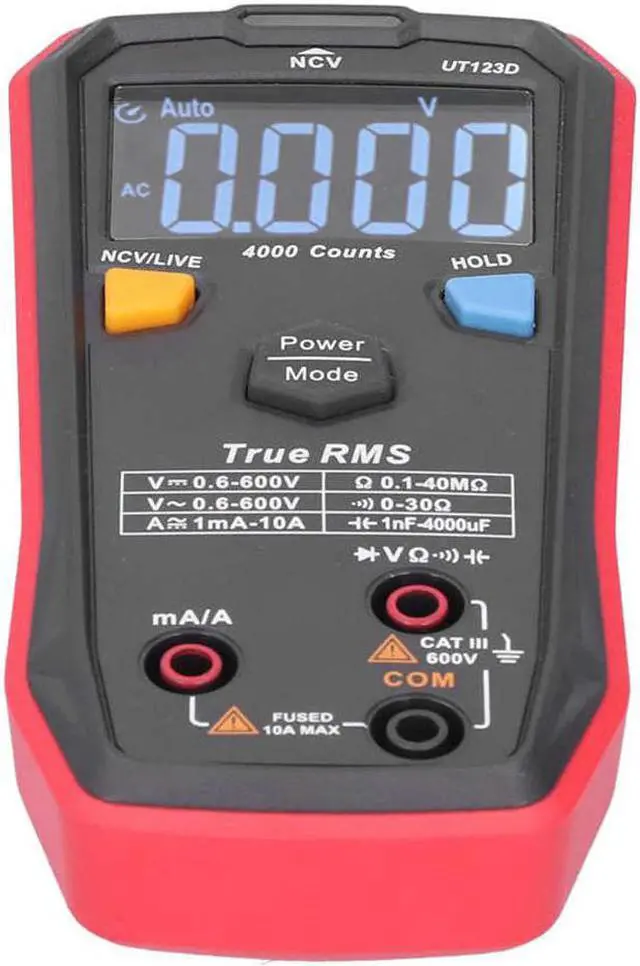

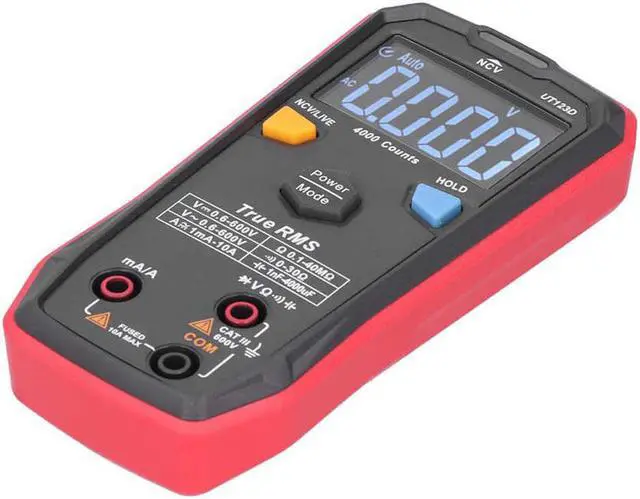

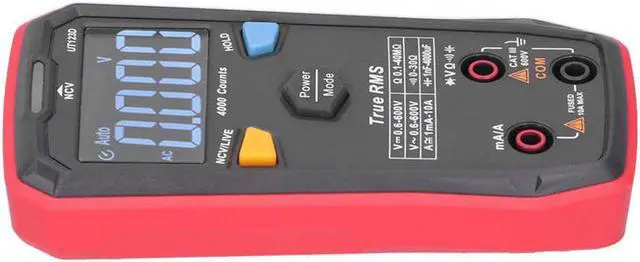

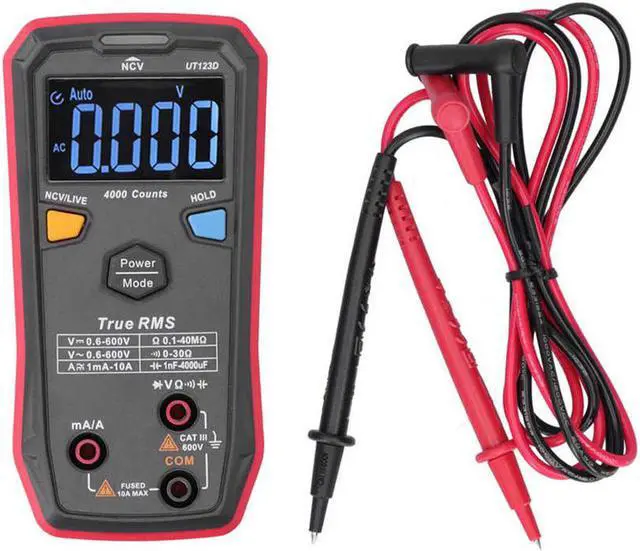

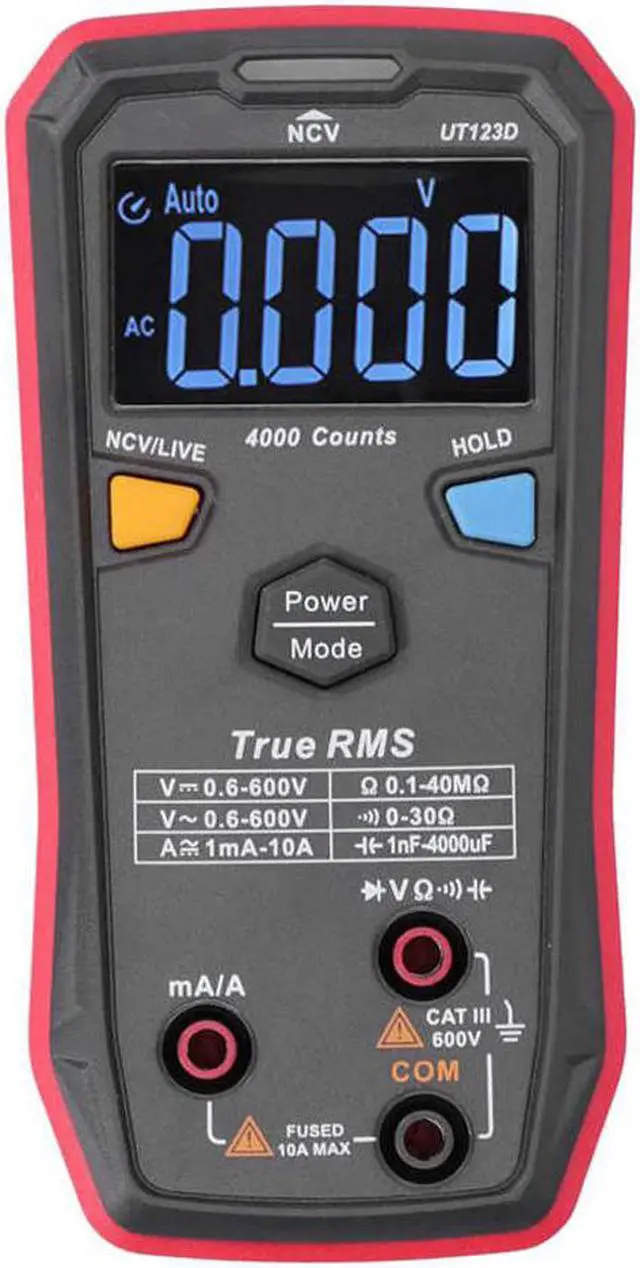

UT123D Multimeter Multi-Function High Accuracy Digital Meter for Electric Maintenance Digital Multimeter Voltmeter Ammeter

Specification: Item
Type: Digital
MultimeterMaterial: ABS
Power Supply: 2 x 1.5VAAA (Battery Not Included) RangeResolutionAccuracyOverload ProtectionAC Voltage 4.000V 0.001V ( 1.0 %+5)600Vrms 40.00V 0.01V ( 0.8 %+3) 400.0V 0.1V 600V1VDC Voltage 4.000V 0.001V ( 0.5 %+3)600Vrms 40.00V 0.01V 400.0V 0.1V 600V1VAC Current 999.9 mA 0.1 mA( 1.2 %+3)Fuser 9.999A 0.001ADC Current 999.9 mA 0.01 mA( 1.0 %+3)Fuser 9.999A 0.001AC ontinuity Test 400.000. 110 Buzzer sound, 50 Buzzer no sound600VrmsOpen circuit voltage is about 2.8V Resistance 400.000. 01( 1.0 %+2)600Vrms 4.0000K 0.001 k( 0.8 %+2) 40.000K 0.01 k 400.00K 0.1 k 4.000M 0.001M ( 1.5 %+3) 40.00M 0.01M ( 2.0 %+5)Diode Testing 4.000V 0.001V 0.5 ~ 0.8V 600VrmsCapacitance 4.000 nF 0.001 nF( 4.0 %+10)600Vrms 40.00 nF 0.01 nF 400.0 nF 0.1 nF( 4.0 %+5) 4.0000 uF 0.001 uF 40.000 uF 0.01 uF 400.00F 0.1 uF4000F1F(10%)How to
Use: 1. Long press POWER (about 2 seconds) to turn on or off. 2. Insert the test leads into the corresponding socket. 3. After power on, the meter automatically recognizes the measurement interface of the input signal. 4. Put the tip of the test lead to the circuit to be measured. 5. Observe the display and read the reading.
Feature: 1. It is a true effective value digital multimeter, and has intelligent antiburning function. 2. Intelligent operation, it is simple to use the multimeter with no need to adjust the gear. 3. Small size, easy to carry, automatic power supply measurement when power on. 4. The multimeter has a digital display screen, which the operator can read quickly and is practical. 5. The multimeter has high performance, high accuracy, and accurate measurement values.
