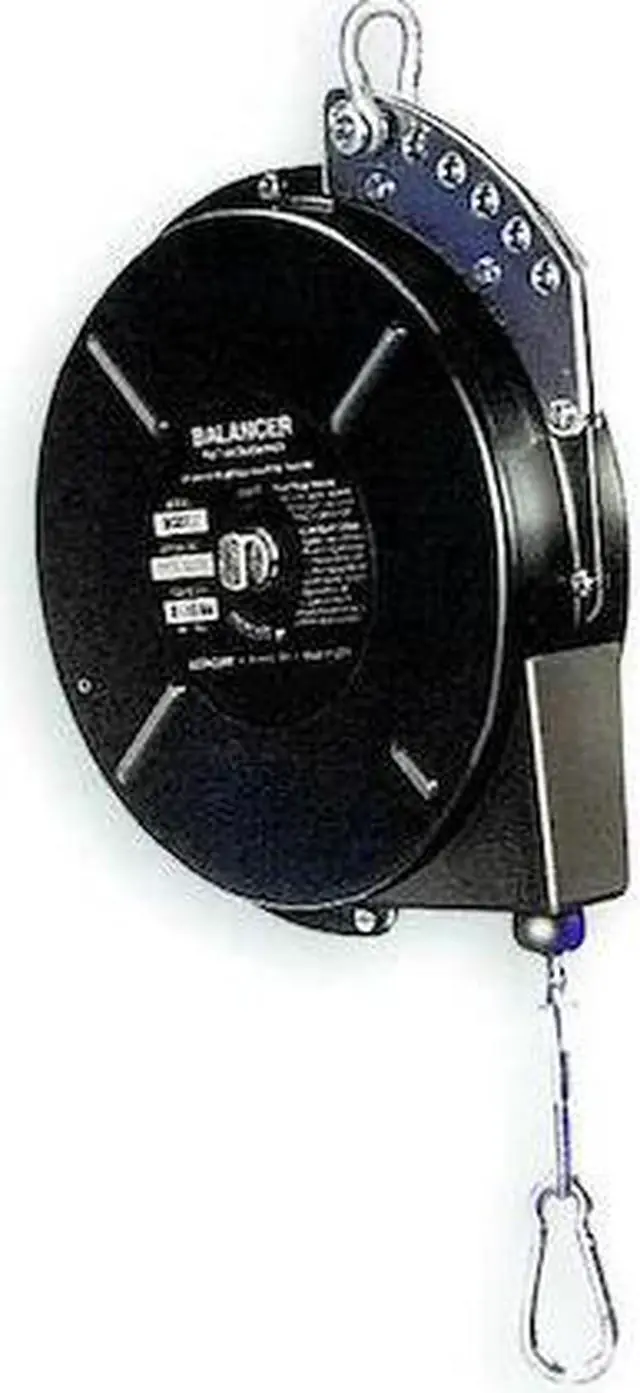

HUBBELL BG-20-L Tool Balancer,For Tool 16-23 Lb,Lock

The HUBBELL Tool Balancer is rated for use with tools weighing between 16 and 23 lb; provides suspension for tool positioning in workplace environments. Constructed with a steel housing and galvanized steel cable, this tool balancer features a ratchet locking mechanism that allows the user to secure the position of suspended tools as needed. The unit mounts via a reinforced hanging bracket with forged clevis for ceiling installation.

Key Features of the HUBBELL Tool Balancer:

• Cable Material: Galvanized steel cable supports the specified weight range of attached tools.


• Lock Mechanism: Ratchet locking system allows adjustment of tool position within operational parameters.


• Mounting: Reinforced hanging bracket with forged clevis is compatible with ceiling installation; additional holes are available for optional chain attachment.


• Tension Adjustment: Wrench spring tension adjustment accommodates different tool weights within the rated range (1623 lb).


• Includes: Adjustable cable stop and tool clip included for attaching compatible equipment as specified by manufacturer guidelines.


• Cable Length: 8 ft


• Drum Type & Reel Mount: Standard drum type with suspension shackle mount
