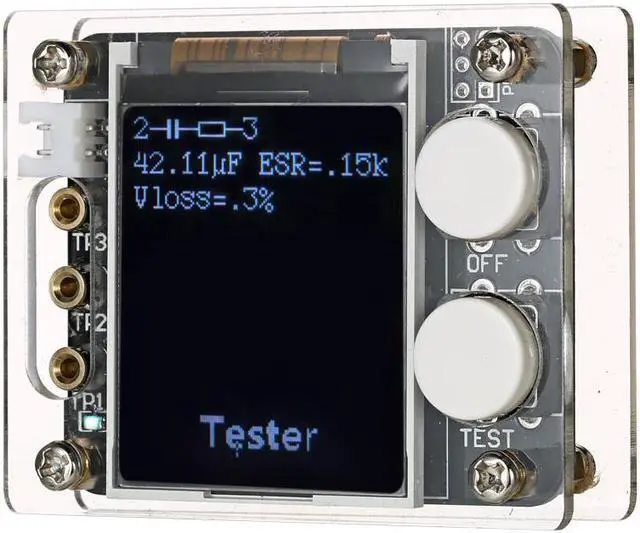

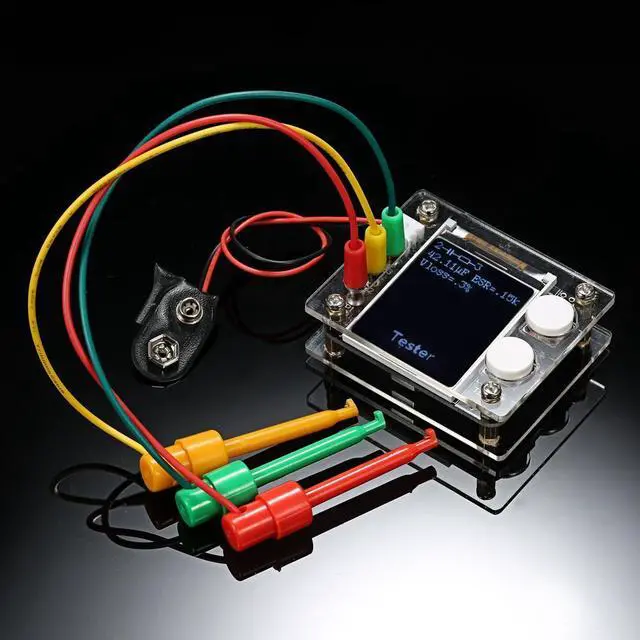

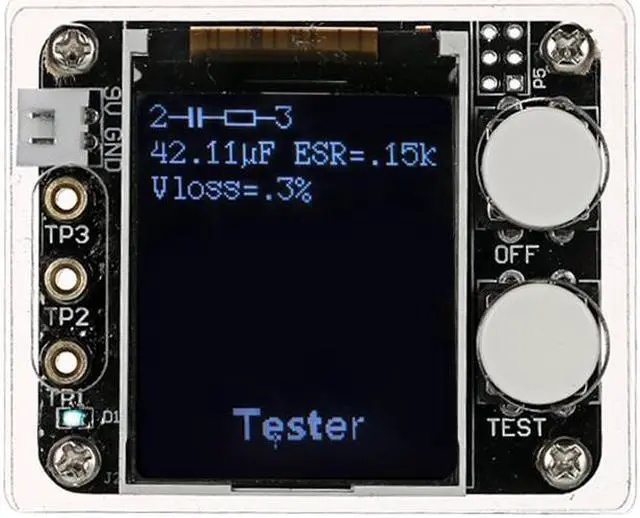

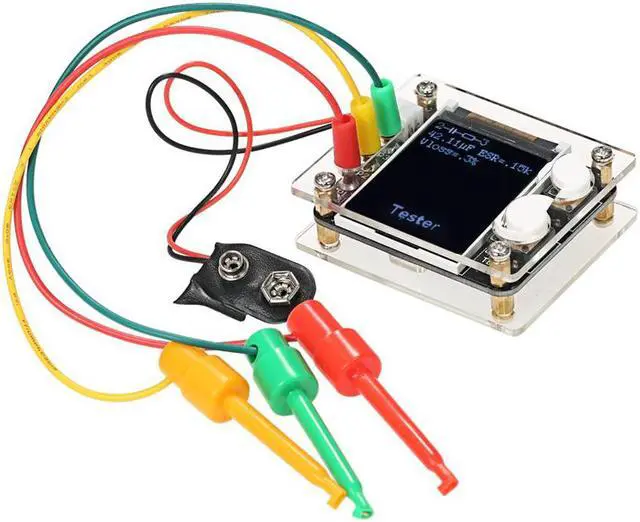

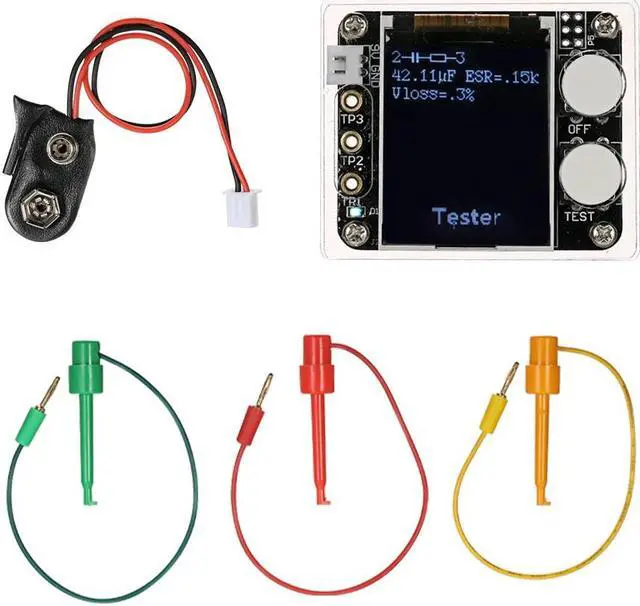

GeekTeches Multifunctional 1.8" TFT LCD MK328 Transistor Tester Diode Capacitance ESR Voltage Frequency Meter SMT Soldering

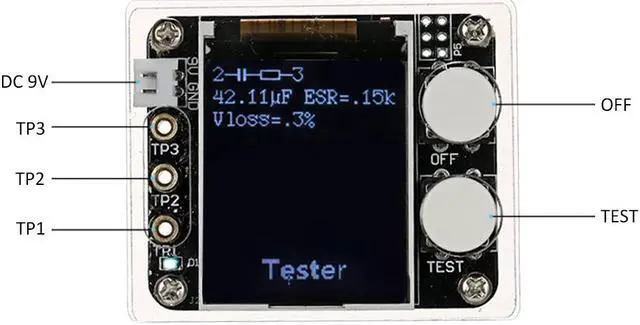

Specifications:Color: MulticolorMaterial: PCB + FR-4 Epoxy BoardType: Assembled Finished Product Display: 1.8" TFT Color LCD DisplayResolution: 128X160Model: GeekTeches MK328Power Supply: 1 * 9V Battery(Not Included)Current: Approx. 30mAResistance Measurement: Max. 50MResistance Resolution: 0.01Capacitance Measuring Range: 25pF~100mFInductance Measuring Range: 0.01mH~20HCapacitance Resolution: 1pFFrequency Range: 1Hz~2MHzDC Voltage Measurement: Up to 50VTest Ranges: Inductors, Capacitors, Diodes, Dual Diode, Mos, Transistor, SCR, Regulator, LED Rube, ESR, Resistance, Adjustable PotentiometerP4: 2.54-2PIN White Seat, for Input 7~12V DC VoltageOFF: ON/OFF Switch, Reset Button (S1)TEST: Test Adjustment, Operation Button (S2) for One-button Operation of the Entire Circuit BoardProduct Size: 61 * 52 * 22mm / 2.40 * 2.05 * 0.87inScreen Size: 35 * 38mm / 1.38 * 1.50inProduct Weight: 38g / 1.34ozPackage Size: Approx. 13 * 8 * 4cm / 5.12 * 3.15 * 1.57inPackage Weight: 50g / 1.78oz Features:Digital 1.8" TFT LCD display for easy readings, can display measured data and graphics.Use 9V battery(not included) for power supply and Single-button operation with automatic shutdown for reducing power consumption.Automatic detection of NPN, PNP bipolar transistor, N-channel, P-channel MOSFET and JFET, diode, dual diode, P-IGPT, thyristor, double thyristor and so on. Support for bipolar transistor current amplification factor and base-emitter turn-on voltage test.Through the turn-on voltage and current amplification factor, you can determine the Darlington triode.Can test the gate threshold voltage of the MOSFET, the gate capacitance, and the drain-source on-resistance RDSon at 5V gate voltage.Support simultaneous measurement of two resistors, data in four decimal format display.Support simultaneous measurement of two diodes, additional display diode voltage drop.Resistance measurement maximum resolution 0.01, can be measured up to 50M.Capacitor can be measured with 25pf~100mF capacitance range and 1pF resolution.Automatically test the pins of a component and show on the display.For the following 2100 resistor while measuring its inductance measuring range from 0.01mH~20H.Can be used as signal generator and frequency meter: frequency range from 1Hz~2MHz.Notice: 1. Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter.2. When testing the components soldered on the circuit board, be sure to disconnect the power supply on the circuit board and leave no residual voltage on the test equipment.
