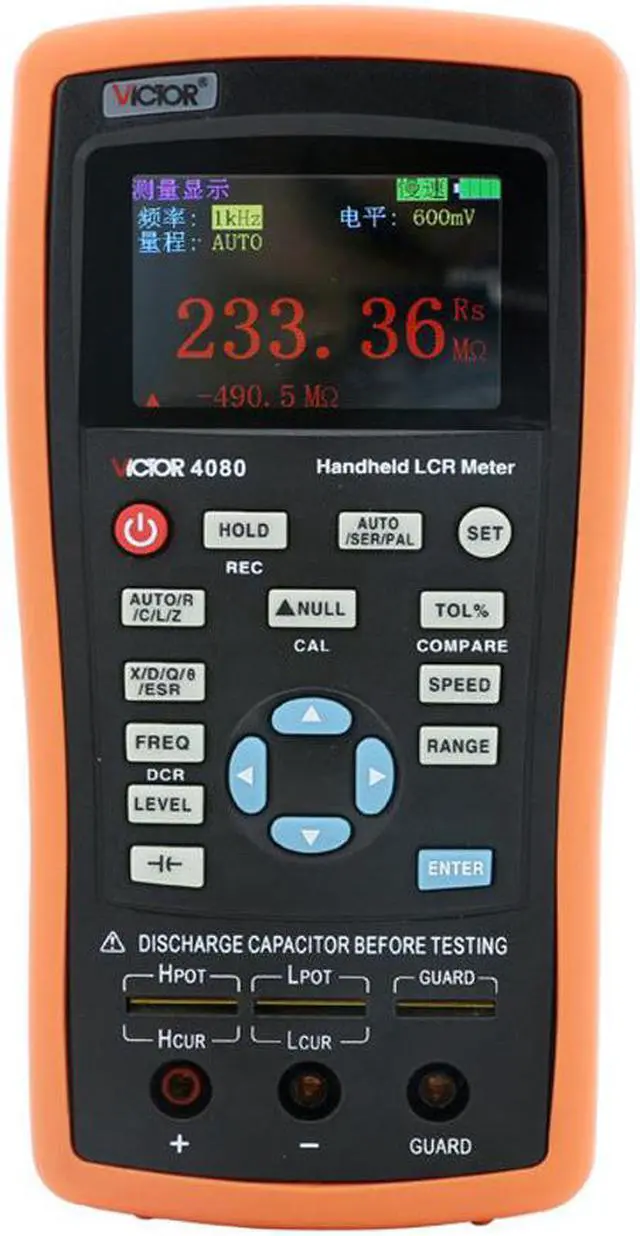

VICTOR VC4080 LCR Digital Inductance Capacitance and Resistance Meter 0-2000H 0-20mF 0-20MOhm

Feature: Technical indicators Display 2.8-inch TFT LCD screen Displays the number of digits The main parameters: 5 Secondary parameter: 5 bits Measurement parameters The main parameters: L / C / R / Z Secondary parameter: X / D / Q / ESR Measuring range (L) 0-2000H Measuring range (C) 0-20mF Measuring range (R) 0-20M Measurement speed 1 time / second (slow seconds), 2 times / second (medium speed), 4 times / second (fast) Correction function Open-circuit correction, short-circuit correction Screening function Screening limit range can be set 1% -50%, where the fixed point of 1%, 5%, 10%, 20% The deviation measurement is used to compare the percentage deviation between the nominal value of the set element and the set value Other adjustment backlight brightness, USB Device, automatic shutdown time can be set Package includes: 1 * VC4080 Digital LCR Multimeter
