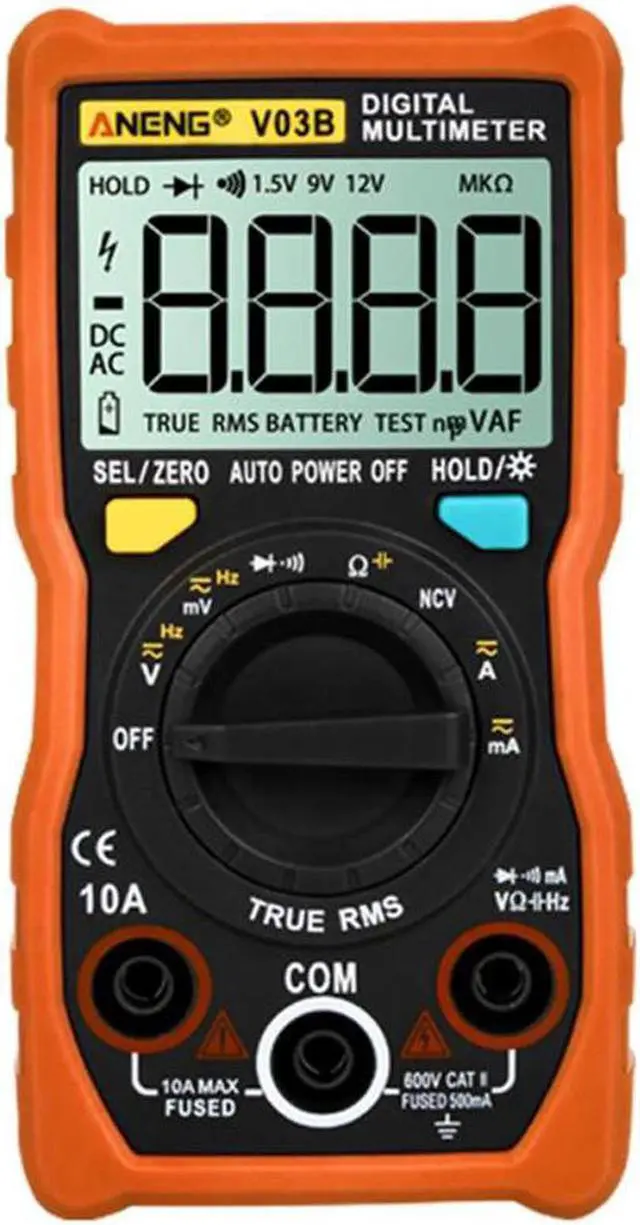

ANENG V03B LCD Analog Digital Multimeter Tester 4000 Counts Multimetro Esr Meter Multimeter Auto Power Off Peak Auto Meter - Orange

Matters needing attention:
1. Do NOT exceed the maximum value indicated in the Specification;
2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, the Continuity Mode, or the Temperature Mode;
3. Do NOT use the product when the batteries or the battery cover is not placed properly;
4. Turn off the product and remove the test leads from the test points before changing batteries or fuses.
5. Do not input voltage exceeds 36V DC or 25V AC when you are at the setting of measuring current.
Brand Name: ANENG
Model Number: V03B

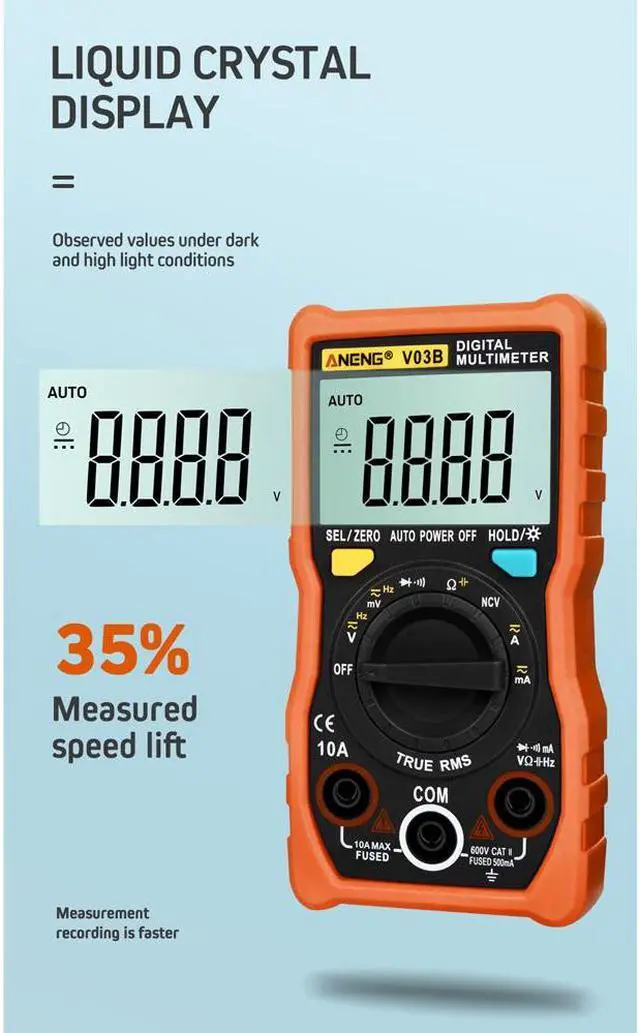

Display (LCD): 4000 counts
Operating Temperature: 0 - 40
Operating Humidity: 75%RH
Storage Condition: -20~60
Storage Humidity: 80%RH
DIY Supplies: Electrical
Operating Mode: Automatic DC
Voltage Range: 4V/40V/400V/600V, 40mV/400mV( 0.5 %+3)AC
Voltage Range: 4V/40V/400V/600V, 40mV/400mV( 1.0 %+3)AC
Current Range: 16.79 17.53DC
Current Range: 4A/10A/40mA/400mA ( 1.2 %+3)Measuring
Resistance Range: 400/4k/40k/400K/4M/40M Ohm ( 0.5 %+3)Frequency
Range: 4/40/400/4K/40K/400K/10M Hz (1%+2)Capacitance
Range: 4nF/40nF/400nF/4uF/40uF/400uF/4mF ( 3.5 %+4)Display

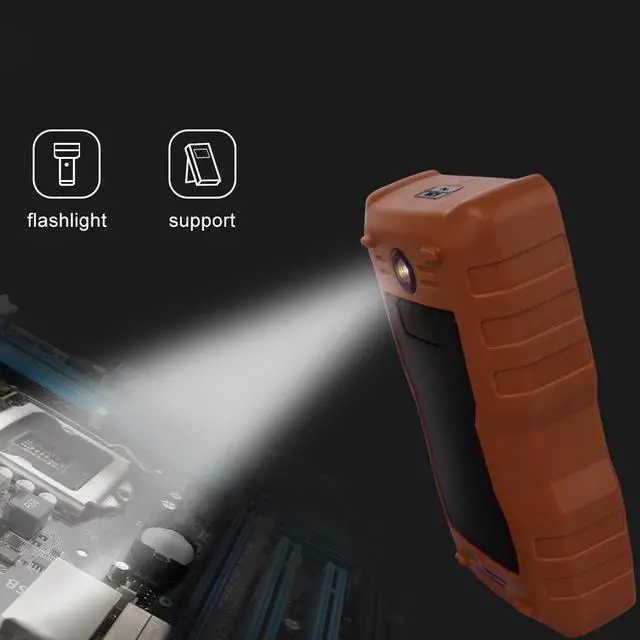

Type: Digital Display Flash Light, Back light, Auto-power Off NCV test, TRUE-RMS, Data
Hold Sample Rate: 3 times per second
