Multi-functional LCD Network Cable Tester Wire Tracker PoE Checker Inline PoE Voltage and Current Tester with Cable Tester with Illuminate Function

Specifications:
Material: ABS
Package Weight: 500g / 17.64 ozPackage
Size: 23 * 17 * 5cm / 9.06 * 6.69 * 1.97 inEmitter
Parameters & Functions: LCD
Display: 128*64 dot-matrix with backlightPower
Supply: 3 * 1.5V AAA battery (NOT included) Low
Battery Warning: 2.7VA uto-off
Time: 15min/30min/60min/OFF
Voltage Protection: DC48V, 5mAMax.
Working Current:
<150mASize: 130 * 70 * 28mm / 5.12 * 2.76 * 1.10 inWIREMAP
TEST: Cable
Type: CAT5e, CAT6, CAT6a (STP & UTP)Test with
Switch Directly: YesMax.
Range: 600mLENGTH
TEST: Cable
Type: CAT5e, CAT6, CAT6a (STP
& UTP)Test Range: 2.5
~200mAccuracy: 1.6 mBreakage
Location: YesSCAN
TEST: Cable
Type: CAT5e, CAT6, CAT6a (STP & UTP)Max.
Signal Voltage:
91Vp-pFrequency: 130KHzAnalog/Digital
Mode: YesMax.
Range: 600mPOE
TEST: Test
Range: DC5~60V standard / non-standard
PoE switchVoltage Display: YesPSE
Type:
Standard: IEEE 802.3 af/at; Non standardReceiver
Parameters: Sensitivity
Adjustable: YesAC
Voltage Detecting:
YesLamp: YesBattery
Type: 1 * 9V battery (NOT included) Low
Battery Warning: 60.5VM ax.
Working Current:
<100mASize: 210 * 43 * 27mm / 8.27 * 1.69 * 1.06 inRemote
Parameters: Wiremap
Port: RJ45Voltage
Protection: DC48V, 5mASize: 65 * 37 * 23mm / 2.56 * 1.46 * 0.91 in The tester has three modes of digital mode, analog mode and PoE mode for options to track cable easily, which means it is equipped with the most powerful cable location technologies for any work environment. Besides, it includes cable length measurement, cable faults testing, PoE testing, hub blink and NCV function, all of these makes it a must-have tool for cabling engineers.

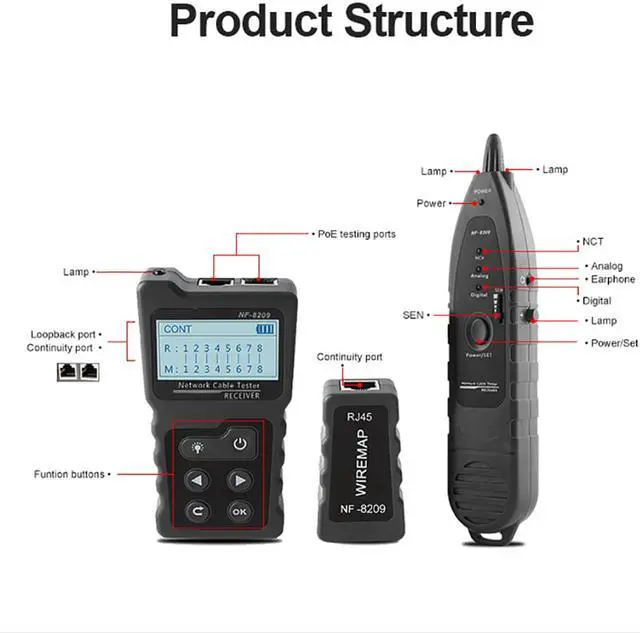

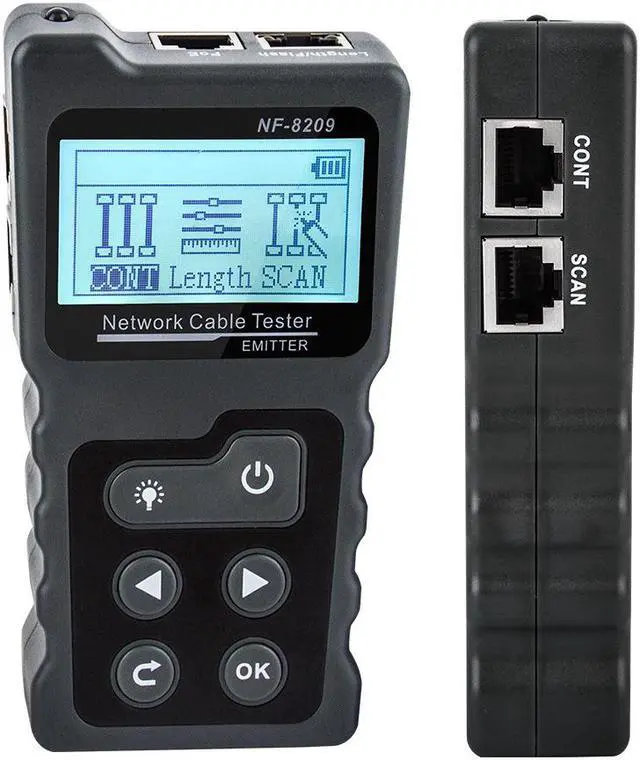

Features: Emitter

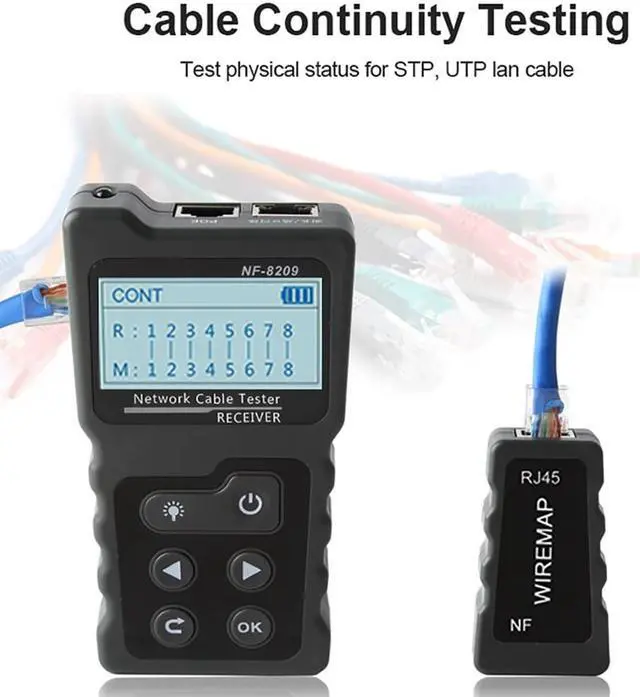

Testing Function: including cable continuity testing, cable length measurement, cable scan, and PoE test.

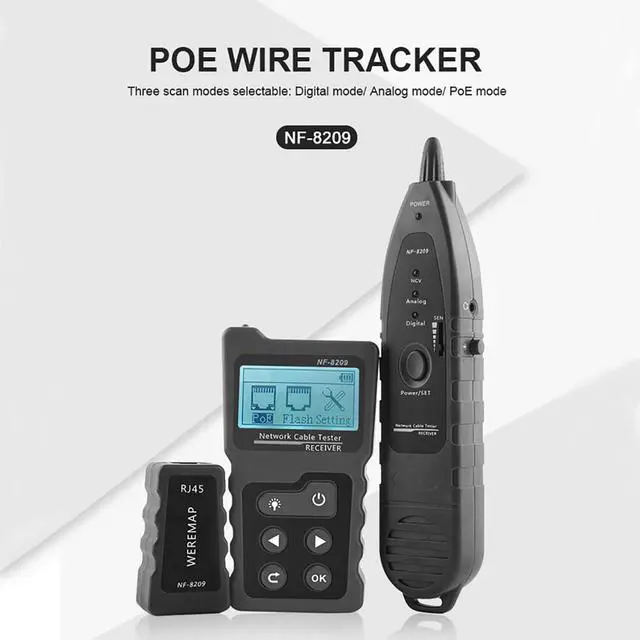

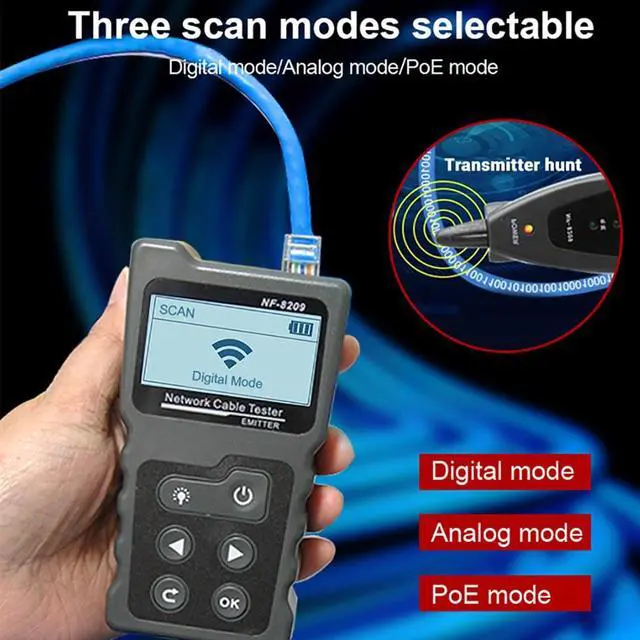

Three Scan Modes Switchable: it has digital mode, analog and PoE mode for options to track cable.
PSE Type Distinguish: identify the type of PSE, it is AF or AT standard.
POE Test Range: test the information of the DC5~60V standard / non-standard PoE device.

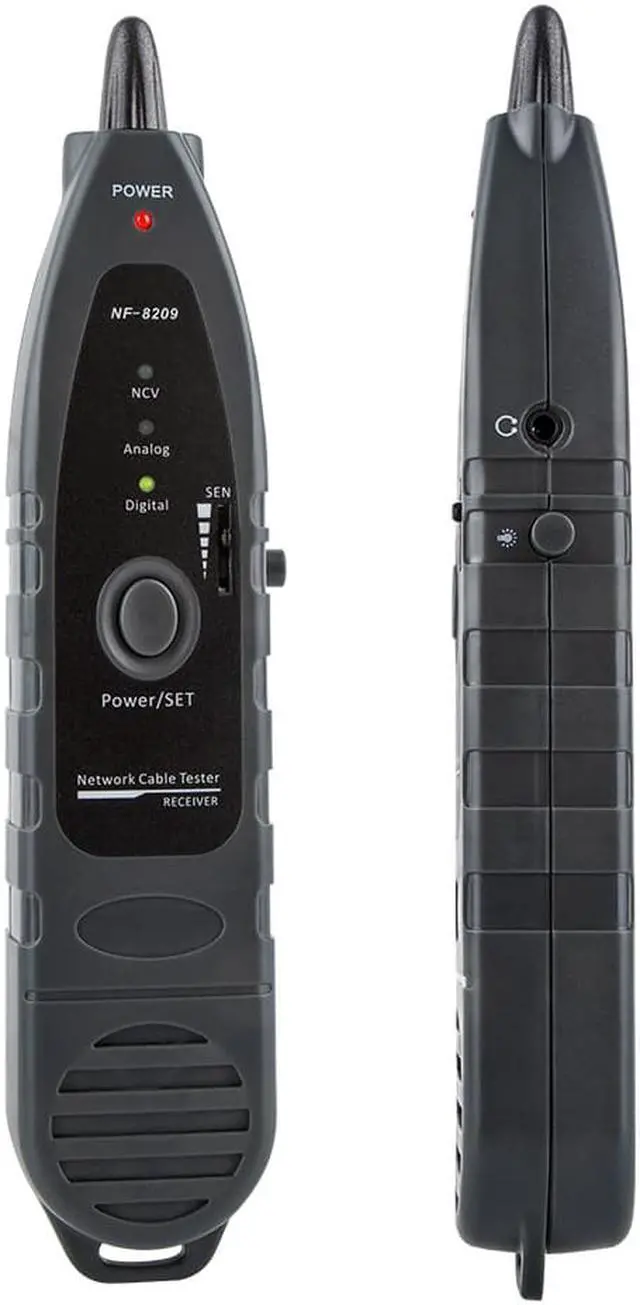

Non-contact Voltage Detecting: the receiver can be used to detect the AC voltage of household electrical wiring.
Illuminate Function: both the emitter and the receiver designed with lamp for auxiliary lighting up the working areas during operation.
Other Settings: setting language(Chinese/English), backlight time(15s/30s/60s/on/off), auto-off time(15mins/30mins/1h/off), contrast adjustment and version checking.
