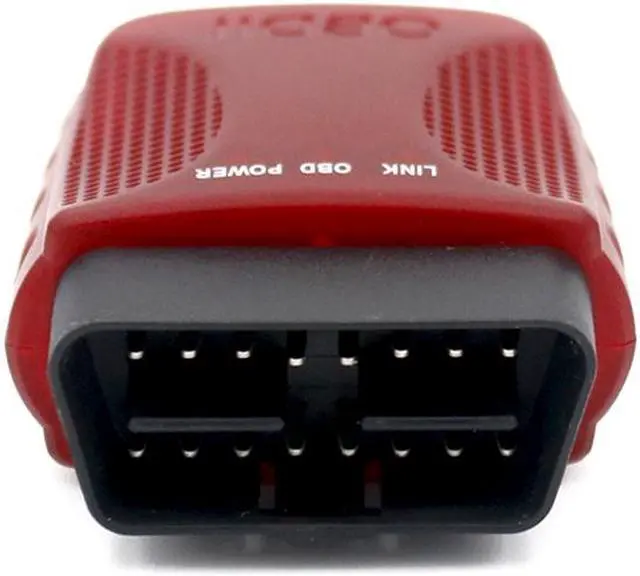

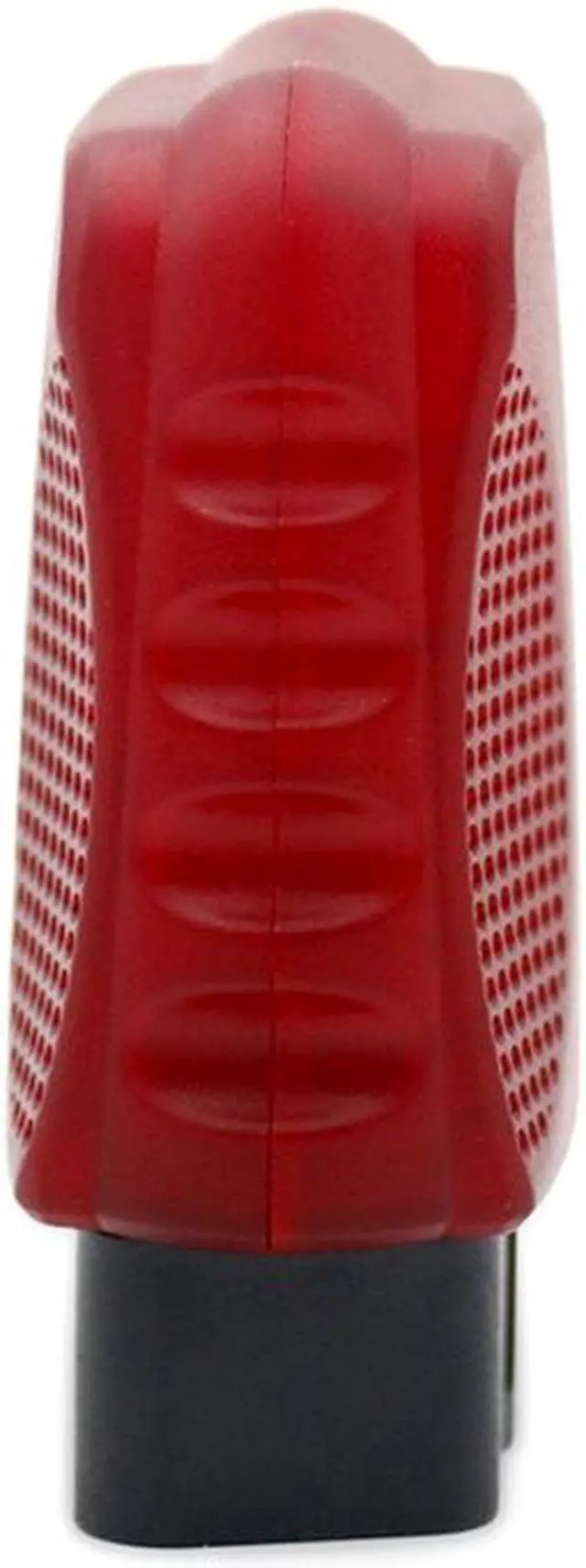

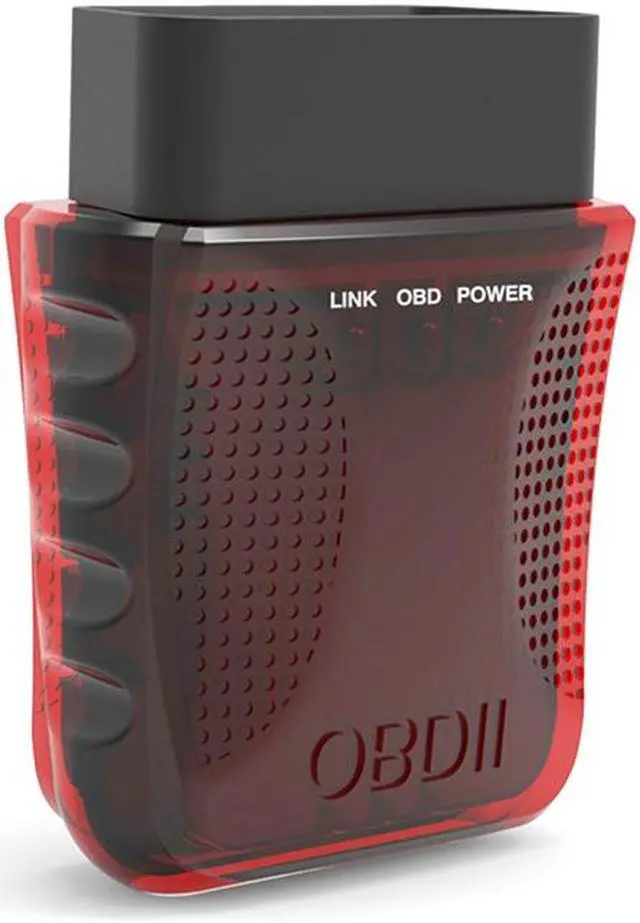

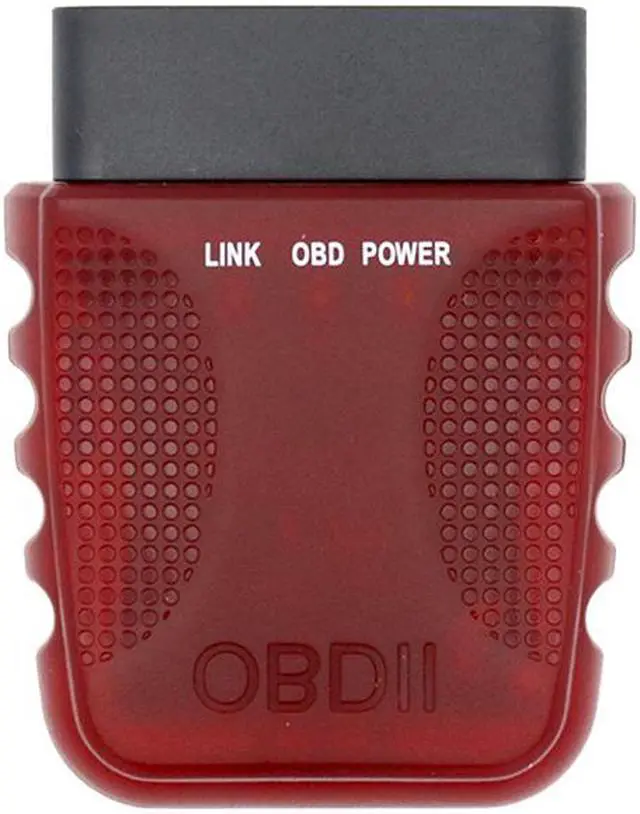

V017 WIFI OBD II Scanner Car Diagnostic Tool Battery Voltage Detection For 95% OBD II Compliant Vehicles 16-pin

Specifications: General
specifications: Communication
mode: WiFiMain
control chip: mm32l073Software
platform: Android / IOS
Working voltage: 9V
~ 16VWorking current: 65mA
standby current: 45mAWorking
temperature: - 40 C ~ 85
C working humidity: less
than 60%Product size: 57.2 mm * 47mm * 24.5 mmPackage weight: approx.
39gSupport agreement: SAE J1850 PWM ( 41.6K baud)SAE J1850 VPW ( 10.4K baud)ISO9141-2(5 baud init, 10.4K baud)ISO14230-4 KWP (5 baud init, 10.4 Kbaud)ISO14230-4 KWP (fast init, 10.4 Kbaud)ISO15765-4 CAN (11bit ID, 500 Kbaud)ISO15765-4 CAN (29bit ID, 500 Kbaud)ISO15765-4 CAN (11bit ID, 250 Kbaud)ISO15765-4 CAN (29bit ID, 250
Kbaud) Features: Diagnose and clear enginefoult codesOne-click query of battery voltageOne-click query fault codeSupport 7 languages supportedEasily read and clear fault codesOne key quick search, dynamic data flowRead I / M status, vehicle informationSmall size, the highest chip integration, with independent appearance patents. CE, FCC, ROHS certificationThe software can perform the following operations: Read the error diagnosis -- General and manufacturer specific, and display their meaning (the database has more than 3000 general code titrators) Clear error code and turn off milDisplay current sensor data, including attentive rpm, The calculated load value, coolant temperature, fuel system status, vehicle speed, short-term fuel condition, intake manifold pressure, injection lead time, intake temperature, air flow speed, oxygen detection voltage related to the absolute position of throttle valve and short-term fuel condition, fuel system status, fuel pressure, fuel consumption detection and many other dataFuture features of software: Data chart shows and records logs, freeze frame data, continuous and discontinuous oxygen detection results.
Compatible software: Window
version: scanmaster elm, ScanTool. net, pcmscan, etc;
Android version: torque, dashcommand, OBD car doctor, auto doctor, mini OBDII, Eobd, etc;
IOS version: Auto doctor, OBD car doctor, dashcommand, Eobd, etc;
Symbian version: obdscopeCompatible
platforms: Software
support platform: Windows XP, Windows 7 / 8 / 10, Android, IOS, Symbian and other systems.
