DC DC Buck Converter CC CV Power Module 0.6-30V 5A Adjustable Regulated Power Supply Voltmeter Ammeter CNC Color Screen 80W

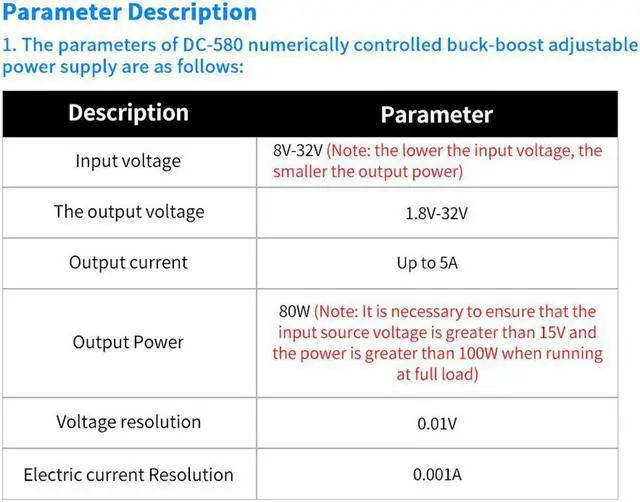

Specifications:
Material:
ABS+metalColor: blackInput
voltage: 8V-32V (the lower the input voltage, the smaller the output power)Output voltage: 1.8V
-32VOutput current: up
to 5AOutput power: 80W (it is necessary to ensure that the input source voltage is greater than 15V and the power is greater than 100W when running at full load)
Voltage resolution: 0.01VC
urrent resolution: 0.001AI
nput anti-reverse: YES
Output anti-backflow: YES
Output overvoltage protection (OVP): 1.8 -32V custom adjustment, default
35VOutput overcurrent protection (OCP): 0-5A custom adjustment, default 5AOutput over power protection (OPP): 0-80W custom adjustment, default 80WOutput over temperature protection (OTP): 45-120 custom adjustment, closed by defaultOutput timeout protection (OHP): 0-100h custom adjustment, closed by defaultPower on default (ACQ): off

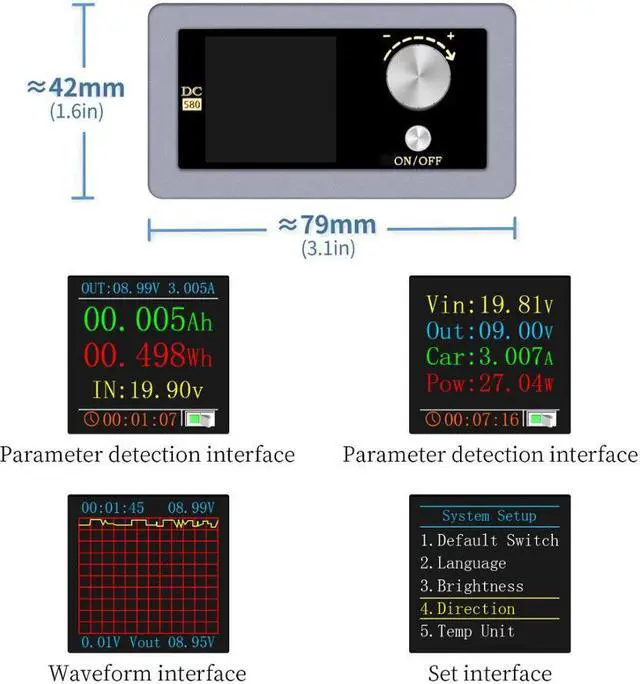

by defaultItem size: 79 * 42 * 24mm / 3.1 * 1.7 * 0.9 inPackage size: 79 * 50 * 42mm / 3.1 * 2.0 * 1.7 inPackage weight: 46g / 1.6 ounce

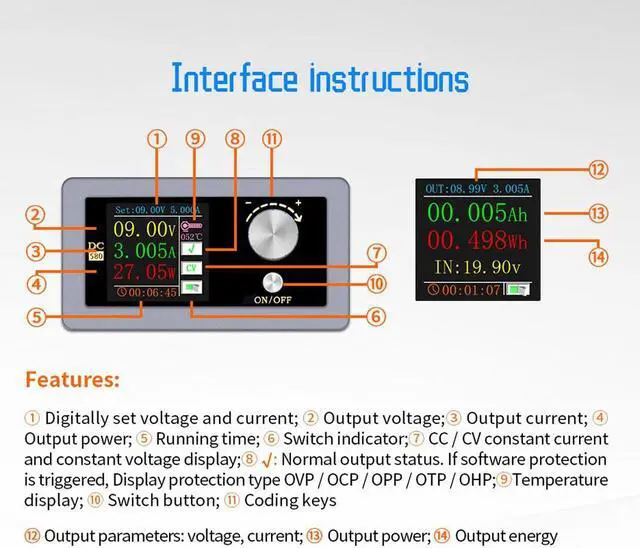

Features: DC-580 NC step-up and step-down adjustable power supply is small in size, powerful in function, stable in performance, high in accuracy, and has various humanized system settings. Adopt 1.44 inch LCD high-definition display screen, display a variety of data on one screen, the page is concise and rich.
Intelligent temperature control system: when the product temperature is greater than 45 or the output current is greater than 1A, the fan will automatically start. The fan will automatically turn off when the conditions are not met.
Software protection system: when the parameter exceeds the software protection set value, the product will automatically stop working, and the working status indicator box on the main interface will show a code that stops working due to the corresponding software protection. After the startup state is met, just press the key to reset and restart.

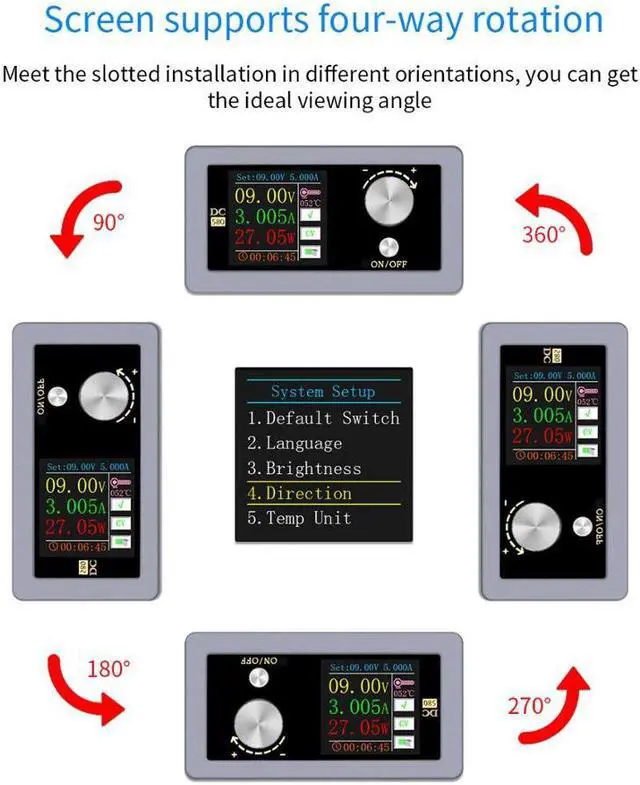

Screen supports four-way rotation: meet the slotted installation in different orientations, you can get the perfect viewing angle.
